Attaching the output bin
1
Remove the output bin
from its packing box.
Also remove the small
plastic bag that contains
two bolts and an Allen
wrench.
2
With the output bin
folded at its joint, hook
the short end (
a
) over
the back (upright) rail
(
b
) of the printer.

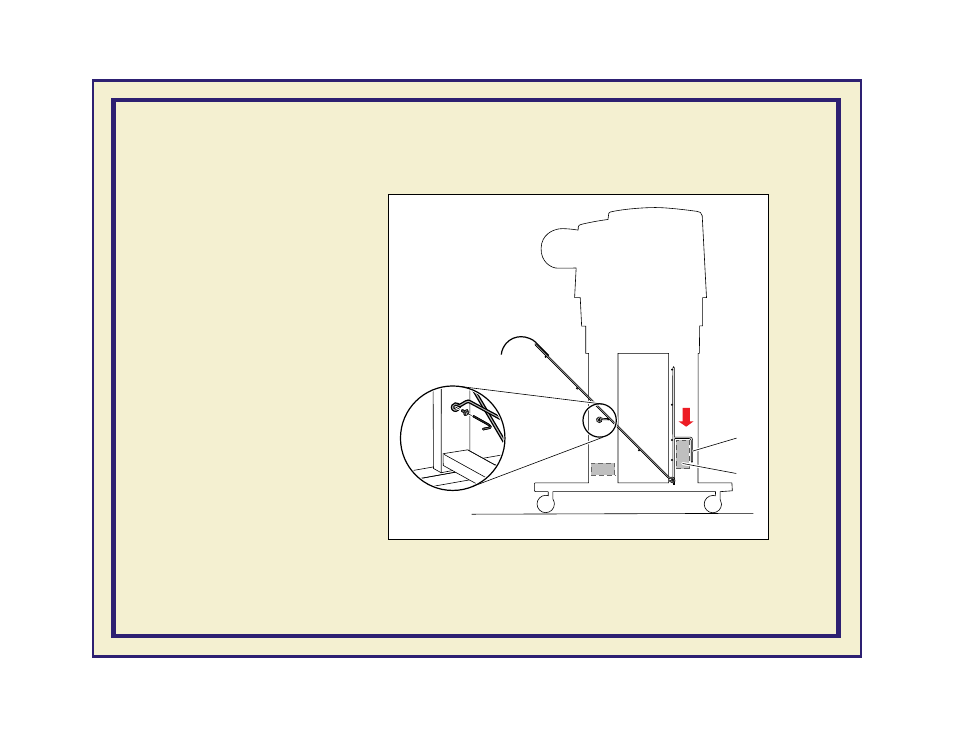

3
Align the openings of
the long end of the
output bin with the
openings in the front
legs of the printer. Insert
a bolt into the opening on
each front leg; tighten them with the Allen wrench.
b
a
3
2
9480-124
