Chapter 2 Basic Operations
Removing the Magazines
44 Sun StorEdge™ L25 Tape Library and Sun StorEdge™ L100 Tape Library User’s Guide

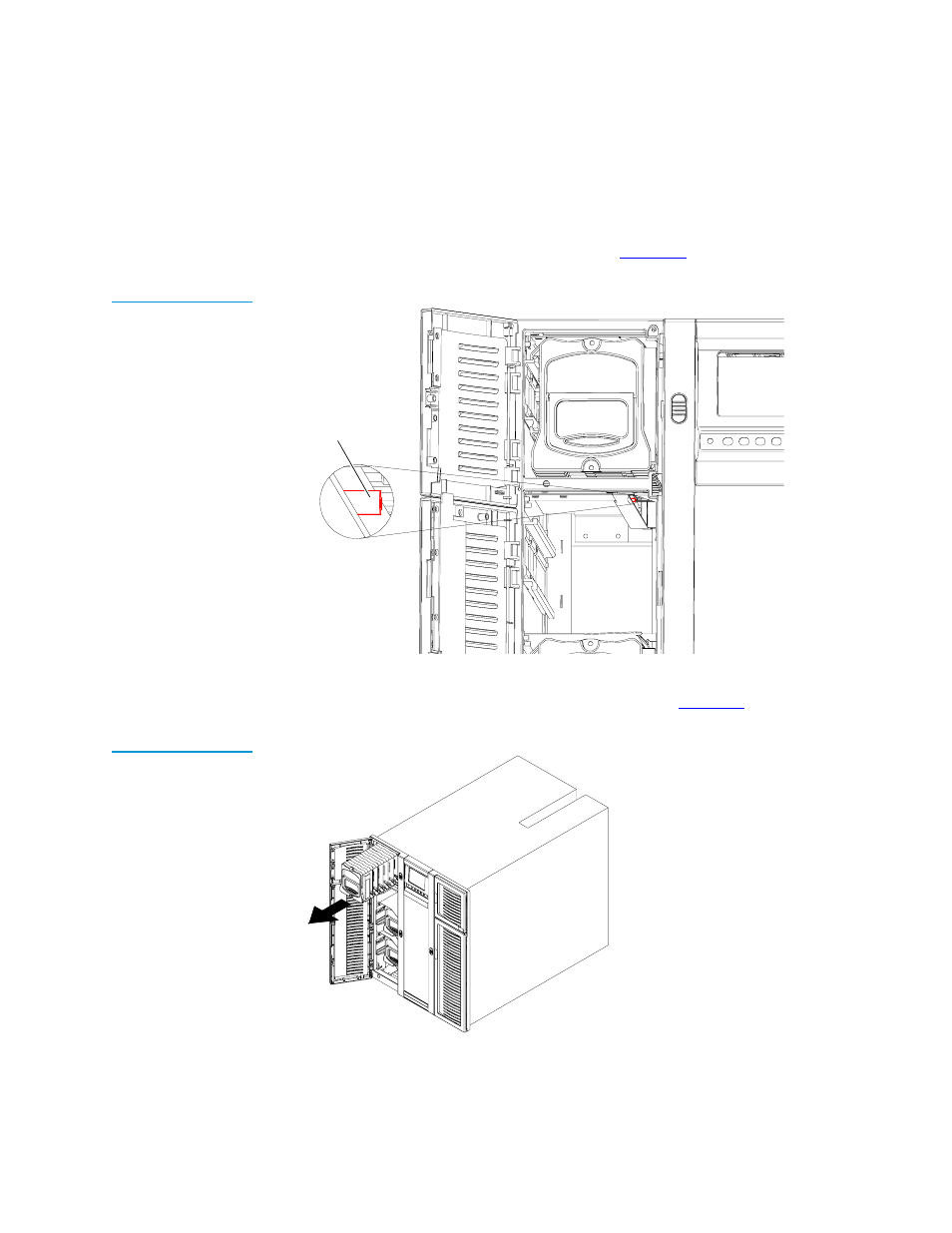

f Reach into the library underneath the level 1 left magazine
and press up on the release latch (see figure 28 ).
Figure 28 Pressing
the Release Latch
g While holding the release latch, pull the level 1 left
magazine forward and out of the library (see figure 29 ).
Figure 29 Removing
the Level 1 Left
Magazine
Release latch
