C6000n User’s Guide

94

8.

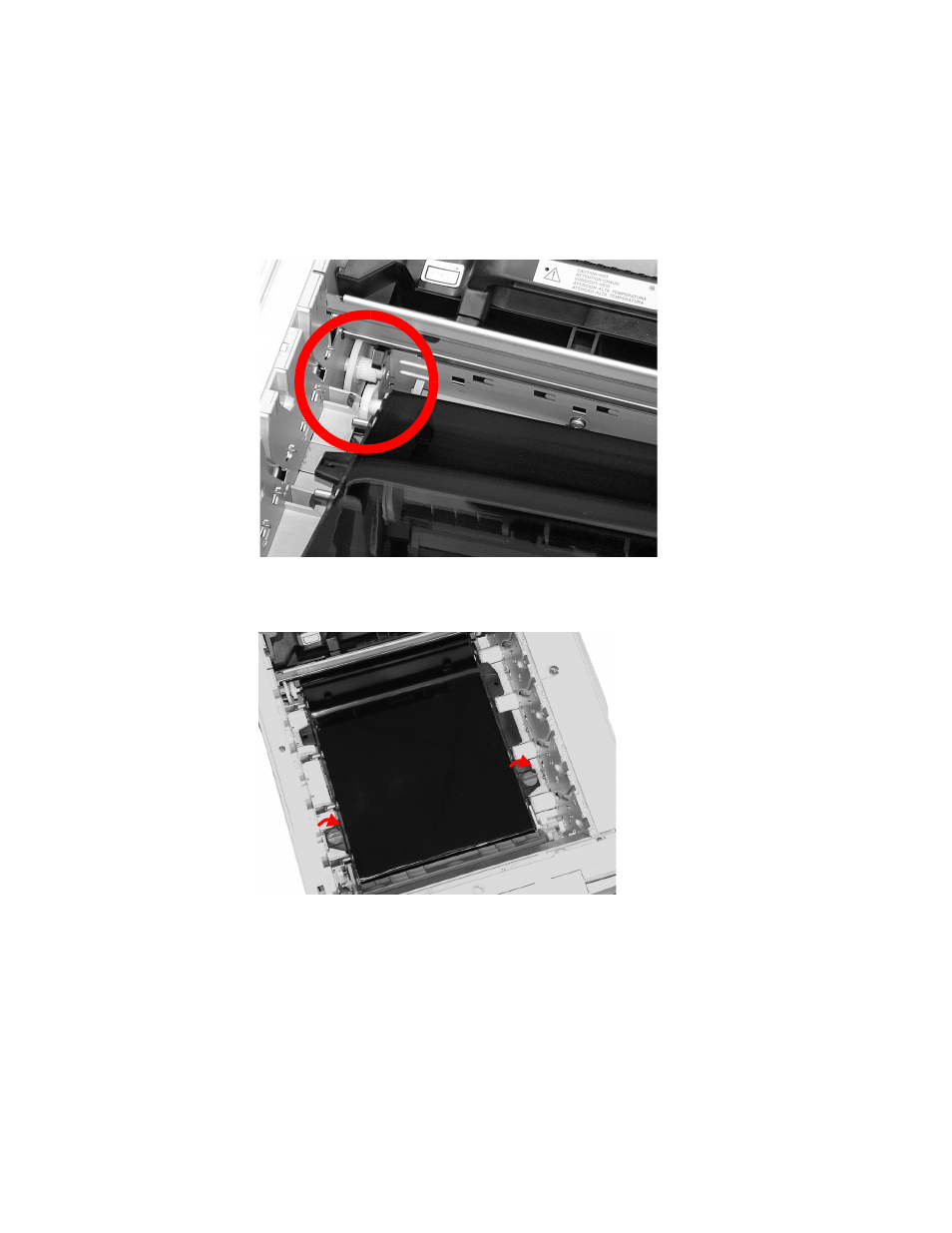

Place the drive gear at the back of the belt unit in the

gear at the left rear corner of the printer. Lower the belt

unit into the printer.


9.

Turn the two belt locks about 45° clockwise to secure the

belt unit in place.
