7. Adjusting the Near-end Sensor

Use the following procedure to adjust the near-end sensor so it is compatible with the size of

paper roll you are using.

However, for vertical or wall-mount use, keep the adjuster fixed to level 3, without changing

its position.

① Open the printer cover.

② Determine the diameter of the paper roll you are using and find the required setting in the

table below.

③ Insert the tip of a ballpoint pen or similar object into the hole of the adjuster, and then push

and side the adjuster to the desired setting.

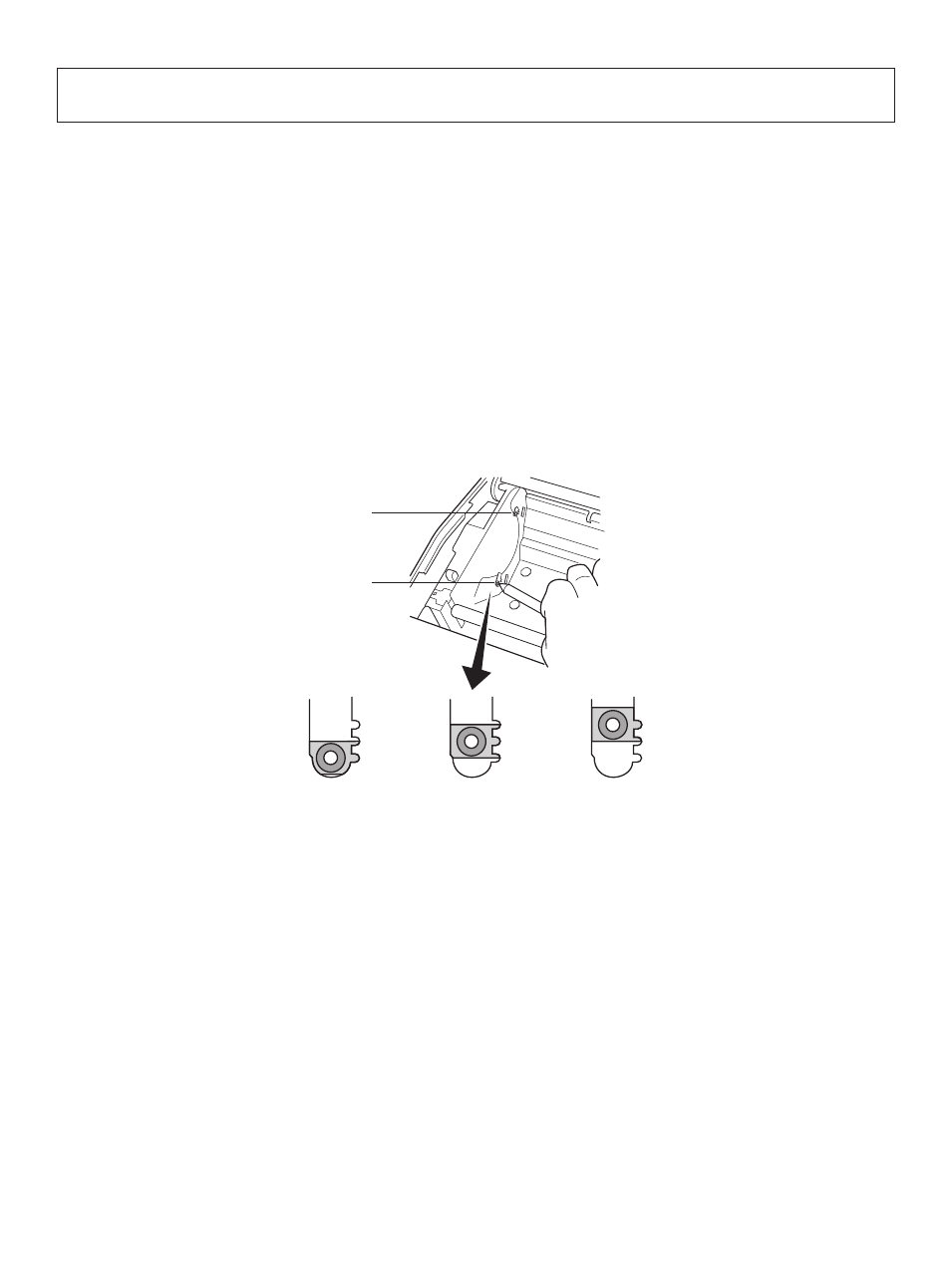

When changing the setting, make sure that the position of the hole is aligned with the align-

ment mark indicated by the arrow.

(Level 1)

(Level 2)

(Level 3)

Near-end sensor
(vertical/wall-mount
layout)

Near-end sensor
(horizontal layout)
