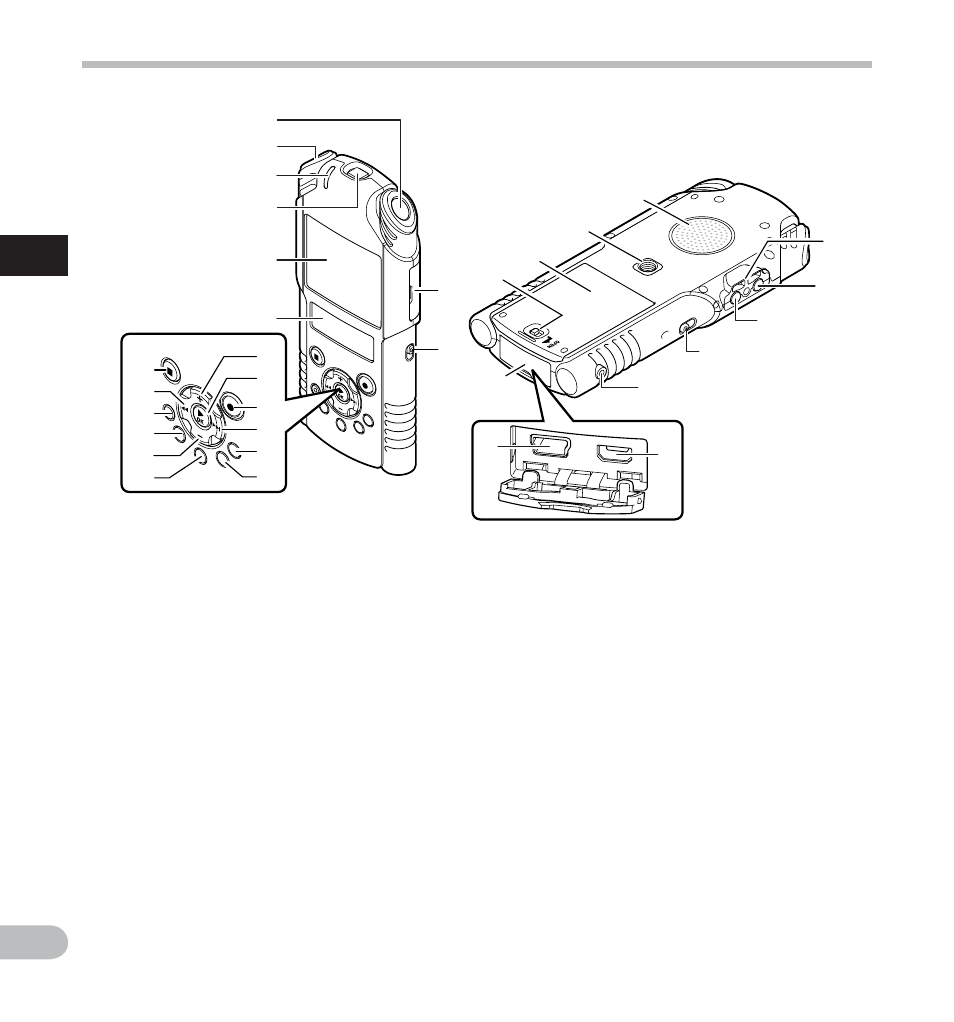

Identification of parts
1 Built-in stereo microphone(R)
2 Built-in stereo microphone(L)
3 PEAK/LED indicator light (LED)
4 Lens
5 Main LCD (LCD panel)
6 Sub LCD (LCD panel)
7 + button
8
`OK button
9 REC ( s) (Record) button
Recording/Shooting indicator light
(LED)
0 9 button
! LIST button
@ MENU button
# A-B REPEAT button
$ – button
% Fn button
^ ERASE button
&
0 button
* STOP ( 4) button
( Card cover
) Mode switch (
A/n)
- Strap hole
= MIC (Microphone) jack
(MIC/LINE-IN)
q EAR (Earphone) jack
w POWER/HOLD switch
e REMOTE jack
Connect the receiver for the exclusive remote
control set RS30W (optional). This enables
operation of the start and stop recording/
shooting functions through the remote control.
r Connector cover
t HDMI micro connector
y USB connector
u Battery cover lock button
i Battery cover
o Tripod socket
p Built-in speaker
