CD-100K Phonograph

2 - 3 2

21822666

Average or Moderately Absorbent Rooms

These are the factory settings.

1. Turn all seven right channel and seven left channel graphic

equalizer controls fully counterclockwise.

2. The graphic equalizer’s controls should now be set as

shown to the right.

3. Play a selection and turn the controls slightly (no more than

1/8 of a turn at a time) until the sound is acceptable. Be sure
that the phonograph volume is adequate. If the volume is
not adequate, you will need to turn each control up
(counterclockwise) slightly until the volume is satisfactory.

Remember: The maximum volume setting is obtained
when all controls are turned full counterclockwise.

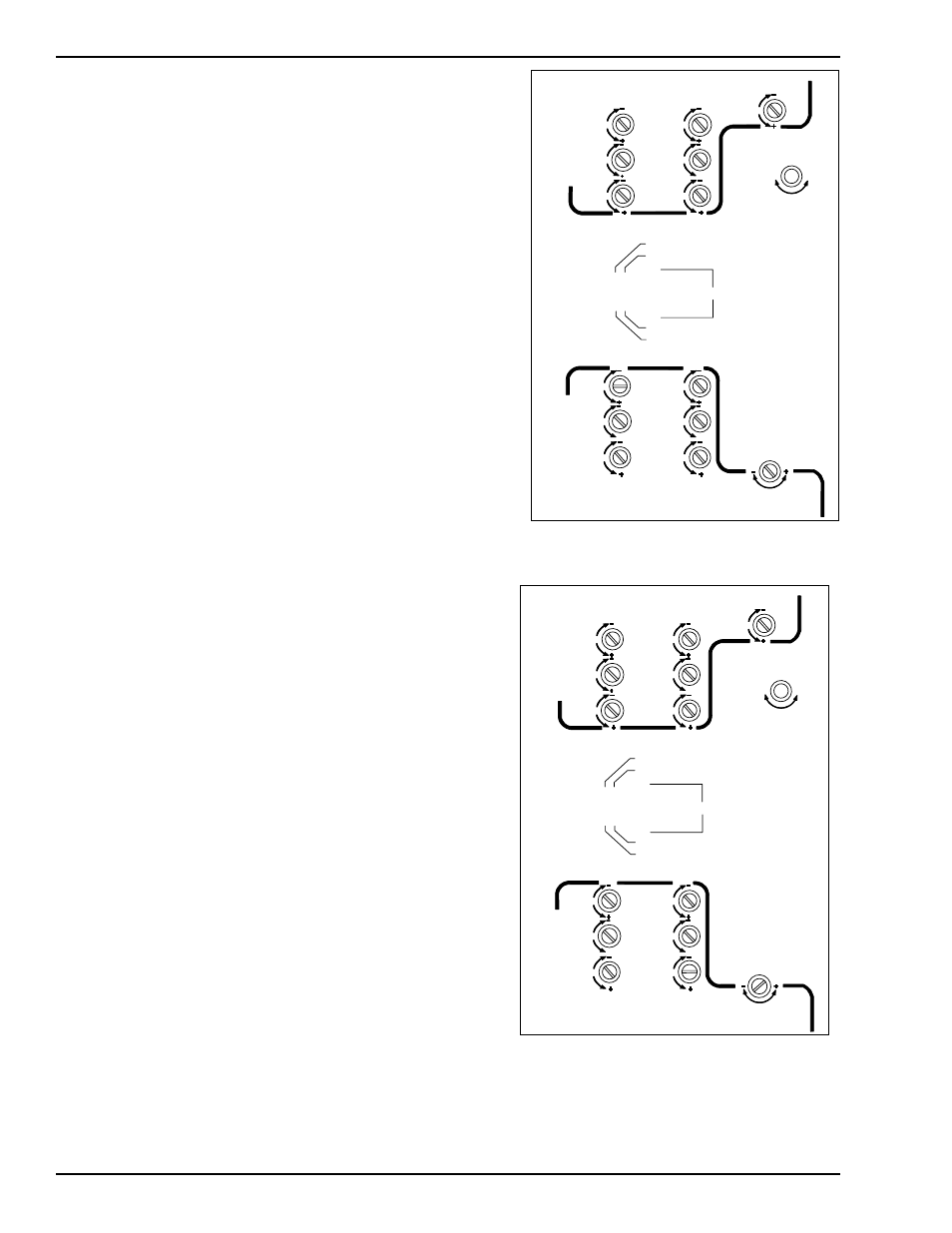

Figure 2-9B. “Average” Rooms

Hard or Non-Absorbent Rooms

Rooms that are paneled and have bare or tiled floors are
considered to be “hard or nonabsorbent.”

1. Turn all seven right channel and seven left channel graphic

equalizer controls fully counterclockwise.

2. Turn the 15.8 kHz control all the way clockwise as shown

to the right.

3. Turn the 10.8 kHz control to the position midway between

the maximum and minimum position as shown to the right.
Leave the 46 Hz, 108 Hz, 343 Hz, 1.08 kHz, and 3.43
kHz controls turned all the way counterclockwise.

4. The controls on the equalizer should now be set as shown

to the right.

5. Play a selection and turn the controls slightly (no more than

1/8 of a turn at a time) until the sound is acceptable. Be sure
that the phonograph volume is adequate. If the volume is
not adequate, you will need to turn each control up
(counterclockwise) slightly until the volume is satisfactory.

Remember: The maximum volume setting is obtained
when all controls are turned full counterclockwise.

Figure 2-9C. “Non-Absorbent” Rooms

GRAPHIC EQUALIZER

RIGHT CHANNEL

0

0

0

0

0

0

0

H

L

MUSIC LEVEL

DURING PAGING

15.8KHZ

10.8KHZ

3.43KHZ

343HZ

108HZ

1.08KHZ

46HZ

CD INPUT

STEREO

AVC ON

IN
OUT
GROUND
OUT
IN

AUX

MONO

AVC OFF

MICROPHONE

INPUT

1

13

VOLUME

CONTROL

0

0

0

10.8KHZ

3.43KHZ

1.08KHZ

0

0

0

343HZ

108HZ

46HZ

15.8KHZ

LEFT CHANNEL

GRAPHIC EQUALIZER

CD INPUT

1183A

GRAPHIC EQUALIZER

RIGHT CHANNEL

0

0

0

0

0

0

0

H

L

MUSIC LEVEL

DURING PAGING

15.8KHZ

10.8KHZ

3.43KHZ

343HZ

108HZ

1.08KHZ

46HZ

CD INPUT

STEREO

AVC ON

IN
OUT
GROUND
OUT
IN

AUX

MONO

AVC OFF

MICROPHONE

INPUT

1

13

VOLUME

CONTROL

0

0

0

10.8KHZ

3.43KHZ

1.08KHZ

0

0

0

343HZ

108HZ

46HZ

15.8KHZ

LEFT CHANNEL

GRAPHIC EQUALIZER

CD INPUT

1183N
