CD-100K Phonograph
2 - 2 4 21822666
1000 w
atts
Amplifier
E1 E7 E1 E7
Speak
ers
Left Channel
Speak
ers
Right Channel
Ser
ies/P
ar
all Hookup

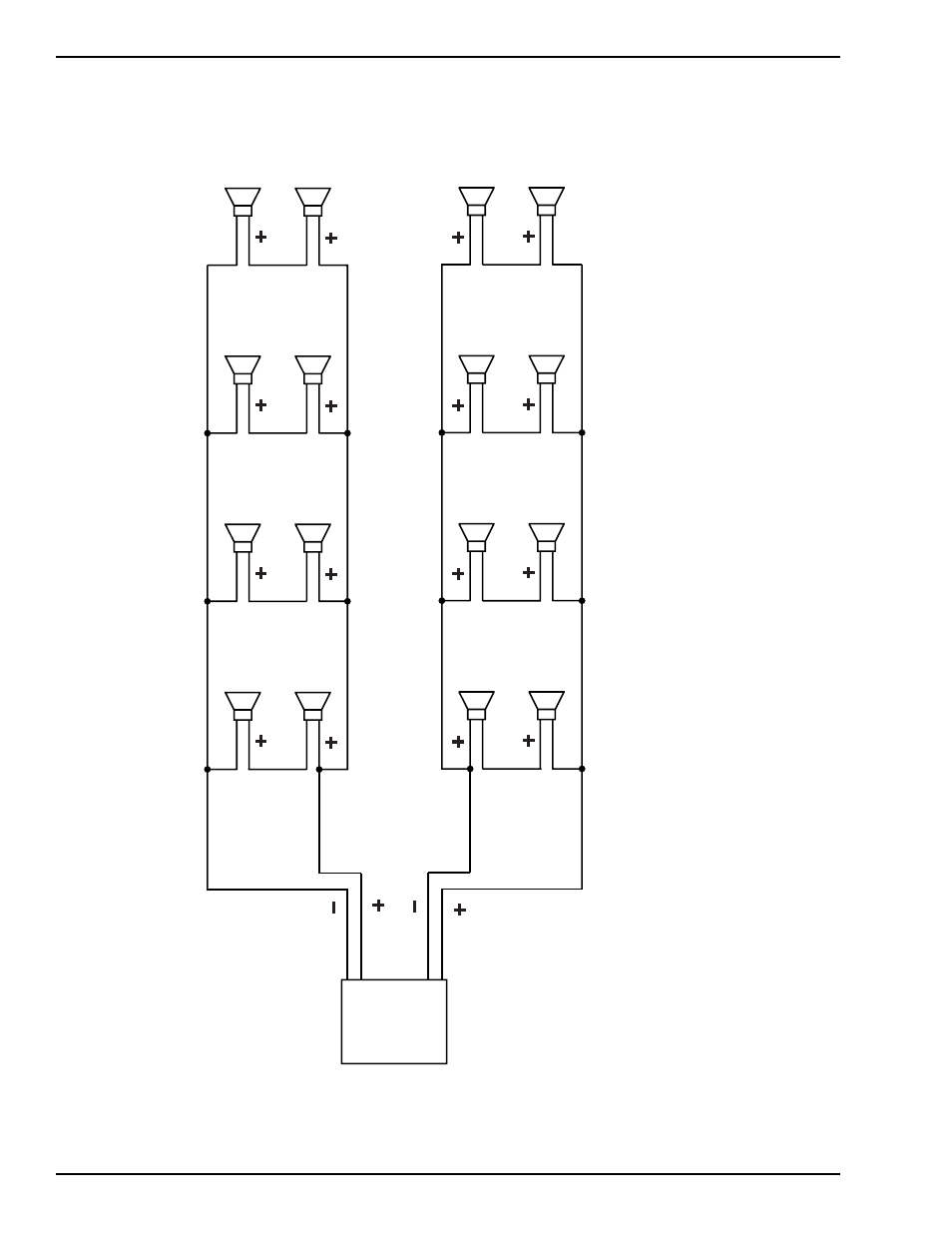

Sixteen 4 ohm speak
ers each r
ated at a minim
um of 75 w
atts each (Note:
Left
channel is out of phase
, plus + and min
us -, in hookup with respect to r
ight channel).
EA
CH SPEAKER OUTPUT IS 62.5
W
A
TTS
DIAGRAM 3
