Service Calls from a Handler That Caused an Interrupt during Service Call Processing
Scheduling (task switching) is initiated after the system returns to the interrupted service call processing (See Figure 3.12).
wup_tsk
ret_int
iset_flg
Interrupt
TaskA
Interrupt handler
Save
Service call processing
OS
Restore Registers
SP <= User
Restore Registers
Task selection
TaskB
Save Registers
SP <= System

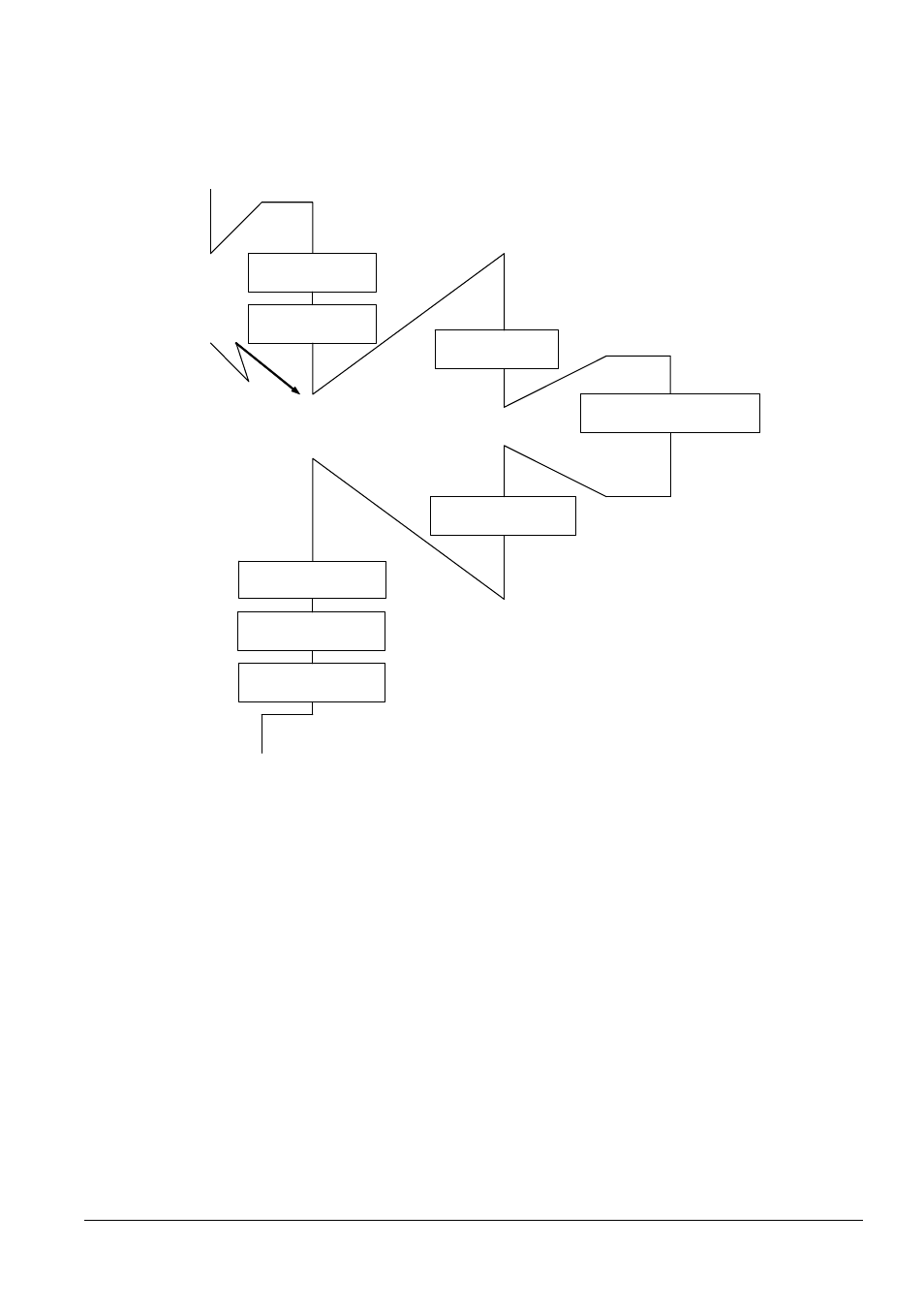

Figure 3.12 Processing Procedure for a Service Call from a Handler that caused an interrupt during
Service Call Processing
