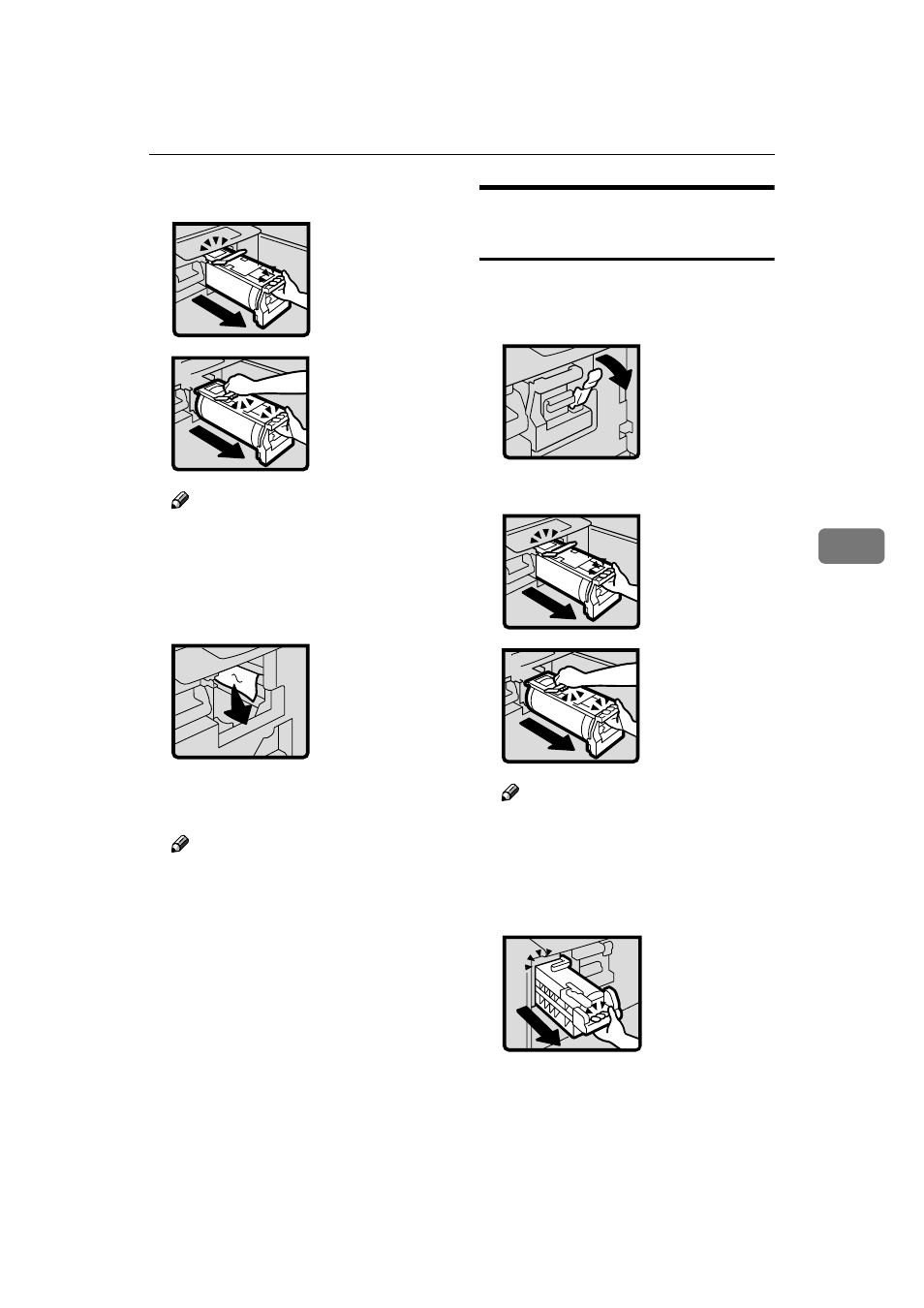

x Clearing Misfeeds

177

5

CCCC

Take out the drum.

Note

❒ For taking out the drum unit,

see p.130 “Changing the Color
Drum Unit”.

DDDD

Pull out the misfed master from
inside.

EEEE

Set the drum unit and close the
front door.

Note

❒ For setting the drum unit, see

p.130 “Changing the Color
Drum Unit”.

”

x

x

x

x + B + E” Master Misfeeds

in the Master Eject Section

AAAA

Open the front door.

BBBB

Lower drum unit lock lever (B1).

CCCC

Take out the drum.

Note

❒ For taking out the drum unit,

see p.130 “Changing the Color
Drum Unit”.

DDDD

Grasp handle (E1) and pull out
the master eject unit until it stops.

B 2

B 2

B 3

B 1

B 2

B 2

B 3

E 1
