Component Video Connections: Connect your component video sources to the
COMPONENT 1/SCART, COMPONENT 2 or RGB inputs as shown in Figure 3-12.

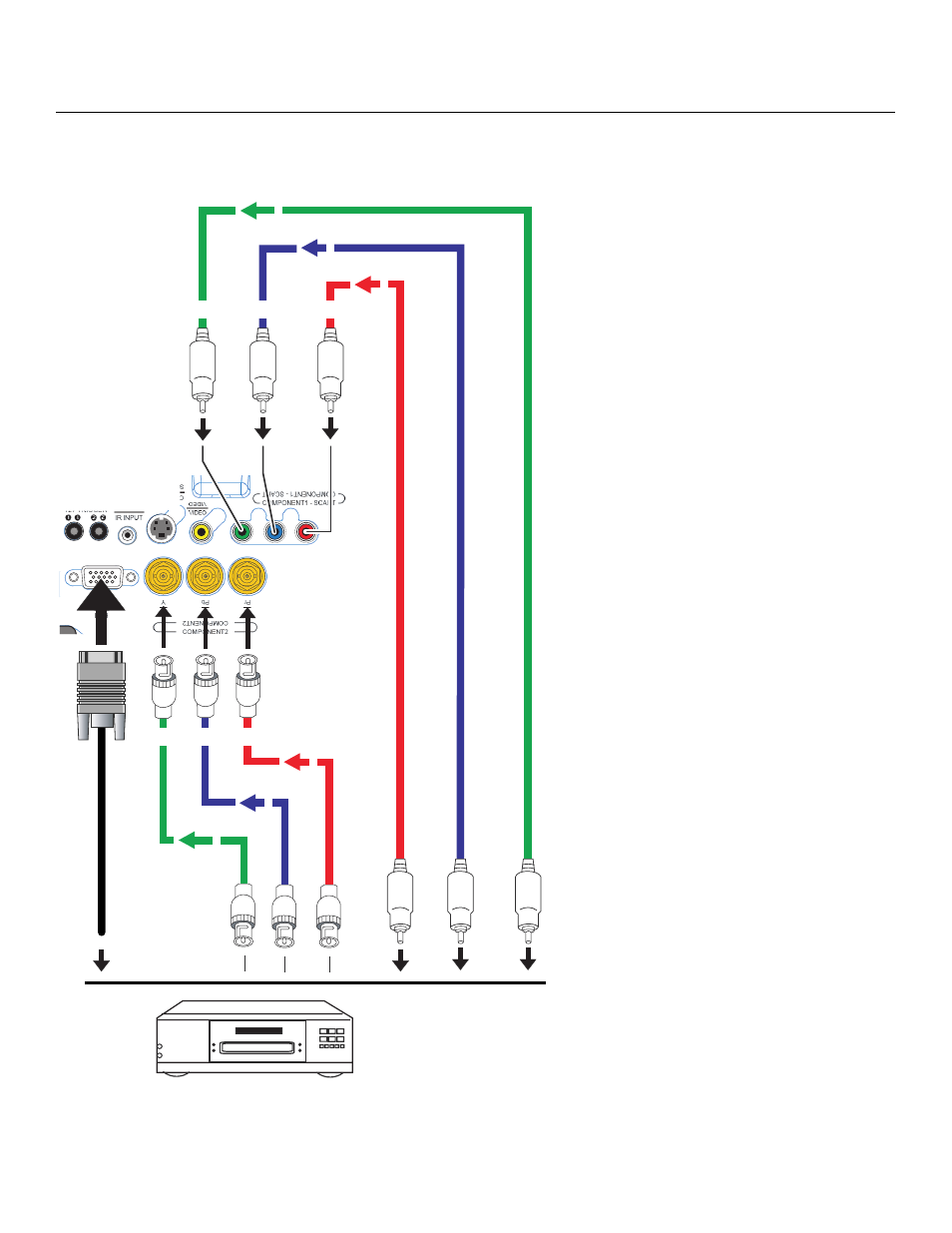

Figure 3-12. Component Video Connections

Y Pb Pr

DTV Set-Top Box or
Other Component
(YPbPr) Source
