Chapter 1. Overview of the XP-30
Chapter 1
Patches
Patches are the basic sound configurations that you play
during a performance. Each Patch can be configured by
combining up to four Tones. How the four Tones are
combined is determined on the STRUCT display (PATCH/
COMMON).

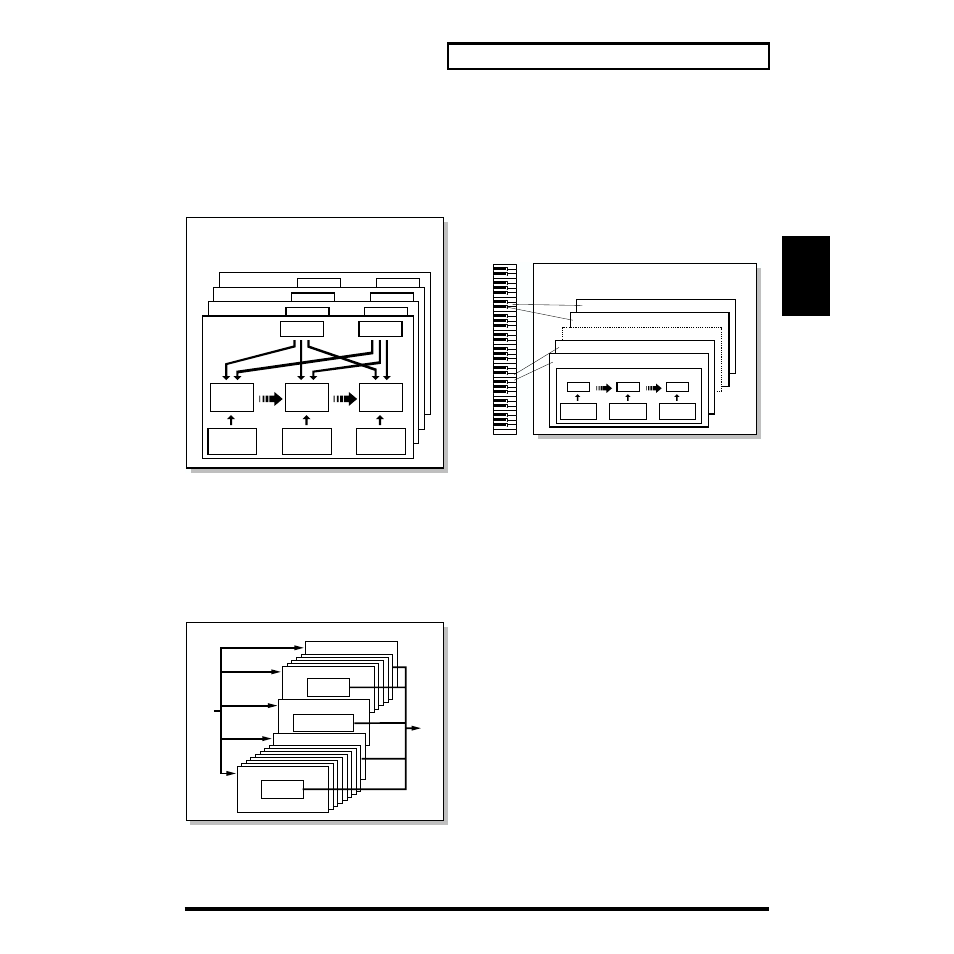

fig.1-03.e
Performances
The next level in sound configuration. A single Performance
groups 15 Patches and one Rhythm Set so that they can be
combined to play ensembles or produce fabulously rich,
thick sounds. One Performance allows a single XP-30 to
control up to 16 instrument sounds. Because the XP-30 sound
source can control multiple sounds (instruments) it is called a
“multitimbral sound source.”
fig.1-04.e
Rhythm Sets
A Rhythm Set is a grouping of percussion instruments
(Rhythm Tones). Since percussion instruments generally do
not play melodies, there is no need for a percussion
instrument sound to be able to play a scale on the keyboard.
It is however, more important that as many as possible
percussion instruments be available to you at the same time.
Therefore, each key (Note number) of a Rhythm Set will
produce a different percussion instrument.
fig.1-05.e
Parts
When the XP-30 is used as a multitimbral sound source,
another sound configuration called a Part comes into play. A
Part contains a Patch or Rhythm Set. For multitimbral
applications, the Performance consists of 16 Parts. A specific
Patch can be assigned to each Part except Part 10 because
Part 10 is universally set as the Drum Part to which a Rhythm
Set (discussed above) is assigned. In a multitimbral context, it
helps to think of a Performance as an orchestra, each Part in
it being a musician, and the Patch or Rhythm Set that
musician’s instrument.
For details regarding following items, please refer to each
corresponding page.
About the Memory (p. 67)
About the Effects (p. 61)
Patch
Tone 4
Tone 3
Tone 2
Tone 1
WG
Pitch
Envelope
TVF
TVF
Envelope
TVA
Envelope
TVA
LFO 1 LFO 2
Performance
Patch
Rhythm Set
Part 10 (MIDI receive ch.)
Part 11 (MIDI receive ch.)
Part 16 (MIDI receive ch.)
Patch
Part 1 (MIDI receive ch.)
Part 9 (MIDI receive ch.)
Key-
board,
MIDI
Sound
Note Number 98 (D7)
Note Number 97 (C#7)
Note Number 36 (C2)
Note Number 35 (B1)
Rhythm Tone (Percussion instrument sound)
Rhythm Set
WG
Pitch
Envelope
TVF
TVF
Envelope
TVA
Envelope
TVA
