RUGGEDCOM RX1512
Installation Guide
Chapter 3
Installation
M12 Twisted Pair Copper Ports 21
RJ45 Pin 10/100Base-Tx 10/100/1000Base-Tx
8 NC D-
Section 3.7.2
M12 Twisted Pair Copper Ports
M12 ports are available on LMs that support 10/100Base-TX and 10/100/1000Base-TX. See the illustrations and
tables below for pin configuration and assignmnt.

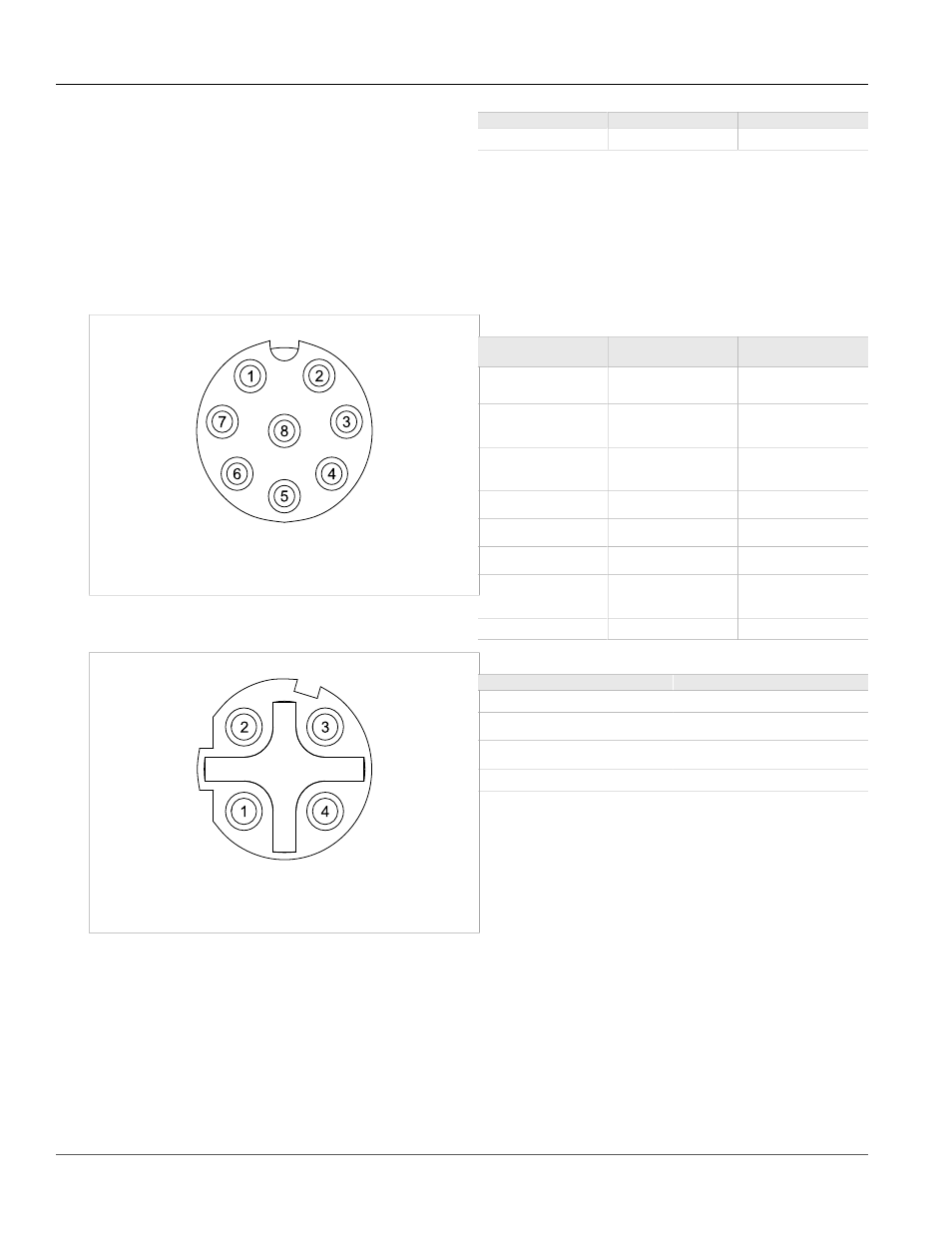

Figure 43: 8-Pin A-coded M12
Ethernet Port Pin Configuration
Table: 8-Pin A-coded M12 Ethernet Port Pin Assignment
Pin
10/100Base-Tx
Signal (On 4TX03)
10/100/1000Base-
Tx Signal (on CG03)
1 NC (terminated
at GND)
C+
2 NC (terminated
at GND)
D+
3 NC (terminated
at GND)
D-
4 TX- A-
5 RX+ B+
6 TX+ A+
7 NC (terminated
at GND)
C-
8 RX- B-
Figure 44: 4-Pin D-coded M12
Ethernet Port Pin Configuration
Table: 4-Pin D-coded M12 Ethernet Port Pin Assignment
Pin 10/100Base-Tx Signal
1 TX+
2 RX+
3 TX-
4 RX-
Section 3.7.3
Gigabit Ethernet 1000Base-TX Cabling Recommendations
The IEEE 802.3ab Gigabit Ethernet standard defines 1000 Mbit/s Ethernet communications over distances of up
to 100 meters using 4 pairs of CAT-5 (or higher) balanced, unshielded twisted-pair cabling. For wiring guidelines,
system designers and integrators should refer to the Telecommunications Industry Association (TIA) TIA/EIA-568-
A wiring standard for minimum cabling performance specifications required for proper Gigabit Ethernet operation.
