RUGGEDCOM RX1512
Installation Guide
Chapter 3
Installation
Serial Console Port
19
Section 3.4
Serial Console Port
The serial console port on the front panel provides access to the boot-time control and configuration menu
interface, and a console interface to the RX1512 operating system.
The serial ports implement RS232 DCE on a RJ45 connector. Serial settings are: 57600 bps, 8 bits, No parity, 1
stop bit. See the illustration and table below for pin configuration and assignment.

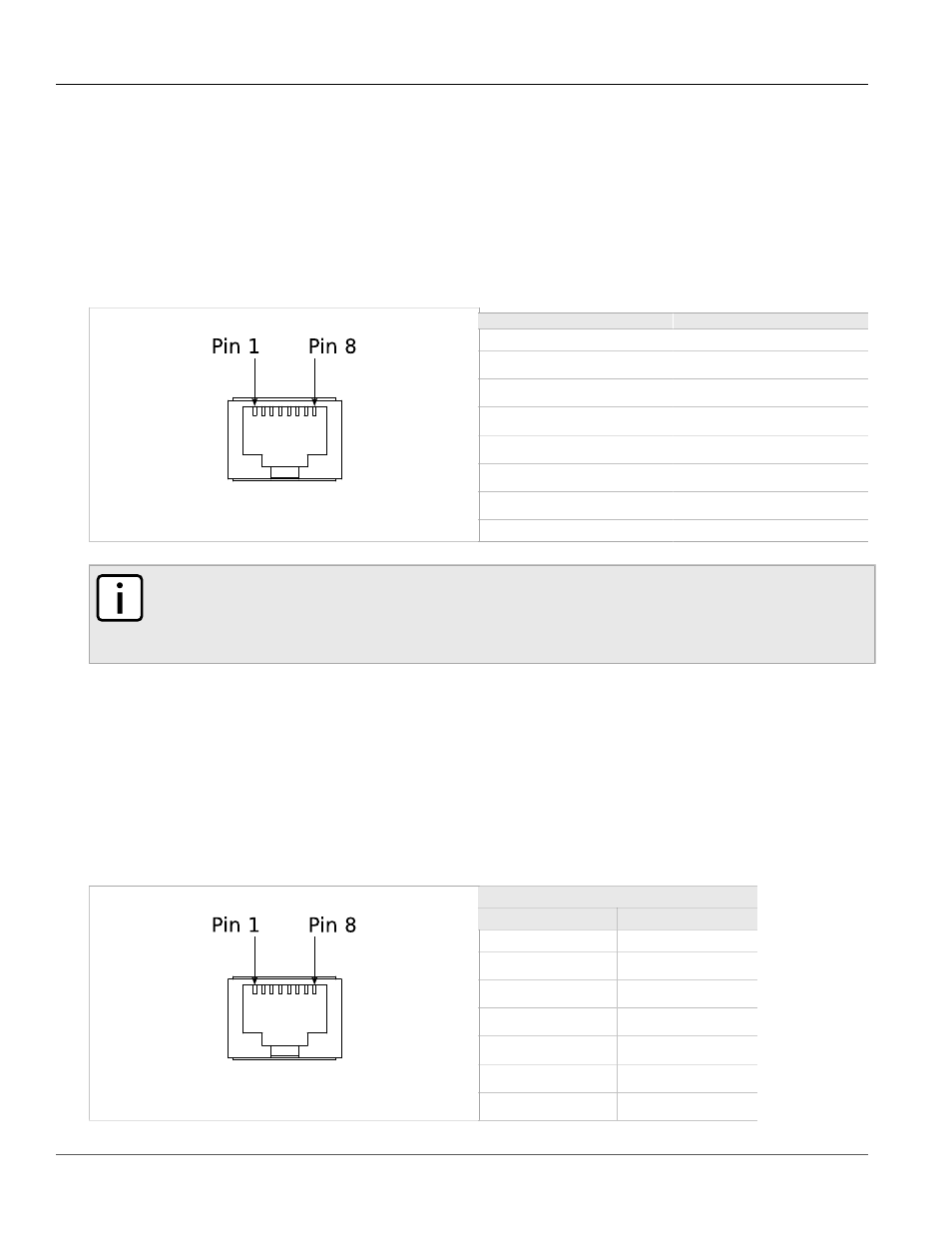

Figure 39: RJ45 Serial Console Port
Table: RJ45 Serial Console Pinout
RJ45 Pin
Signal Function
1
DSR/RI
2
RLSD
3
DTR
4
GND
5
RD
6
TD
7
CTS
8
RTS
NOTE
The RX1512 connects the DSR/RI, RLSD, and DTR pins internally and does not drive or require these
pins.
The RX1512 connects the CTS and RTS pins internally and does not drive or require these pins.
Section 3.5
WAN Ports: RJ45
The RX1512 supports T1/E1 WAN ports, to interface to standard T1 or E1 telecommunication infrastructure.
Carefully note the orientation of the RJ45 receptacle when inserting or removing cabling. See the illustration and
table below for pin configuration and assignment.
Figure 40: RJ45 T1/E1 Pin Configuration
Table: RJ45 T1/E1 Pin Assignment
T1/E1 pinout
Pin
Description
1
RRING
2
RTIP
3
NC
4
TRING
5
TTIP
6
NC
7
NC
