RUGGEDCOM RX1512
Installation Guide
Chapter 2
RUGGEDCOM Modules
RuggedAPE™ (Appplication Processing Engine)
11
Section 2.3.8
RuggedAPE™ (Appplication Processing Engine)

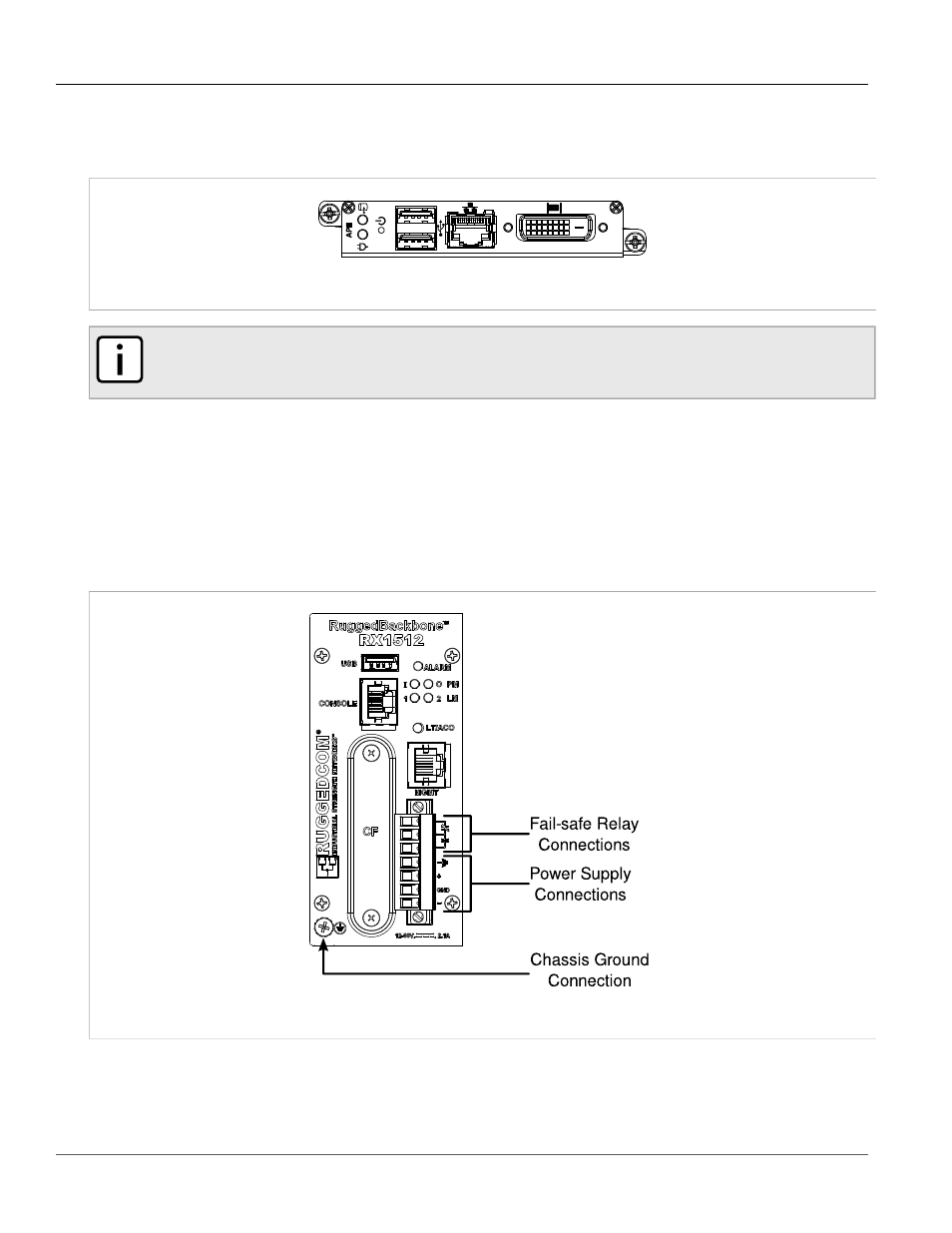

Figure 27: RuggedAPE™ Module
NOTE
For more information about the RuggedAPE module, including installation and setup instructions, refer
to the APE Installation and User Guide.
Section 2.4
Power Supply
The RX1512 power supply is integrated with the Control Module. The power supply and fail-safe relay
connections are made on a pluggable terminal block located on the front panel of the Control Module. The
RX1512 power supply input is 11VDC to 72VDC, and consumes a maximum of 25W.
Figure 28: Pluggable terminal block power module and fail-safe relay connections
