Section 3.13
Cellular Modems
The RX1512 can be equipped with cellular modem modules for operation on GSM, EDGE, HSPA+, or CDMA
networks. The cellular modems feature 50 Ω SMA antenna connectors on the front plate of each module. The
following cellular modem modules are available:
Table: Cellular Modem Modules
Module Order Code
Description
W11
1 Port Cell Modem GSM,EDGE,HSPA+
W12
2 Port Cell Modem GSM,EDGE,HSPA+
W21
1 Port Cell Modem EVDO Rev.A Verizon Wireless
W22
2 Port Cell Modem EVDO Rev.A Verizon Wireless
W32
1 Port Cell Modem GSM,EDGE,HSPA+, 1 Port Cell Modem EVDO Rev.A Verizon Wireless

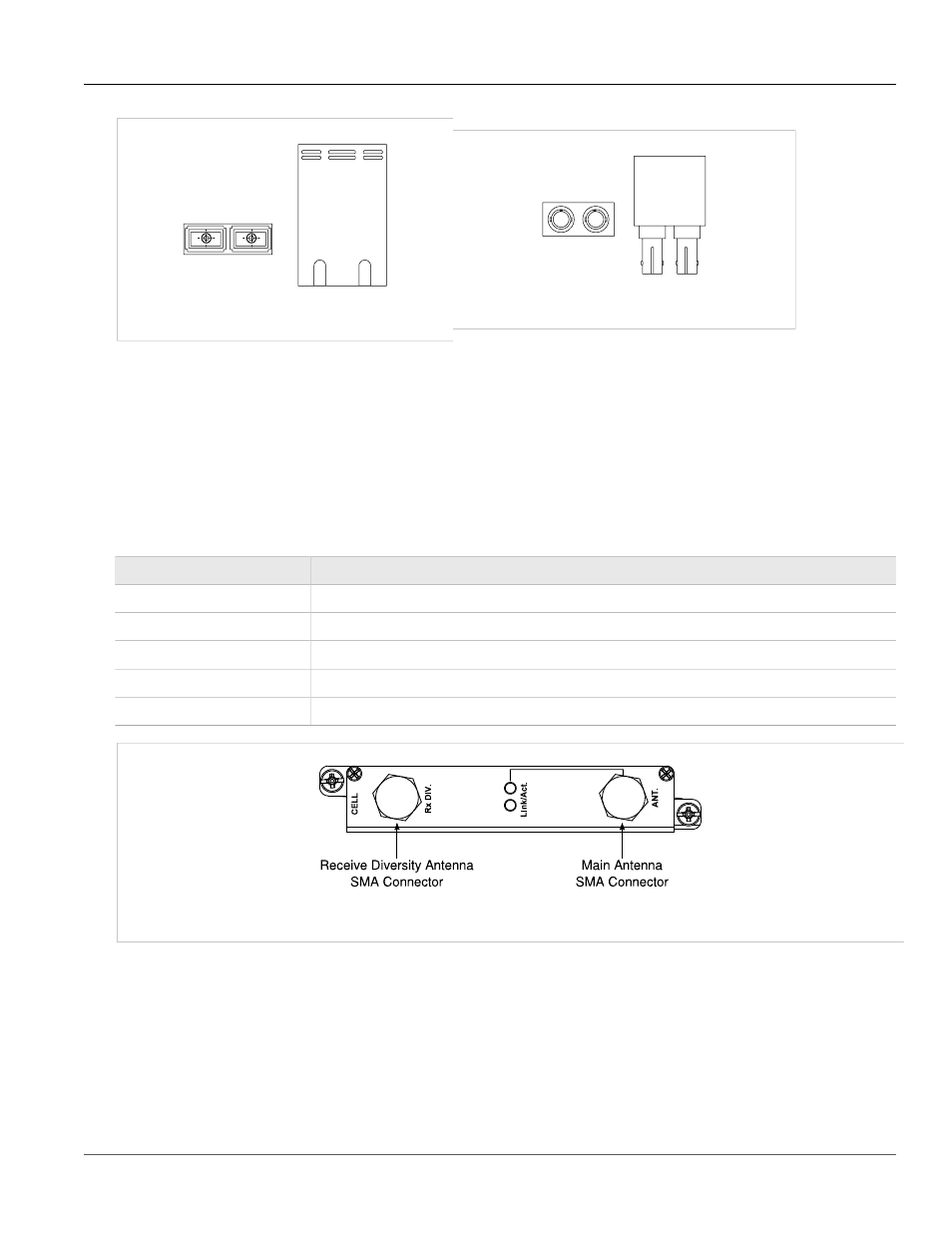

Figure 55: Single Port Cellular Modem: Antenna Connections
