RUGGEDCOM RX1512
Installation Guide
Chapter 3
Installation
Mounting
13
Installation
Section 3.1
Mounting
The RUGGEDCOM RX1512 features optional mounting brackets for panel and DIN rail mounting. The optional
brackets attach to both sides of the appliance at the rear of the chassis. For panel mounting, the mounting
bracket provides four mounting holes. For DIN rail mounting, the DIN adaptor mounts to a standard 1" DIN rail
and is secured with a lock screw on each adaptor.
To attach the mounting brackets, align the brackets with the threaded holes on the sides of the appliance. Secure
the mounting brackets to the appliance with the screws included in the mounting bracket kit.

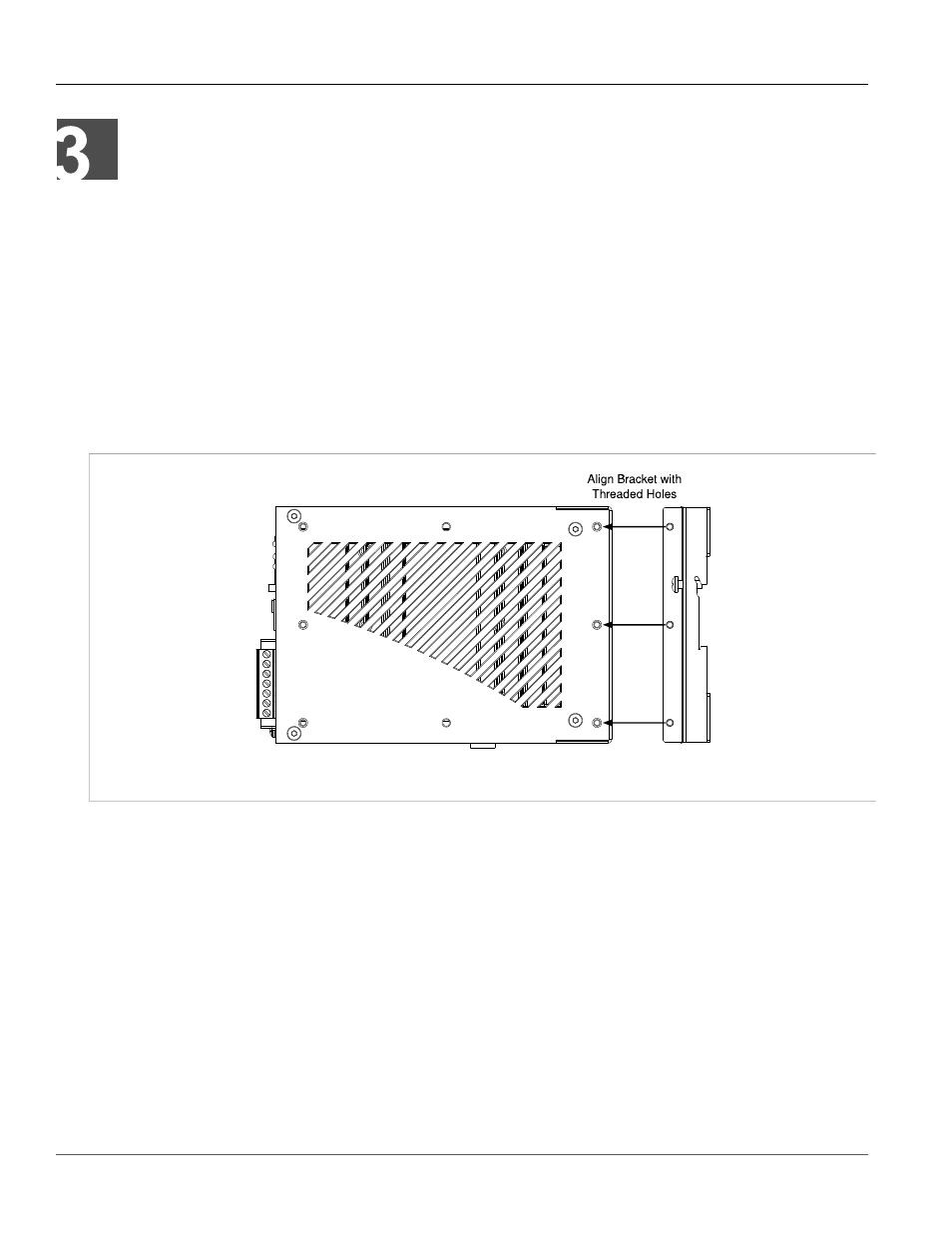

Figure 29: Installing Mounting Brackets
