1 SpeedTouch™ Installation
E-DOC-CTC-20040123-0001 v3.0 7

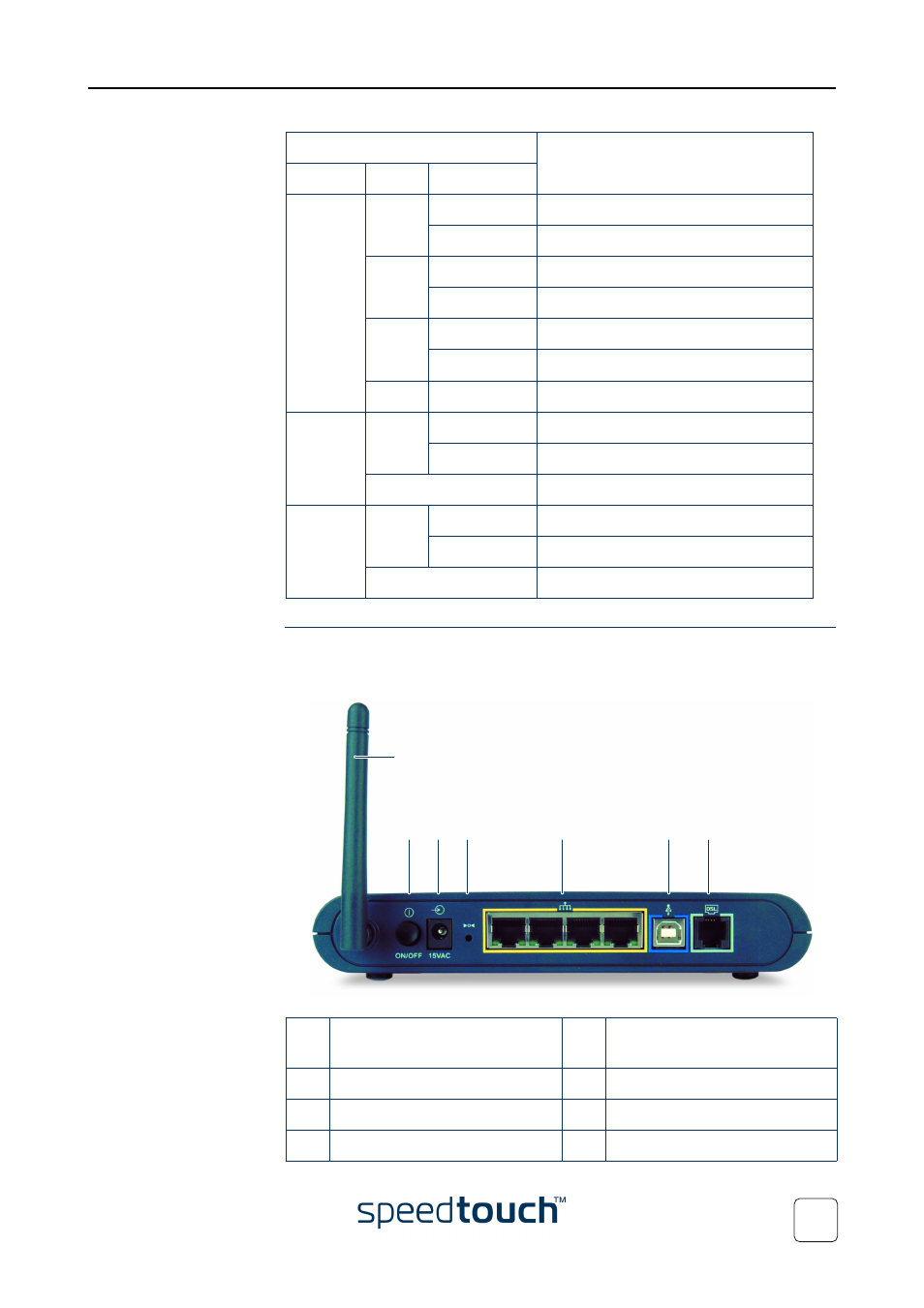

Back panel layout The following connectors are available on the SpeedTouch™580: a four port 10/
100Base-T Half-/Full-duplex auto-sensing MDI/MDI-X Ethernet switch, a USB port and
a DSL line port.
WLAN Green Flashing Wireless activity, security level 2
On No Wireless activity
Amber Flashing Wireless activity, security level 1
On No Wireless activity
Red Flashing Wireless activity, security level 0
On No Wireless activity
Off No Wireless connection
DSL Green Flashing Pending DSL line synchronization
On DSL line synchronized
Off No DSL line
Internet Green Flashing Internet activity
On Internet Connection
Off No Internet Connection
Indicator Description
Name Color State
A Antenna E 10/100Base T Ethernet switch
(marked yellow)
B Power button (On/Off) F USB port (marked blue)
C Power inlet (15VAC) G DSL line port (marked grey)
D Recessed Reset button
E F B
A
D C G
