1.1 Getting Acquainted with the SpeedTouch™
Introducing the
SpeedTouch™
Prior to proceeding, please make sure to read first the SpeedTouch™ Quick Installation
Guide. It provides important package content and safety information.
Check whether all items are present in your package.
In the event of damaged or missing items, please contact your local product dealer for
further information.

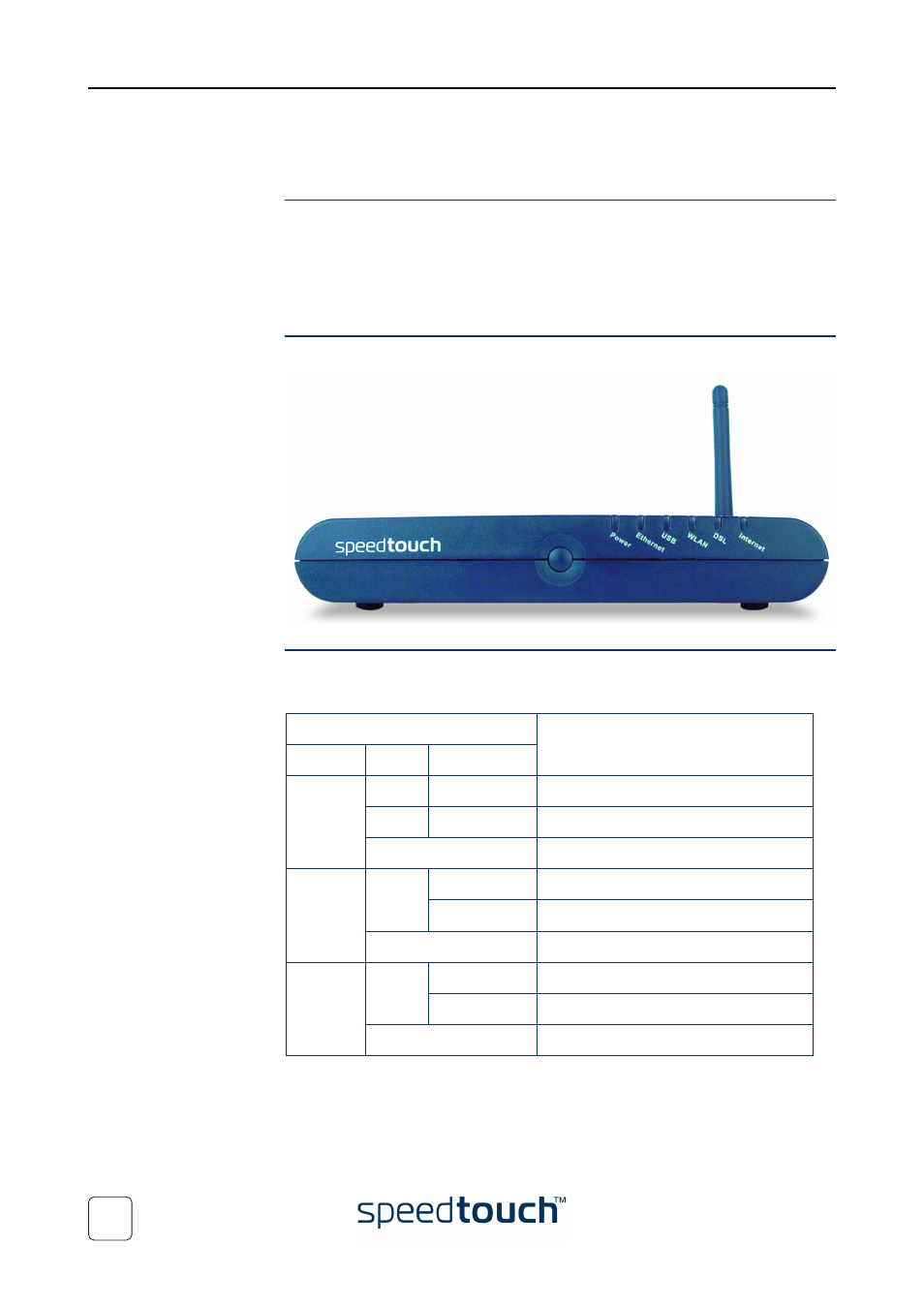

Front panel layout
The SpeedTouch™ is presented in a desktop housing:
Front panel LEDs
The SpeedTouch™ is equipped with six LEDs on its front panel, indicating the state of
the device during normal operation:
Indicator
Description
Name
Color
State
Power
Green
On
Power On, normal operation
Red
On
Startup pending
Off
Power Off
Ethernet
Green
Flashing
Ethernet activity
On
Ethernet connection, no activity
Off
No ethernet activity, no connection
USB
Green
Flashing
USB activity
On
No USB activity, USB connection
Off
No USB activity, no USB connection
