Functional Overview
2.3 Serial Port Interface
Rev.1.0 Dec 15, 2006 2-4
REJ10J0917-0100
2
2.3 Serial Port Interface
The SH7149 included in the M3A-HS49 contains a UART module. In the M3A-HS49, SCI channel 1 is connected to
J3 (Serial Port connector). Switch the connection of the J3 connector and J14 connector by the jumper (JP3, JP4)
setting.

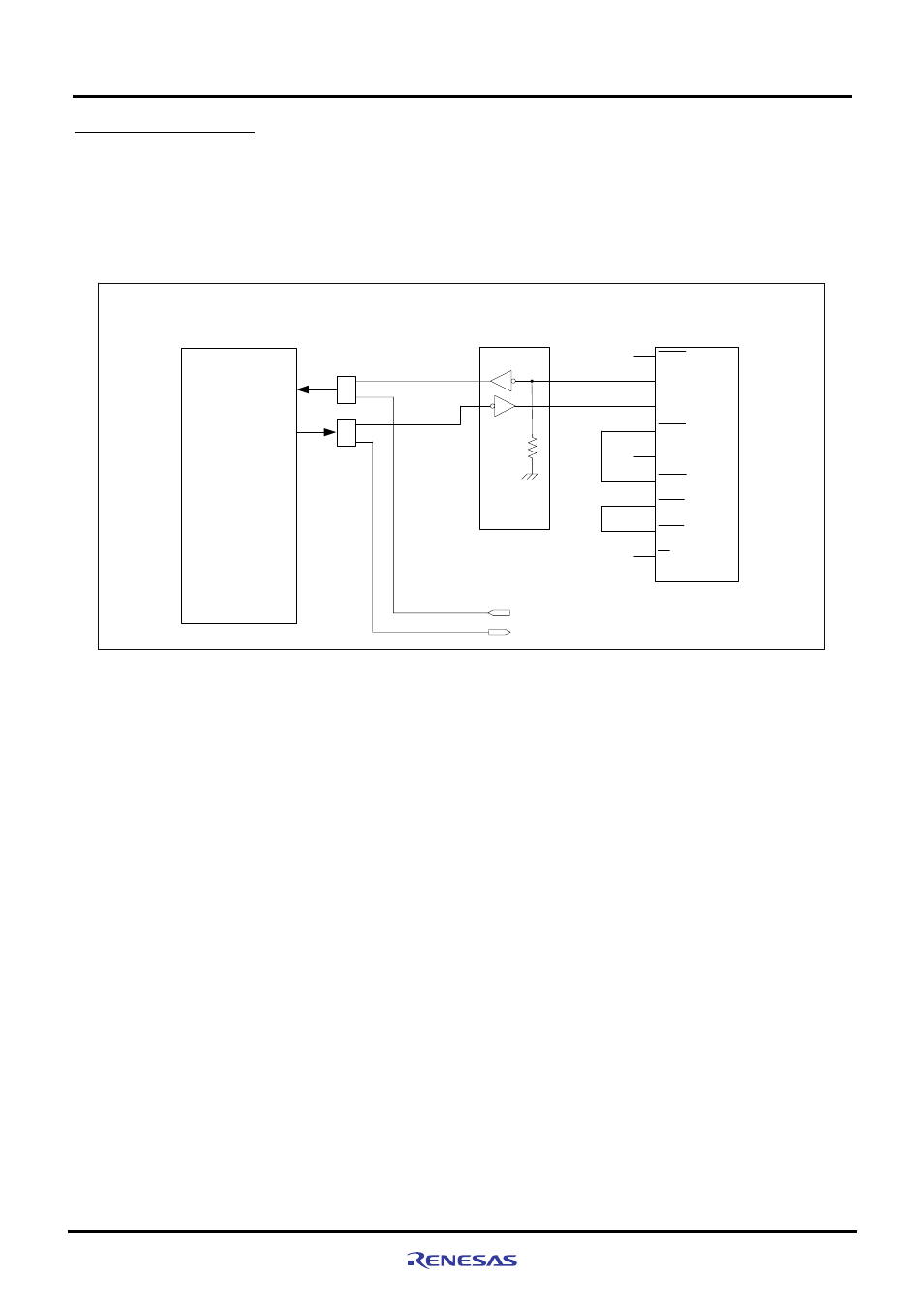

Figure2.3.1 shows the block diagram of serial port interface in the M3A-HS49.
SH7149
RXD1(PA3)
TXD1(PA4)
DCD
RxD
TxD
DTR
GND
DSR
RTS
CTS
RI
1
2
3
4
5
6
7
8
9
NC
GND
NC
Serial Port
Connector (J3)
RS232C
Driver
Extension Connector (J14)
RXD1(PA3)
TXD1(PA4)
1
2
3
1
2
3
JP4
JP3
Figure2.3.1 Block Diagram of Serial Port Interface
