Page 52: Terminal block installation
Chapter 2
Configuration and Installation
2-36
www.natinst.com

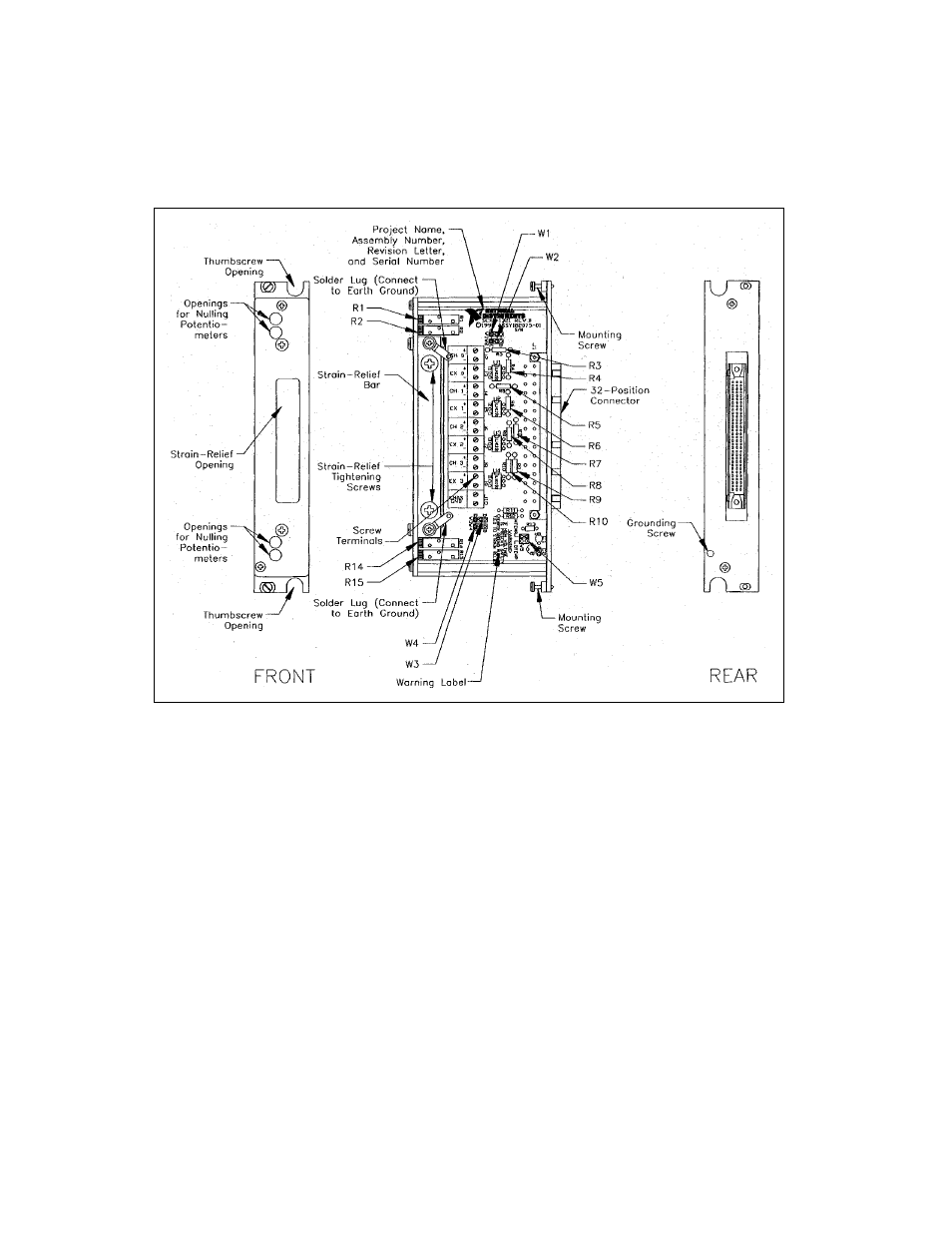

Figure 2-13. SCXI-1321 Parts Locator Diagram
Terminal Block Installation
To connect the terminal block to the SCXI-1121 front connector, perform
the following steps:
1.
Connect the SCXI-1121 front connector to its mating connector on the
terminal block.
2.
Make sure that the SCXI-1121 top and bottom thumbscrews do not
obstruct the rear panel of the terminal block.
3.
Tighten the top and bottom screws on the back of the terminal block to
hold it securely in place.
