Page 39
Chapter 2
Configuration and Installation
© National Instruments Corporation
2-23
3.
Turn off your SCXI chassis.
4.
Slide the selected module out of the SCXI chassis.
5.
Remove the module cover.
6.
Place one jack screw on the SCXI-1121 as indicated in Figure 2-8.
7.
While holding the jack screw in place, insert the lock washer and then
the nut. Notice that you might need long-nose pliers to insert the
washer and nut.
8.
Tighten the nut by holding it firmly and rotating the jack screw.
9.
Repeat steps 6 through 8 for the second jack screw.
10. Replace the module cover and tighten the grounding screw.
11. Slide the module back in place.
12. Connect the SCXI-1330 to your module connector and secure it by
tightening both mounting screws.

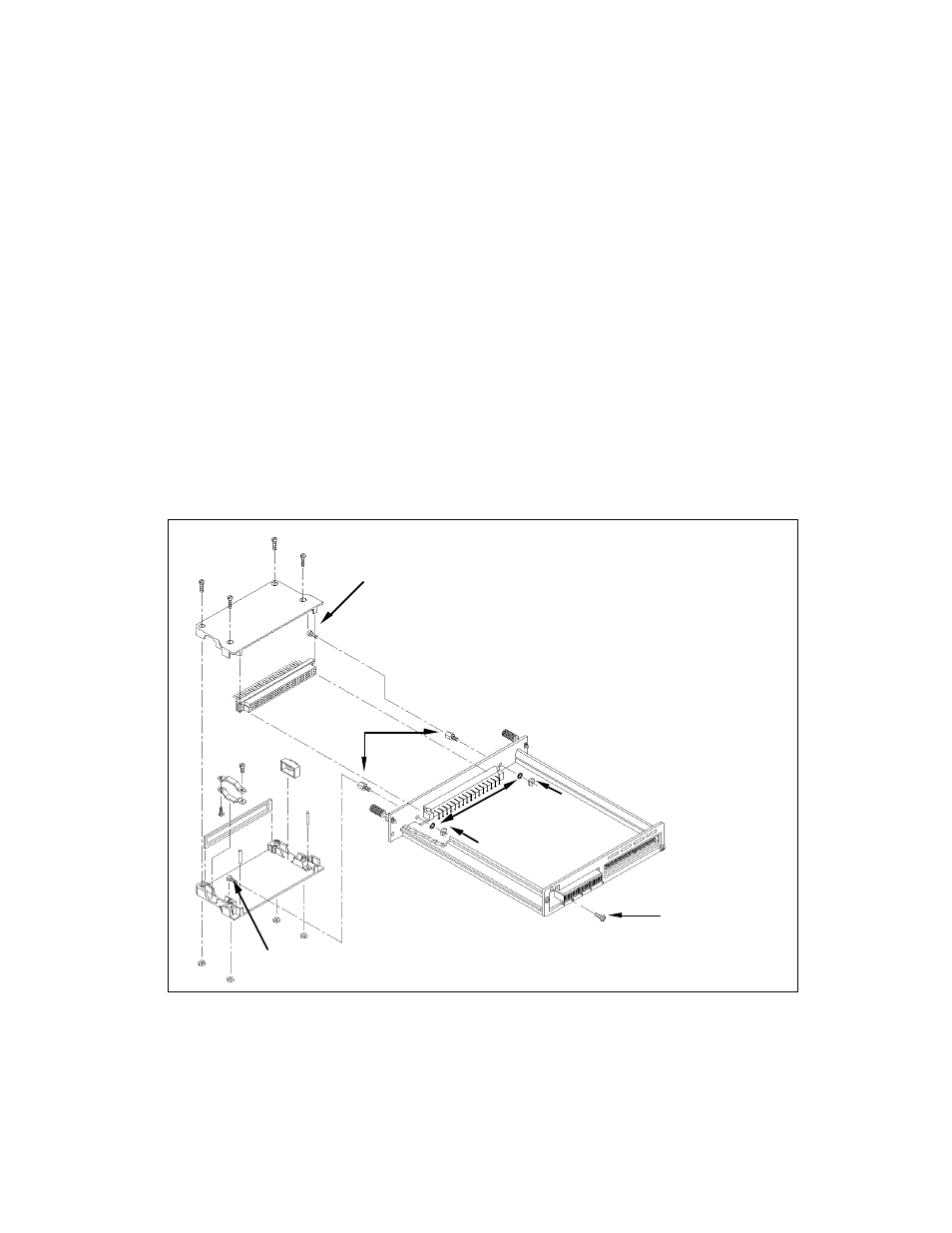

Figure 2-8. Assembling and Mounting the SCXI-1330 Connector-and-Shell Assembly
Mounting Screw
Lock Washers
Nut
Jack
Screws
Grounding Screw
Mounting Screw
Nut
Shell Assembly
SCXI-1121 Module
Shell Assembly
Connector
