Page 133
Appendix E
SCXI-1121 Cabling
© National Instruments Corporation
E-11
6.
Snap the cover back in place.
7.
Reinsert the rear grounding screw. The terminal block is now ready to
be connected to the front panel connector.

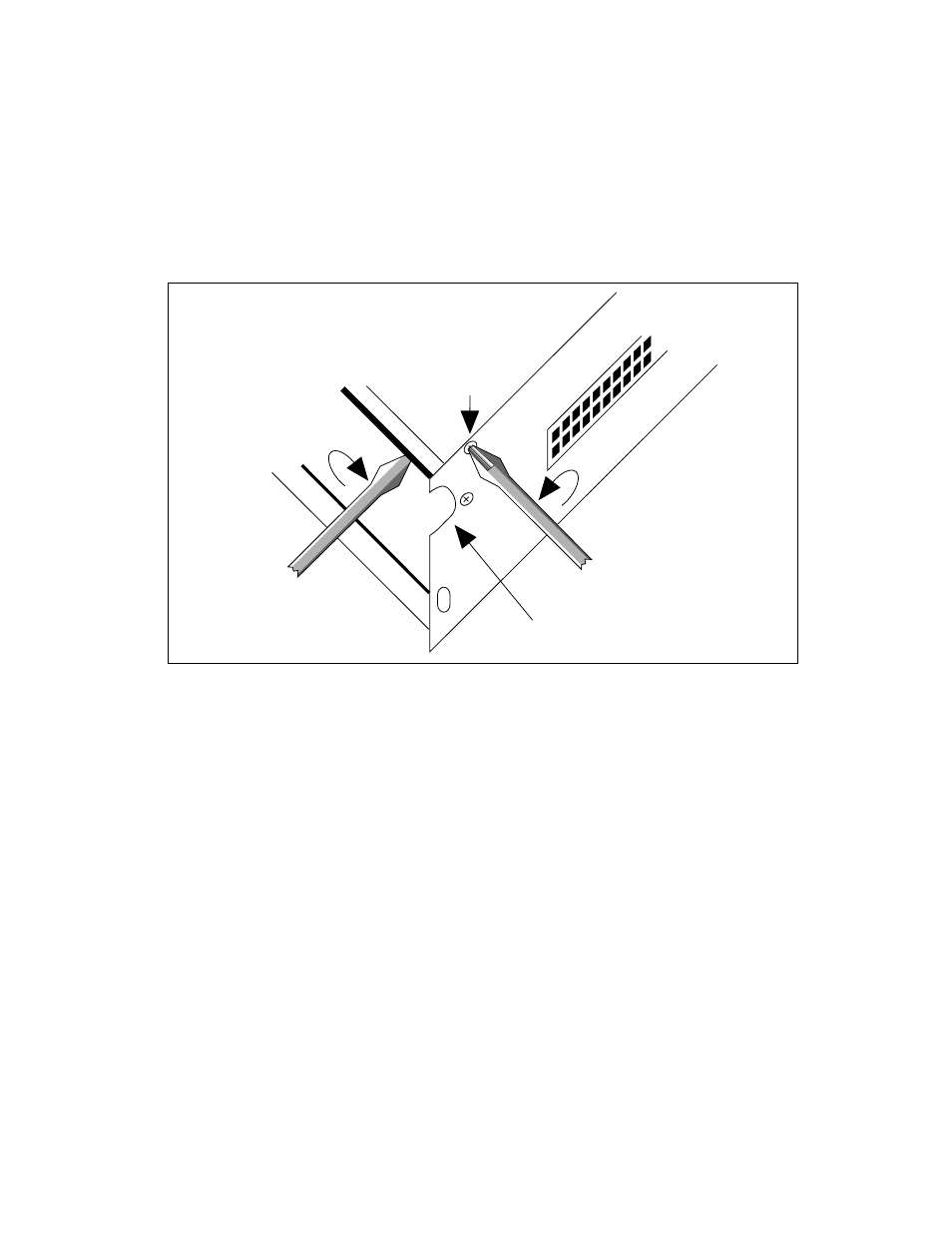

Figure E-4. Cover Removal
SCXI-1302 Installation
Follow these steps to install the SCXI-1302:
1.
Install an SCXI-1180 feedthrough panel as described in the SCXI-1180
Installation section.
2.
Wire the terminal block as described in the SCXI-1302 Wiring
Procedure section.
3.
Connect the SCXI-1302 terminal block to the front panel connector on
the SCXI-1180 feedthrough panel. Be careful to fit the thumbscrews in
the thumbscrew cutouts.
4.
Tighten the top and bottom captive screws on the back of the terminal
block into the screw holes in the front panel. This will hold the
SCXI-1302 securely in place.
5.
Check the installation.
50-Pin
Connector
Grounding
Screw
Thumbscrew Cutout
Step 1
Step 2
Insert Screwdriver in
Groove and Rotate to
Pry Open
