Figure e-3. scxi-1180 front panel installation, Figure e-3, Scxi-1302 wiring procedure – National Instruments SCXI-1121 User Manual
Page 132
Appendix E
SCXI-1121 Cabling
E-10
www.natinst.com

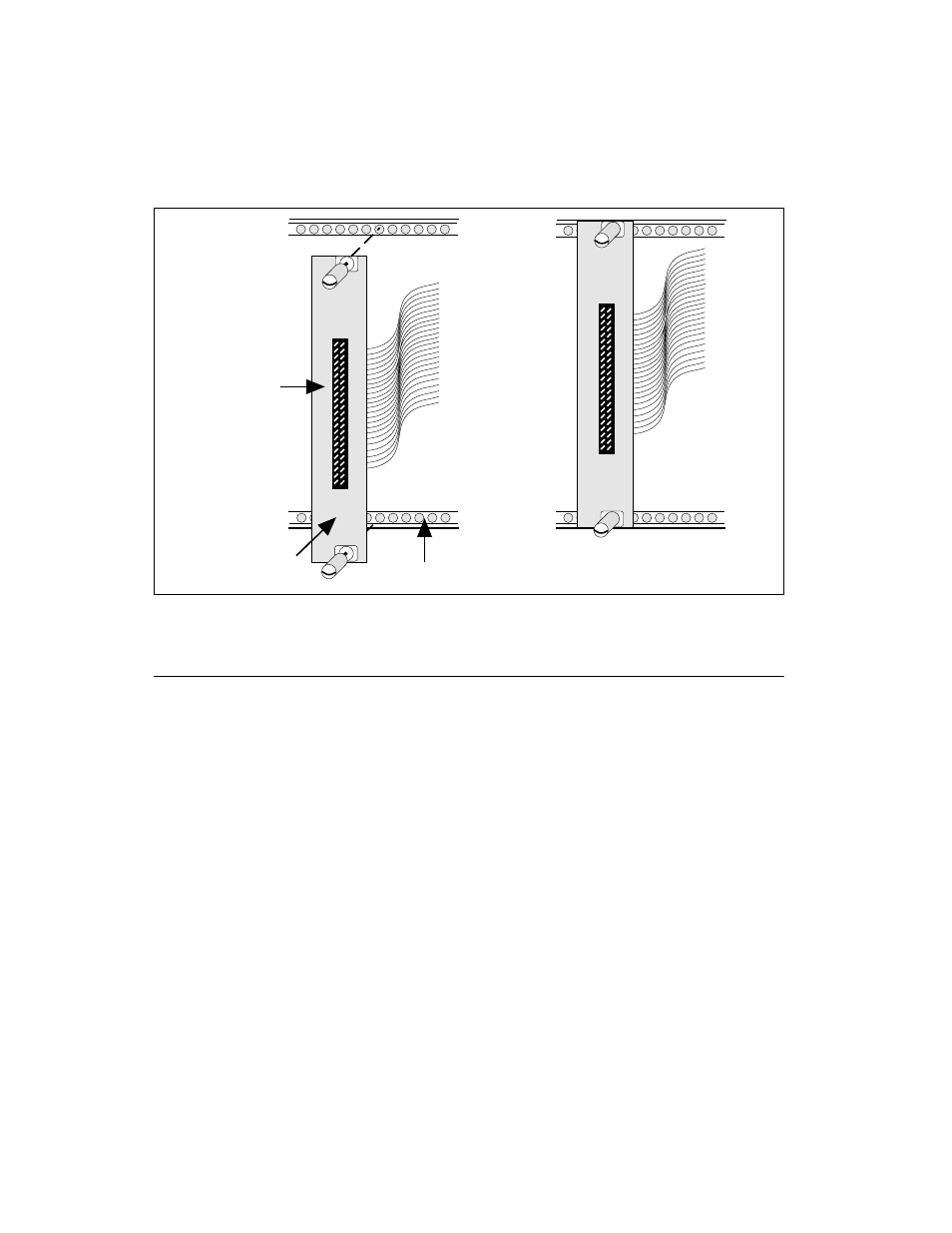

Figure E-3. SCXI-1180 Front Panel Installation
SCXI-1302 50-Pin Terminal Block
The SCXI-1302 terminal block has screw terminal connections for the
50-pin connector on the SCXI-1180 feedthrough panel.
SCXI-1302 Wiring Procedure
To wire the SCXI-1302 terminal block, you must remove the cover, connect
all the wiring, and replace the cover. The procedure for this is as follows:
1.
Unscrew the rear grounding screw on the back of the terminal block,
as shown in Figure E-4.
2.
With a flathead screwdriver, carefully pry the cover off the terminal
block.
3.
Insert each wire through the terminal block strain-relief opening.
4.
Connect the wires to the screw terminals.
5.
Tighten the large strain-relief screws to secure the wires.
Front Panel
Connector
Front Panel
Front Threaded Strip
Ribbon Cable to
Rear and Breakout
Connectors
Step 5
