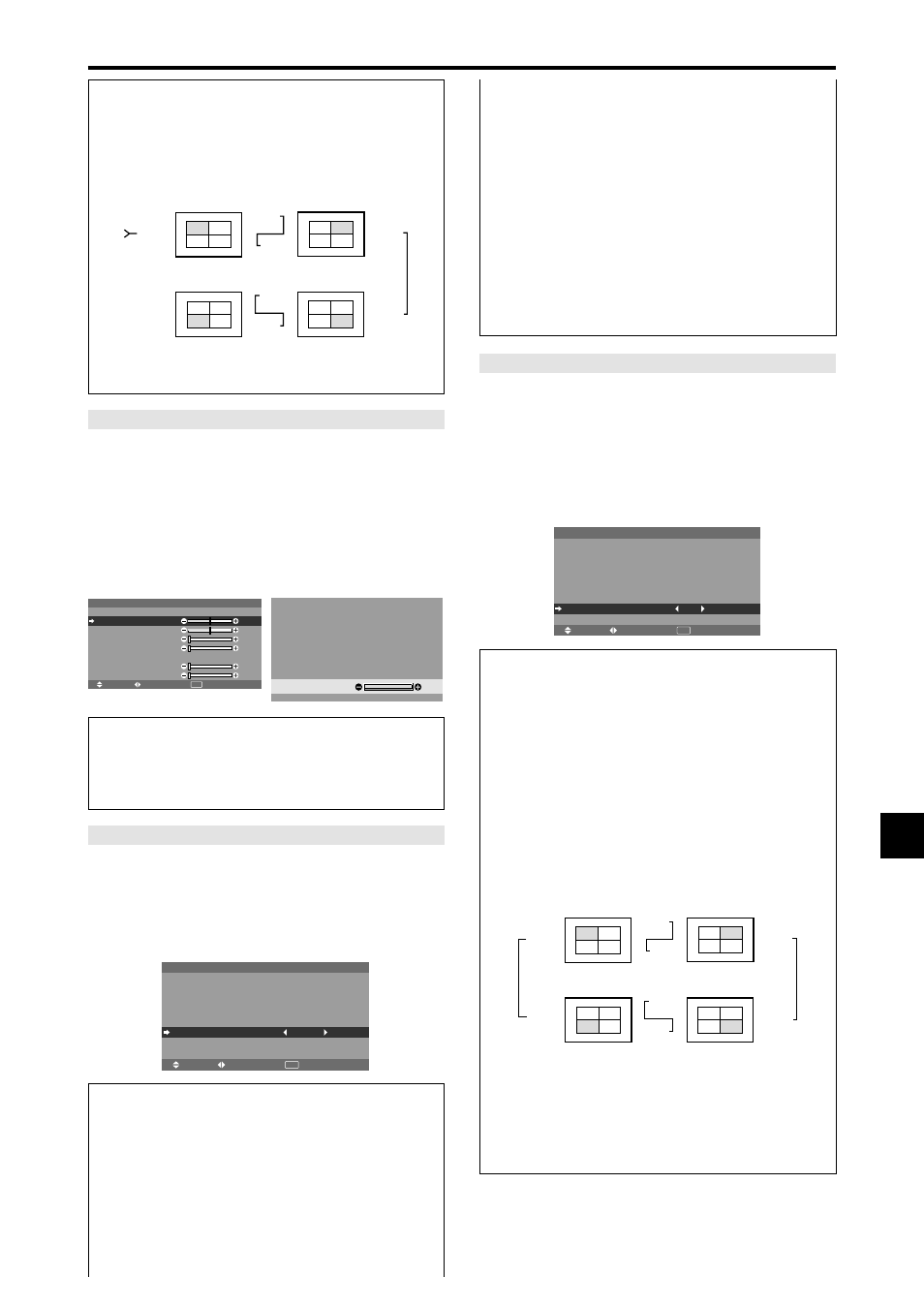

PLE LINK
Use this function to set a uniform brightness for each
display.
Turn on the AUTO ID and set the DIVIDER (at 1, 4 or 9)
before the following operations.
Example: Setting “ON”
On “PLE LINK” of “VIDEO WALL” menu, select “ON”,
then press the MENU/ENTER button.
SEL. ADJ. RETURN
V I D E O WA L L
D I V I D E R
P O S I T I O N
D I S P. M O D E
A U TO I D
I M A G E A D J U S T
P. O N D E L AY
P L E L I N K
R E P E AT T I M E R : 1
: S P L I T
: O F F
: O F F
: O N
: O F F
EXIT
Information
Ⅵ
PLE LINK settings
ON: Sets a uniform brightness for each screen in a video
wall. This can be set only when a 2
×
2 or 3
×
3 video
wall is selected.
OFF: Sets the individual screen brightness for each
screen in a video wall.
* When this function is set “ON”, connect your plasma
displays with the remote cable (optional) in the order of
the position numbers for the 2
×
2 video wall. See the
drawing below.
* If there are changes in the DIVIDER or POSITION,
the PLE LINK will automatically turn OFF.
REMOTE
IN
REMOTE
IN
REMOTE
OUT
REMOTE
OUT
REMOTE
IN
REMOTE
OUT
REMOTE
OUT
REMOTE
IN
No.1 No.2
No.3 No.4
No.1 No.2
No.3 No.4
No.1 No.2
No.3 No.4
No.1 No.2
No.3 No.4
Display 1 Display 2
Display 4 Display 3
* With the 3
×
3 video wall, connect the final display to
the first display the same way as with 2
×
2 video wall.
Note: The remote control can be operated unless the
IR REMOTE is set to “OFF”.
IMAGE ADJUST
The position of the image can be adjusted and flickering
of the image can be corrected.
Example: Adjusting the vertical position
On “VIDEO WALL” menu, select “IMAGE ADJUST”, then
press the MENU/ENTER button.
The “IMAGE ADJUST” screen appears.
On “V-POSITION” of “IMAGE ADJUST” menu, adjust the
position.
SEL. ADJ. RETURN
I M A G E A D J U S T
A S P E C T M O D E
V- P O S I T I O N
H - P O S I T I O N
V- H E I G H T
H - W I D T H
A U TO P I C T U R E
F I N E P I C T U R E
P I C T U R E A D J . : N O R M A L
: O F F
: ± 0
: ± 0
: 0
: 0
: 0
: 0
EXIT
Information
Ⅵ
IMAGE ADJUST settings
These are the same functions as the IMAGE ADJUST
menu on page En-22.
: +64 V- P O S I T I O N
Information
Ⅵ
AUTO ID settings
ON: Enables Auto ID function. In the case shown below,
display 1 will be set as ID 1, display 2 as ID2, etc.
This can be set only when a 2
×
2 or 3
×
3 video wall is
selected.
REMOTE
IN
REMOTE
IN
REMOTE
OUT
REMOTE
OUT
REMOTE
IN
REMOTE
OUT
REMOTE
OUT
REMOTE
IN
No.1 No.2
No.3 No.4
No.1 No.2
No.3 No.4
No.1 No.2
No.3 No.4
No.1 No.2
No.3 No.4
Display 1 Display 2
Display 4 Display 3
OFF: Disables Auto ID function.
P. ON DELAY (Power on delay)
Use this function to activate power-on delay.
Turn on the AUTO ID before the following operations.
Example: Setting “ON”
On “P. ON DELAY” of “VIDEO WALL” menu, select
“ON”.
SEL. ADJ. RETURN
V I D E O WA L L
D I V I D E R
P O S I T I O N
D I S P. M O D E
A U TO I D
I M A G E A D J U S T
P. O N D E L AY
P L E L I N K
R E P E AT T I M E R : 1
: S P L I T
: O F F
: O N
: O F F
: O F F
EXIT
Information
Ⅵ
P. ON DELAY settings
ON: Turns on the main power of each display after a
delay time.
OFF: Turns on the main power of all displays at the
same time.
(Only for 4
×
4 and 5
×
5 video wall modes)
MODE1: Turns on the main power of each display
delayed.
MODE2: Turns on the main power of each display more
delayed.
* Once this function has been set to “ON”, the POWER
ON/OFF button on the remote control does not function
except for the No.1 monitor.
By pressing the POWER ON button on the remote
control the No.1 monitor will turn on and the others
will be turned on one by one automatically.
* From the second monitor onward, neither the POWER
button on the unit nor the POWER ON button on the
remote control works. However, by pressing and holding
the POWER ON button for more than 3 seconds, the
monitor will be turned on.
