NEC MultiSync LCD3215 - Manual

NEC Display Solutions of America, Inc.
LCD3215 Installation Guide
32” LCD Display Rev 1.2
www.necdisplay.com
Contents:
Product Description and Notes Page 1
Tilt Angle and Rotation Page 1
Ventilation Requirements Page 2
Display Dimensions
Front, Top & Right Side Page 3
Rear & Bottom Page 4
Display Dimensions w/Optional Speakers and Stand Page 5
Optional Table Top Stand Dimensions Page 6
Optional Speaker Dimensions Page 7
Optional Wall Mount Kit Dimensions Page 8
Control Codes Page 9
Product Description
Type: LCD Display Screen Surface: Anti-Reflective
Resolution: 1366 x 768 Dimensions: 31.1”(W) x 18.8”(H) x 5.2”(D)
Aspect Ratio: 16:9 Weight: 28.9 lbs
FCC: Class B
Power Consumption: 140W (max) BTU’s: 478 BTU/hour
Notes
This document is intended to be used as a reference guide to supply useful information for a design or installation. It is not intended to
be a step-by step procedure for installation.
Any ceilings or walls must be strong enough to support the monitor and the installation must be in accordance with any local
building codes. All mounts should make secure contact to wood studs.
4:3 sources can be displayed on the 16:9 screen in either normal aspect ratio with bars on the left or right, or stretched horizontally to
fill the screen using the menus (see “Aspect Modes” in menus and user manual).
Distances are in inches, for millimeters multiply by 25.4.
Distances may vary ±5%.

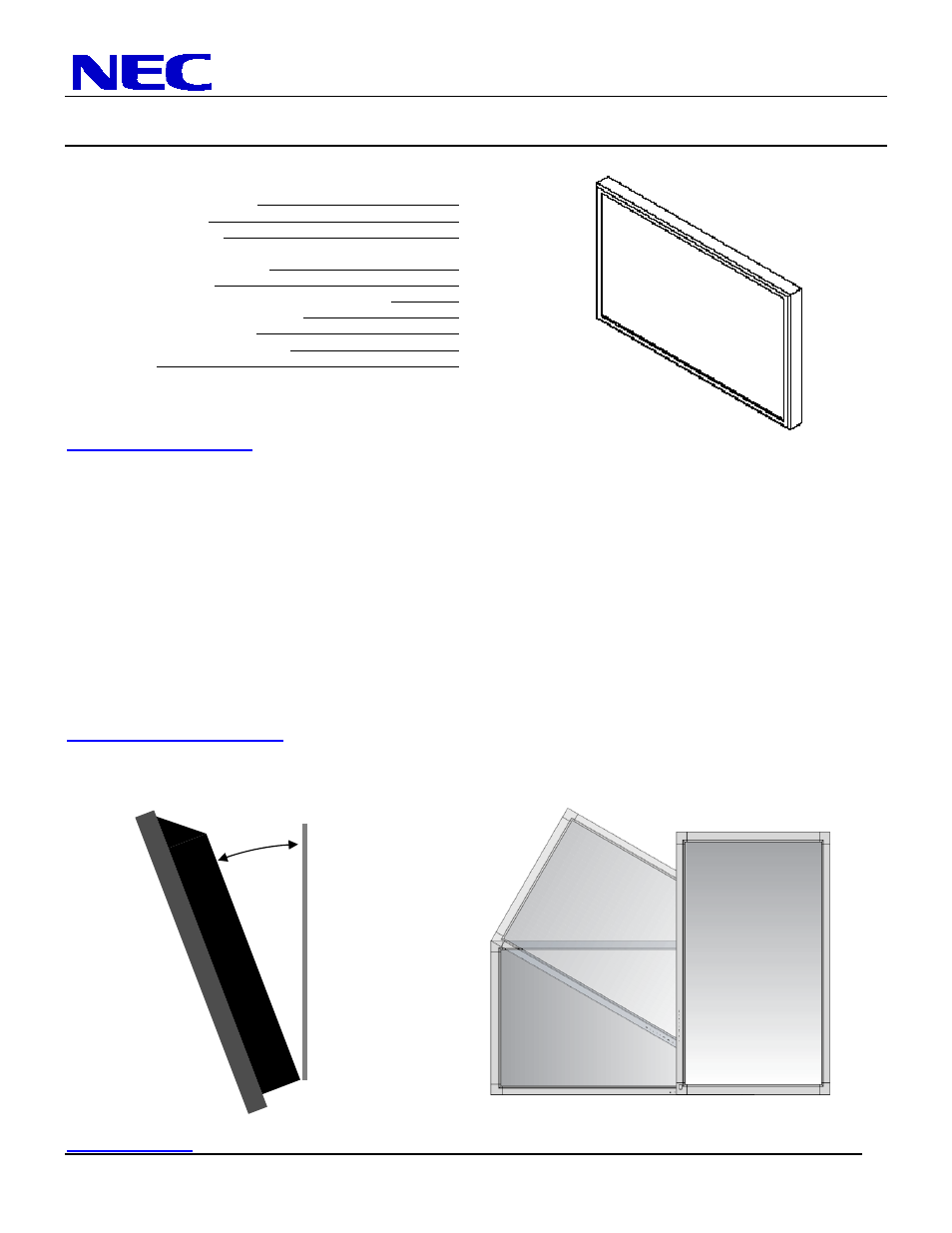

Tilt Angle and Rotation
Below are the maximum angles that the monitor can be tilted in the landscape position only.
Landscape 20deg
Max. 20 deg
LCD3215 Page 1 of 9
