Reference Manual for the ADSL Modem Router DG834 v3

Advanced Configuration

5-11

v1.1, October 2006

In this example:

The Destination IP Address and IP Subnet Mask fields specify that this static route applies to
all 134.177.x.x addresses.

The Modem Router IP Address fields specifies that all traffic for these addresses should be
forwarded to the ISDN router at 192.168.0.100.

A Metric value of 1 will work since the ISDN router is on the LAN.
This represents the number of routers between your network and the destination. This is a
direct connection so it is set to 1.

Private is selected only as a precautionary security measure in case RIP is activated.

How to Configure Static Routes

1. Log in to the router at its default LAN address of

http://192.168.0.1

with its default User Name

of admin, default password of password, or using whatever User Name, Password and LAN
address you have chosen for the router.

2. From the Main Menu of the browser interface, under Advanced, click Static Routes to view

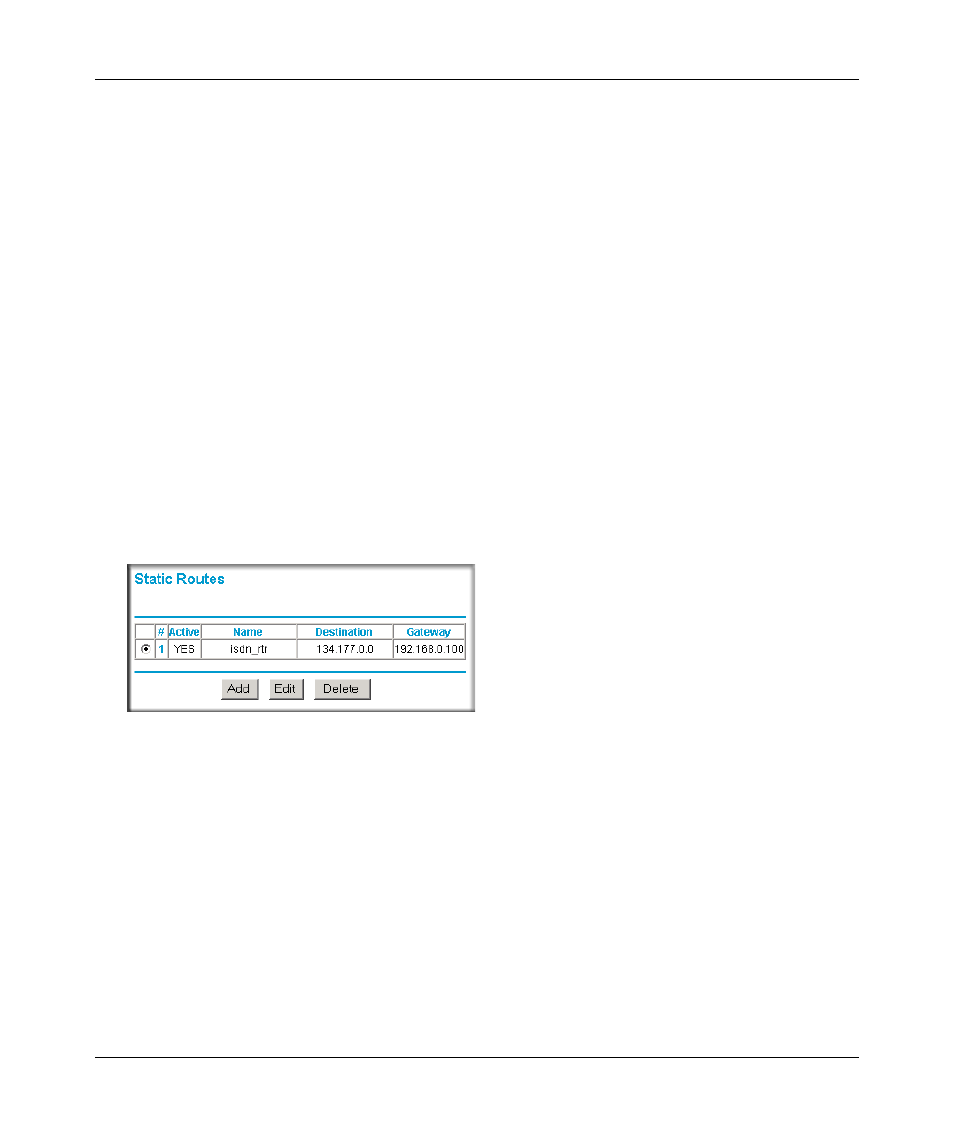

the Static Routes menu, shown in

Figure 5-5

.

Figure 5-5
