Reference Manual for the ADSL Modem Router DG834 v3
B-2 NETGEAR VPN Configuration
v1.1, October 2006
Step-By-Step Configuration
1. Configure the DG834 v3 as in the Gateway-to-Gateway procedures using the VPN Wizard
(see “How to Set Up a Gateway-to-Gateway VPN Configuration” on page 6-20 ), being certain
to use appropriate network addresses for the environment.
The LAN Addresses used in this example are as follows:
a. In Step 1, enter toFVL328 for the Connection Name.
b. In Step 2, enter 22.23.24.25 for the remote WAN's IP address.
a. In Step 3, enter the following:
• IP Address = 172.23.9.1
• Subnet Mask = 255.255.255.0

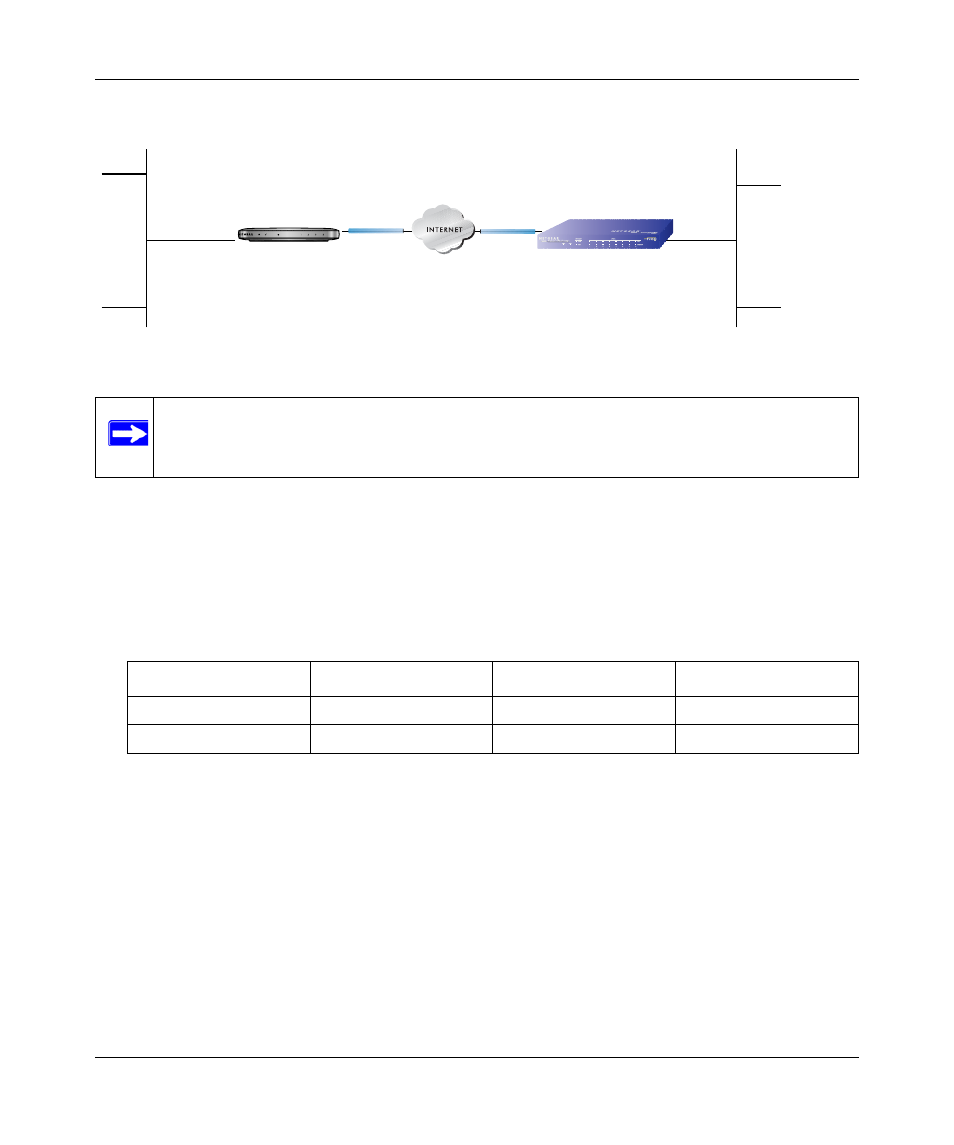

Figure B-1
Note: Product updates are available on the NETGEAR, Inc. web site at
http://kbserver.netgear.com/DG834 v3.asp .
Device WAN IP Address LAN IP Address LAN Subnet Mask
DG834 v3 14.15.16.17 10.5.6.1 255.255.255.0
FVL328 22.23.24.25 172.23.9..1 255.255.255.0
Gateway A
22.23.24.25 14.15.16.17
10.5.6.0/24 172.23.9.0/24
172.23.9.1 10.5.6.1
WAN IP WAN IP
LAN IP LAN IP
Gateway B
VPNC Example
Network Interface Addressing
DG834 FVL328
