Reference Manual for the ADSL Modem Router DG834 v3

6-44

Virtual Private Networking (Advanced Feature)

v1.1, October 2006

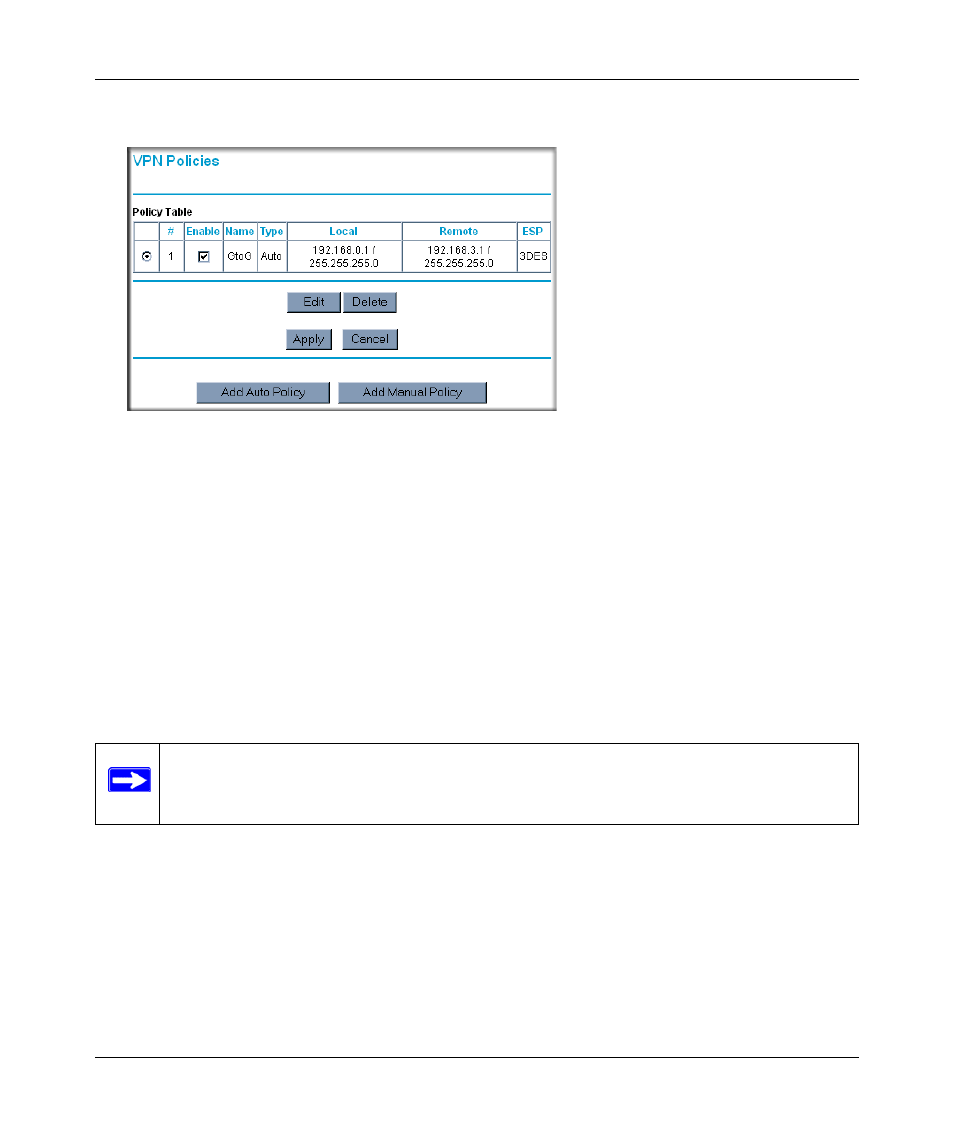

5. Click Apply. The Get VPN Policies web page is displayed.

6. Repeat for the DG834 v3 on LAN B and pay special attention to use the following network

settings as appropriate.

•

General, Remote Address Data (e.g., 14.15.16.17)

•

Remote LAN, Start IP Address

— IP Address (e.g, 192.168.0.1)

— Subnet Mask (e.g., 255.255.255.0)

— Preshared Key (e.g., 12345678)

7. Use the VPN Status screen to activate the VPN tunnel by performing the following steps:

Figure 6-45

Note: The VPN Status screen is only one of three ways to active a VPN tunnel. See

for information on the other ways.
