LED functionality 27
Installation
The following table shows the status of link activity for the BSG8ew WAN port LED:

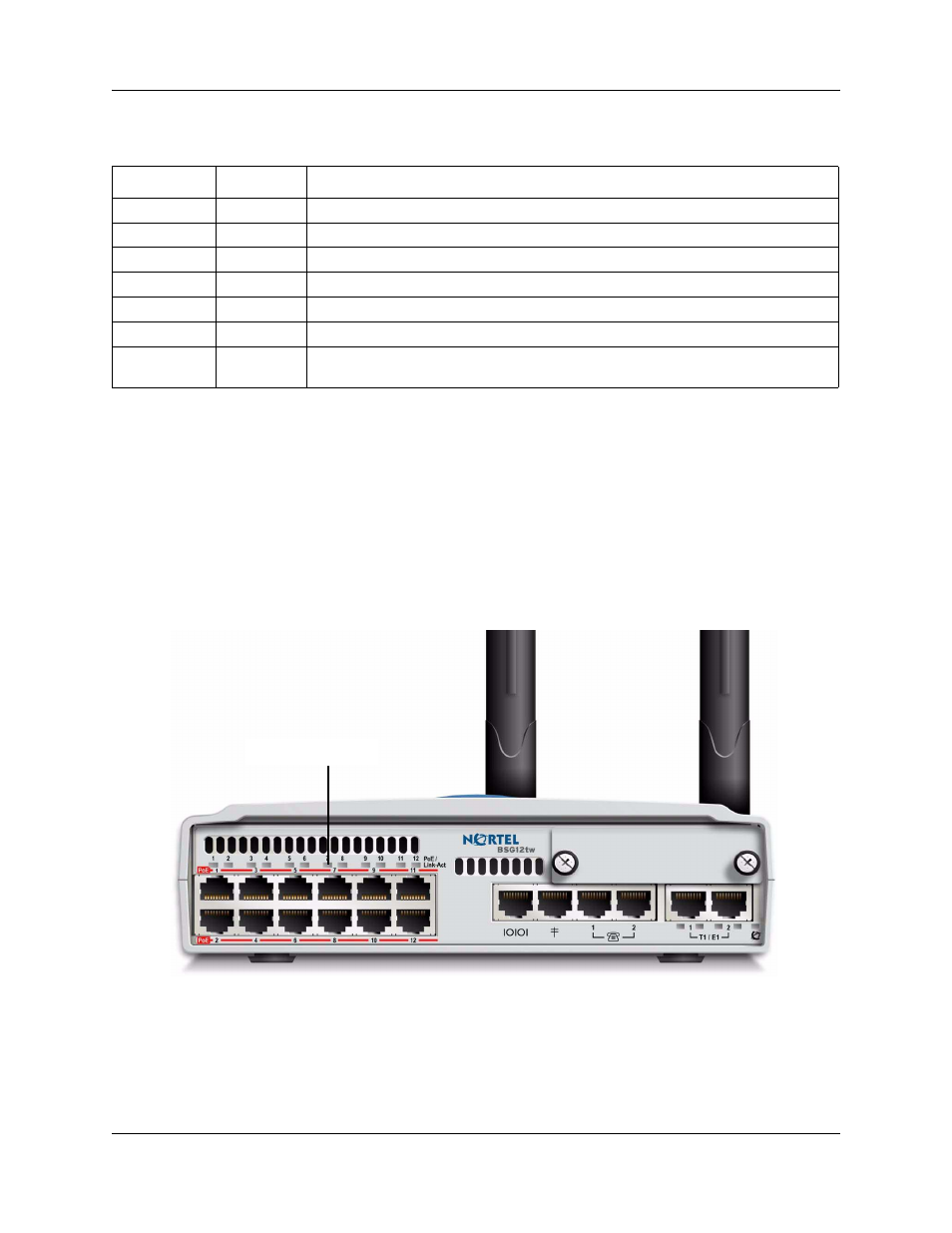

BSG12ew/aw/tw link activity and PoE LEDs
Each LAN port on the BSG12ew/aw/tw has one LED that indicates link activity and one PoE
LED. The link activity LED turns on when an Ethernet cable is connected to the corresponding
port. The PoE LED indicates whether PoE is enabled. For more information, see
tw link activity LEDs” on page 27
,
“BSG12ew/aw/tw POE LEDs” on page 28
, and the following
table.
BSG12ew/aw/tw link activity LEDs
Link/Act LED
Status
Description
Green
On
The WAN/LAN port is Link Up at 100 Mb/s.
Green
Flashing
The WAN/LAN port is sending or receiving data.
Green
Off
The WAN/LAN port is not operating.
Amber
On
The WAN/LAN port is Link Up at 10/10 Mb/s.
Amber
Flashing
The WAN/LAN port is sending or receiving data.
Amber
Off
The WAN/LAN port is not operating.
Both WAN/
LAN port LEDs
Off
No connection.
Link activity LEDs
