2. Startup

2.1 Login into the System

First of all, connect your computer to MICRONET SP5008A / SP5018A / SP5058A’s

LAN port by using DHCP. The IP address assign to your computer should be

192.168.123.x by default. Once you can get the IP address from MICRONET

SP5008A / SP5018A / SP5058A, you can start the configuration as below.

Step 1. Connect LAN port to your managing PC. Or, connect the gateway with PC

by hub/switch.

Step 2. Launch your web browser with

http://192.168.123.123/

. Please configure

IP address of PC with 192.168.123.x. Or set up your PC in DHCP mode to

get IP address automatically.

Step 3. The Password screen now appears. Type “root” in the user name field,

and your password (none by default) in the password field.

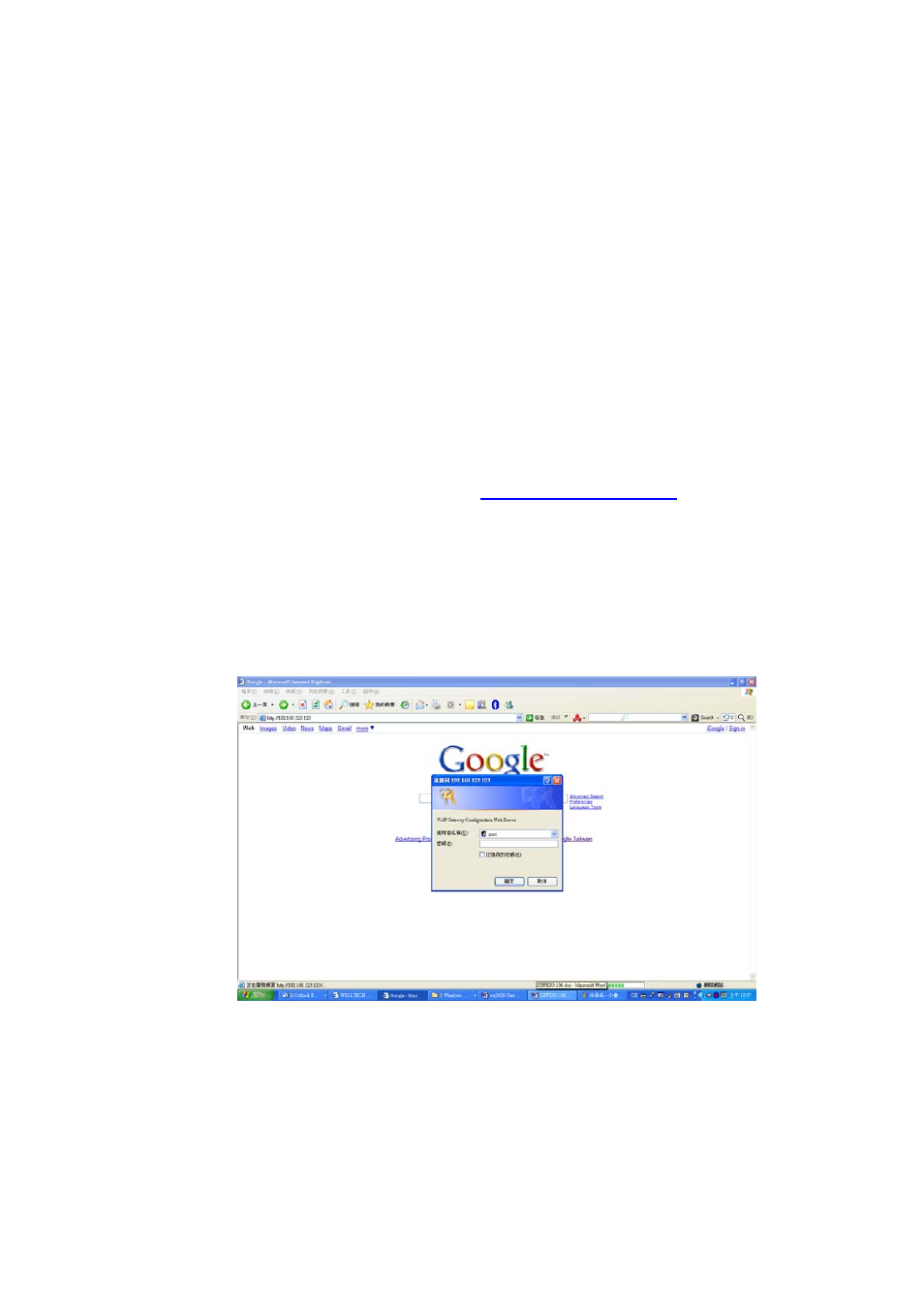

Step 4. You will enter the main page of the web configuration interface after you

keyed in the username and password correctly (see figure below).
