Chapter 5 Using the SCXI-1503
SCXI-1503 User Manual 5-2 ni.com

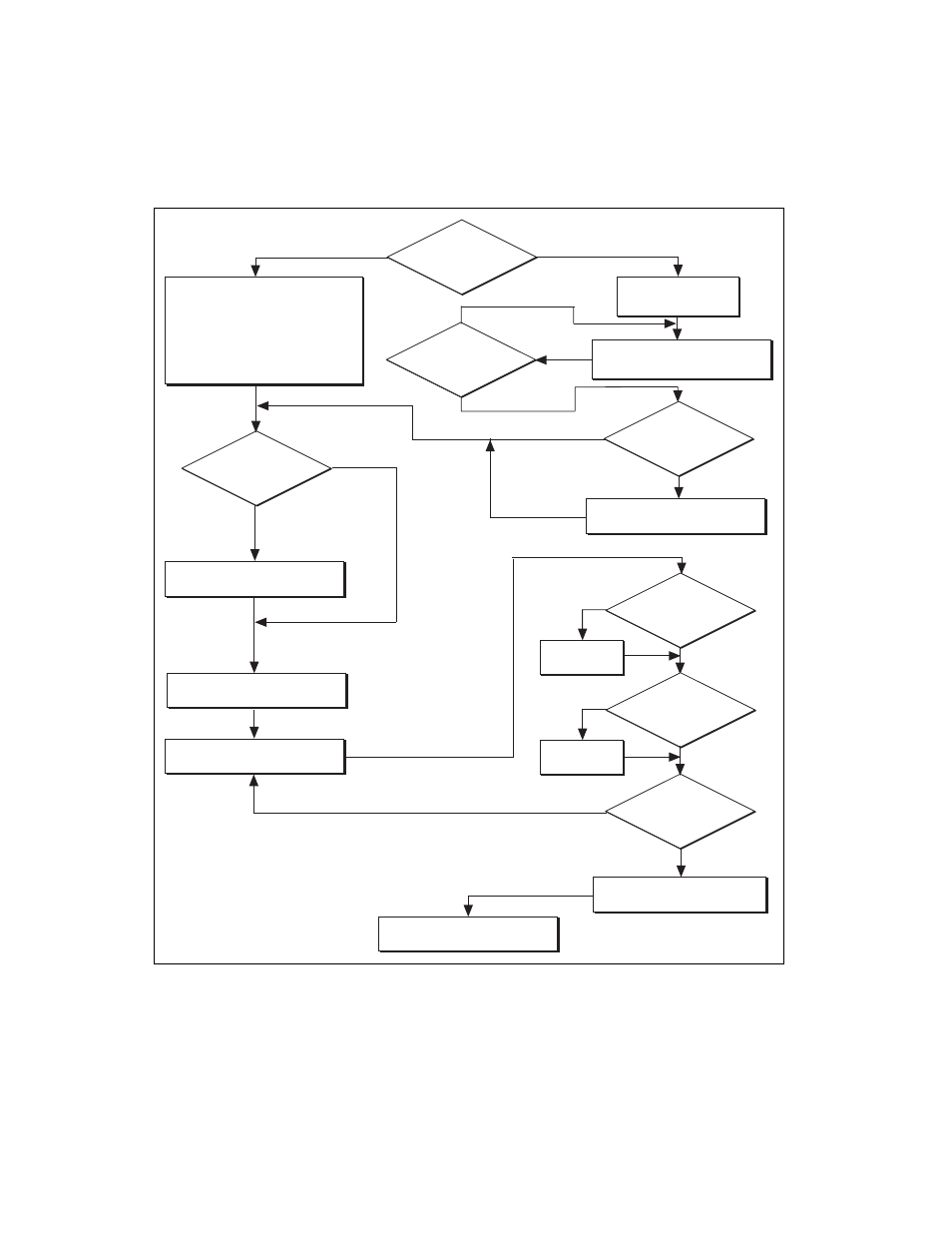

Figure 5-1. Typical Program Flowchart for Voltage Measurement Channels
Yes
Create Channel
Adjust Timing Settings
Create a Task
Programmatically
Create Task in
DAQ Assistant
or MAX
No Hardware
Timing/Triggering?
Create Task Using
DAQ Assistant?
No Yes
No
Yes
Configure Channels
Further Configure
Channels?
Start Measurement
Read Measurement
Clear Task
Continue Sampling?
Stop Measurement
Yes
No
Analyze Data?
Display Data?
No
No
Process
Data
Graphical
Display Tools
Yes
Yes
Create Another
Channel?
No
Yes
