7 Your Digital Terrestrial Receiver
EN
G
LI
SH
2.2 What you also need (not supplied)
RF Cable TV Set
Front Panel
A Standby
B Programme -
C Programme +
D Record
E Display
F Front panel door
Rear Panel
A RF IN *
B RF OUT *
C AUX scart *
D TV scart *
E SPDIF audio out (digital) *
F L/R audio out * (analogue)
G HDMI *
H Power **
I ON/OFF Switch **
* Safety extra low voltage
** Hazardous voltage
Remote control unit
A Standby
B Source selection
C Alphanumeric keypad, Exit, Back
D Programme information
E Up/Down
Left/Right
OK keys
F Recorder functions
G Volume control
Programme+/Programme-
H System keys Menu Fav list,

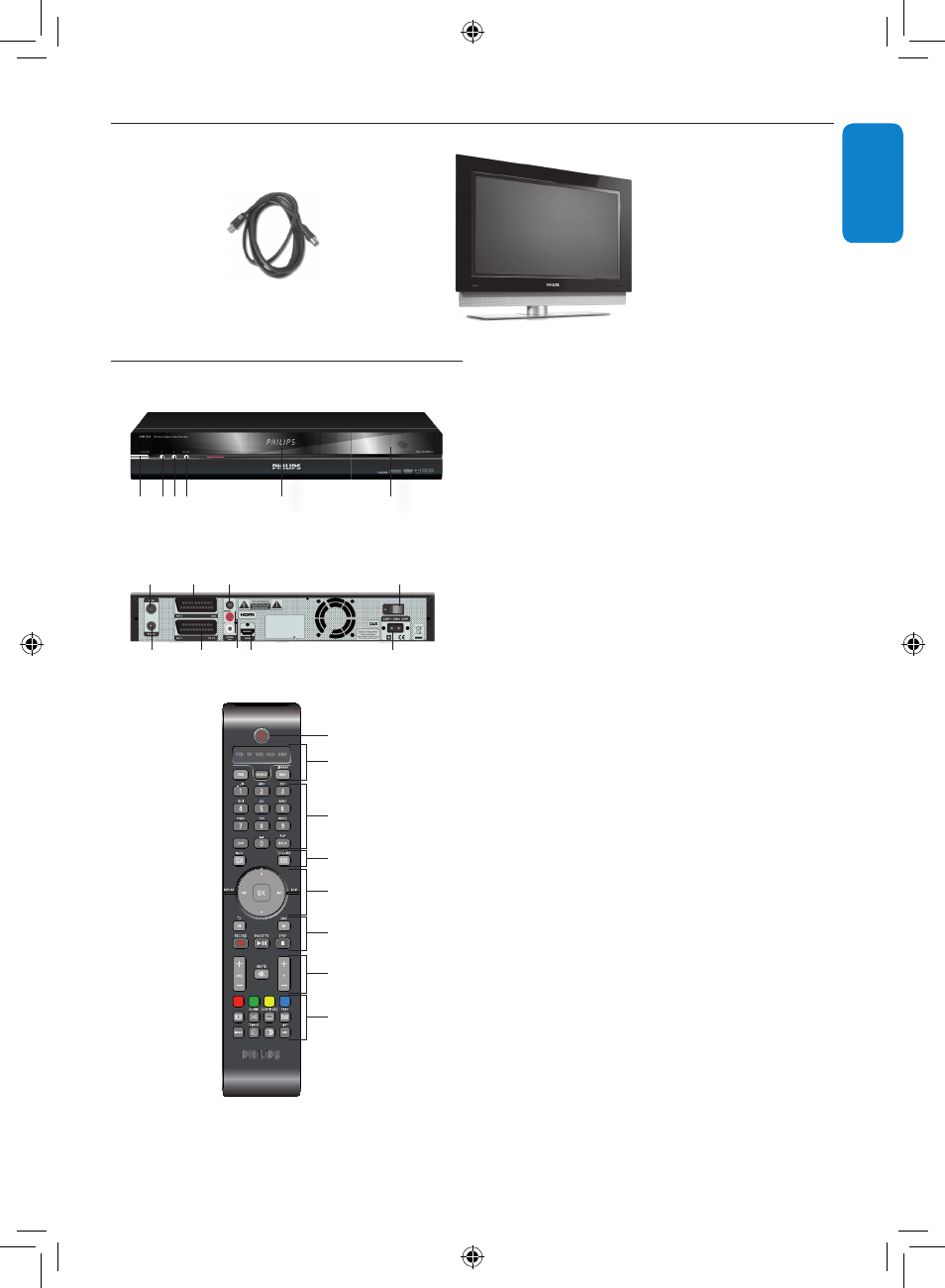

2.3 Digital Terrestrial Receiver
overview
Front Panel
Rear Panel
Remote control unit
A B CD E F
A
B
C
D
E I C A
B D G H F
E
F
G
H
