Philips Semiconductors Linear Products Product specification
NE/SA/SE5512 Dual high-performance operational amplifier
78 August 31, 1994 853-0948 13721
DESCRIPTION
The 5512 series of high-performance operational amplifiers provides
very good input characteristics. These amplifiers feature low input
bias and voltage characteristics such as a 108 op amp with
improved CMRR and a high differential input voltage limit achieved
through the use of a bias cancellation and PNP input circuits with
collector-to-emitter clamping. The output characteristics are like
those of a 741 op amp with improved slew rate and drive capability,
yet have low supply quiescent current.
APPLICATIONS
•
AC amplifiers
•
RC active filters
•
Transducer amplifiers
•
DC gain block
•
Battery operation
•
Instrumentation amplifiers
FEATURES
•
Low input bias <
±
20nA
•
Low input offset current <
±
20nA
•
Low input offset voltage <1mV
•
Low VOS temperature drift 5
µ
V/
°
C
•
Low input bias temperature drift 40pA/ ° C
•
Low input voltage noise 30nV/
√
Hz
•
Low supply current 1.5mA/amp
•
High slew rate 1.0V/
µ
s
•
High CMRR 100dB

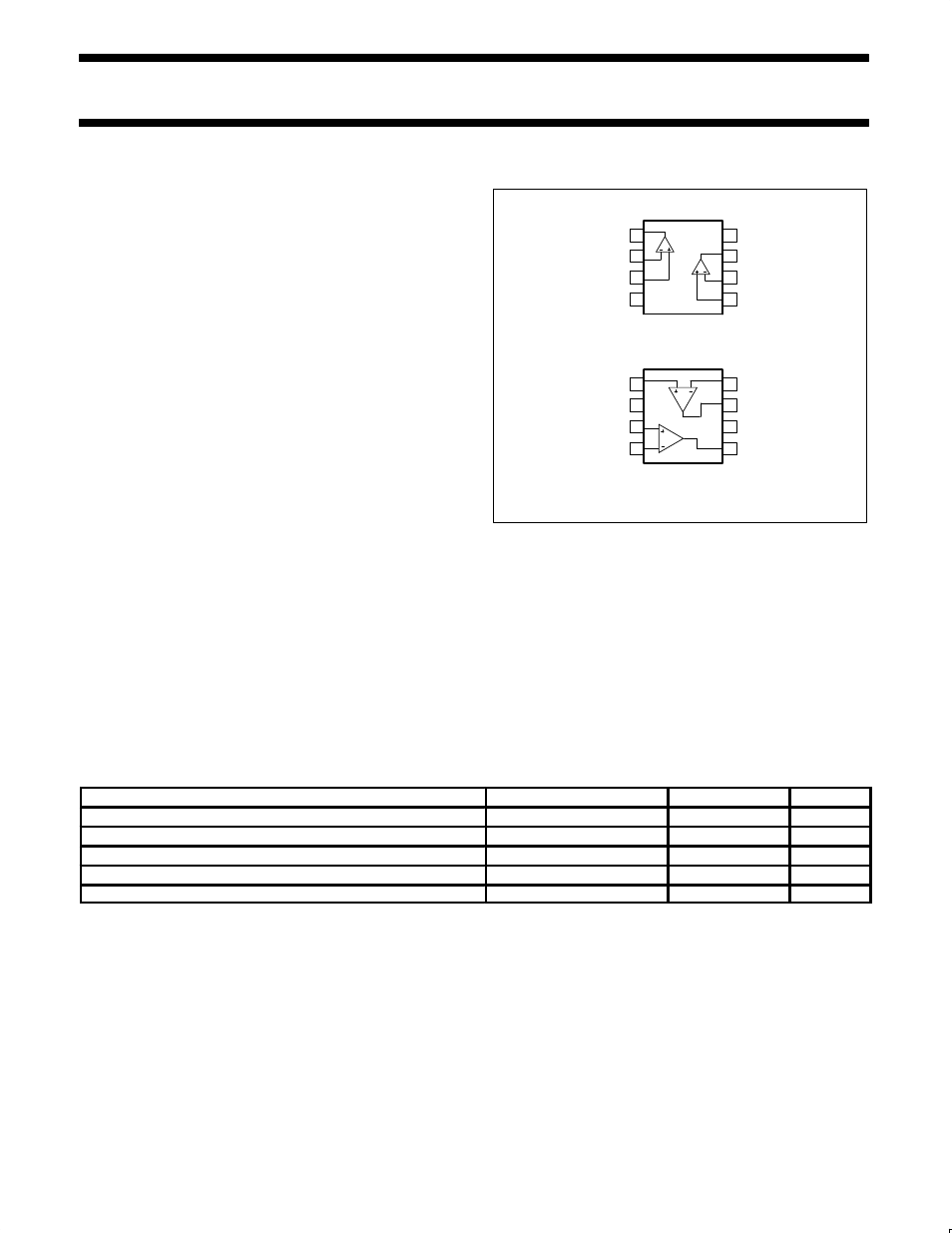

PIN CONFIGURATIONS
N Package
D Package 1
NOTE:
1. The D package pinout is not functionally identical
to the N pinout.
8
7
6
5 4
3
2
1 OUTPUT 1
-INPUT 1
+INPUT 1
V-
V+
OUTPUT 2
-INPUT 2
+INPUT 2
8
7
6
5 4
3
2
1 + INPUT 1
-INPUT 2
+INPUT 2
V-
V+
OUTPUT 1
-INPUT 1
OUTPUT 2
TOP VIEW
TOP VIEW
1
2
•
High input impedance 100M Ω
•
High PSRR 110dB
•
High differential input voltage limit
•
No crossover distortion
•
Indefinite output short circuit protection
•
Internally-compensated for unity gain
•
600 Ω drive capability
•
MIL-STD processing available
ORDERING INFORMATION
DESCRIPTION TEMPERATURE RANGE ORDER CODE DWG #
8-Pin Plastic Small Outline (SO) Package 0 to 70 ° C NE5512D 0174C
8-Pin Plastic Dual In-Line Package (DIP) 0 to 70
°
C NE5512N 0404B
8-Pin Plastic Small Outline (SO) Package -40 to +85 ° C SA5512D 0174C
8-Pin Plastic Dual In-Line Package (DIP) -40 to +85
°
C SA5512N 0404B
8-Pin Plastic Dual In-Line Package (DIP) -55 to +125
°
C SE5512N 0404B
