Use more of your Digital Terrestrial Receiver
22
5
Use more of your Digital
Terrestrial Receiver
This chapter gives a complete description the
functionalities of your Digital Terrestrial Receiver.

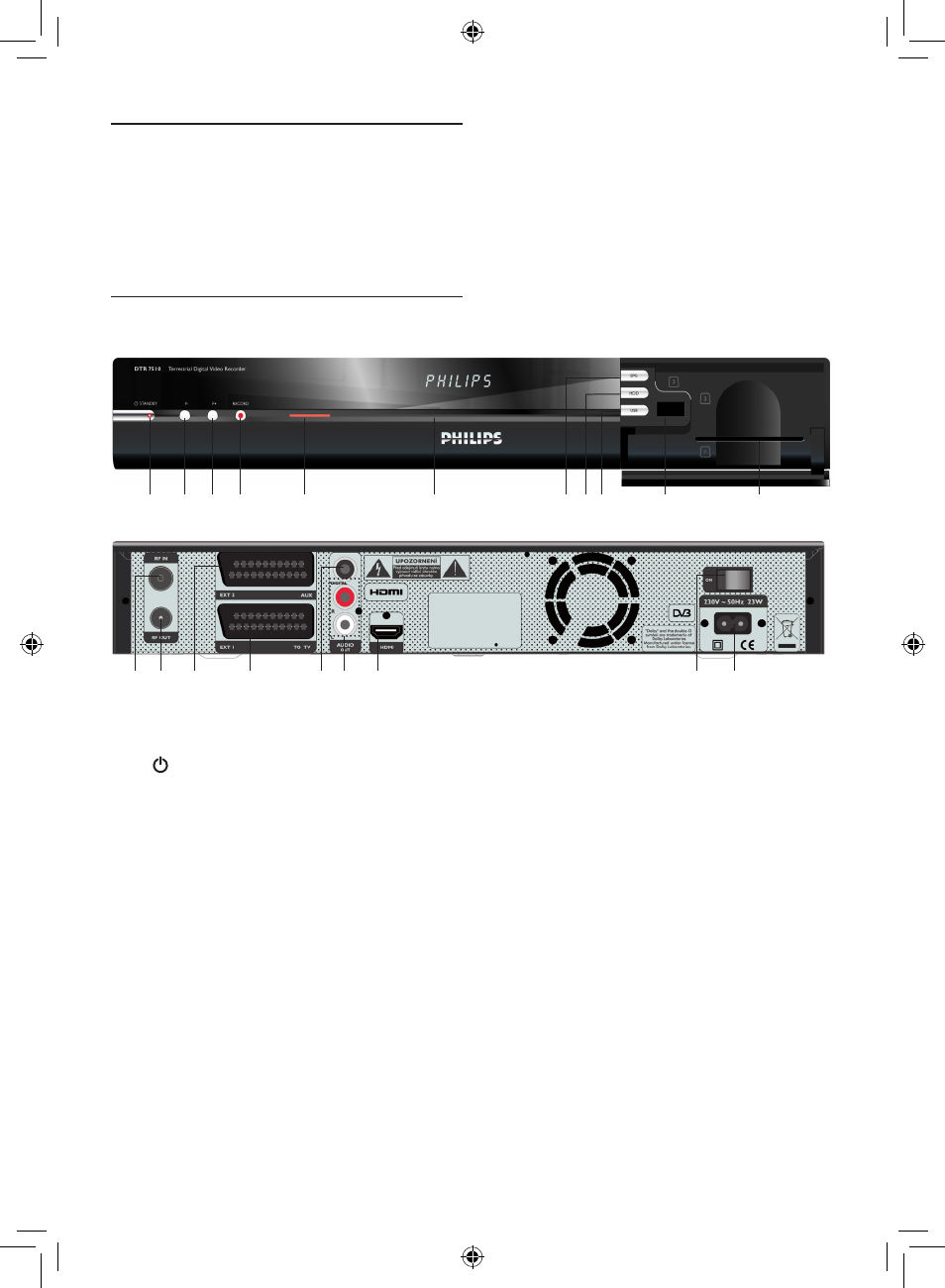

5.1
Digital Terrestrial Receiver full
overview
Front Panel
Rear Panel
Front Panel
1
STANDBY button with indicator, switch
to standby/wake up
Green LED: watching mode
Red LED: standby mode
Orange LED: initialisation mode
2
P-, previous programme
3
P+, next programme
4
RECORD, instant recording
5
Recording LED, indicates recording
6
Display panel
7
EPG, open/close EPG
8
HDD, open/close HDD library
9
USB, access USB contents
10 USB connector*
11 Smart card reader
Rear Panel
1
RF IN*, input to connect your aerial cable
from the wall socket
2
RF OUT*, output to connect your
recorder to a VCR/TV set/another
receiver
3
AUX scart* output to connect your
external recorder or DVD player
4
TV scart*, output to connect your TV set
5
SPDIF*, digital audio output
6
L/R audio*, Left/Right analogue audio
outputs
7
HDMI*, output to connect your TV set
with HDMI input
8
ON/OFF switch**, turn on/off your Digital
Terrestrial Receiver
9
Power**, output to connect the mains
cord
* Safety extra low voltage
** Hazardous voltage
1 2
3
4
5 6 7
9
8
1
2 3 4
5
6
7 8 9
10
11
