4 Getting Started
D. IDENTIFYING THE PARTS
Front Panel and Top

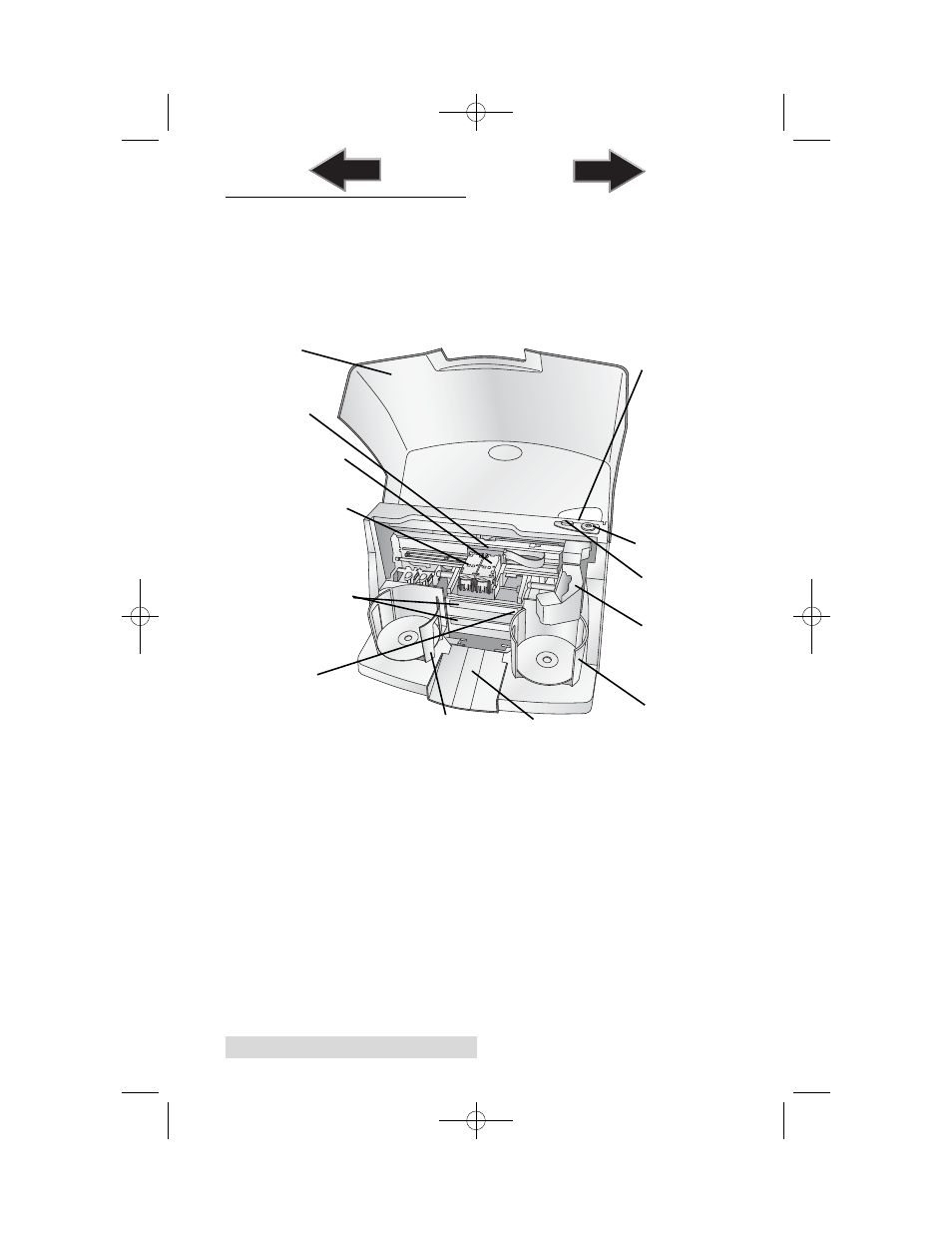

This illustration shows the Publisher, its Control Panel,
Buttons, LED indicator lights, Input and Output Bins and
other components.
The Robotic Disc Transporter moves discs from the Input Bin,
to a CD/DVD Recorder, to the printer, and finally to the
Output Bin.
The CD/DVD Recorder is automatically loaded and unloaded
by the Publisher's Robotic Disc Transporter.
The Recorder Tray Button manually opens or closes the
Recorder Tray. In normal operation, the in/out movement of
the Recorder Tray is controlled automatically and this button is
not used.
Color Ink Cartridge
Monochrome Black
Cartridge
Reject/Kiosk Area
CD/DVD Recorders
Front Cover Control Panel /
Status Lights
Ink Cartridge
Carrier
Robotic Disc
Transporter
Output Bin
Power Button
Ink Cartridge
Button
Input Bin
Recorder Tray
Button
