Hotwire DSLAM System Description
1-2
8000-A2-GB26-10
January 1999

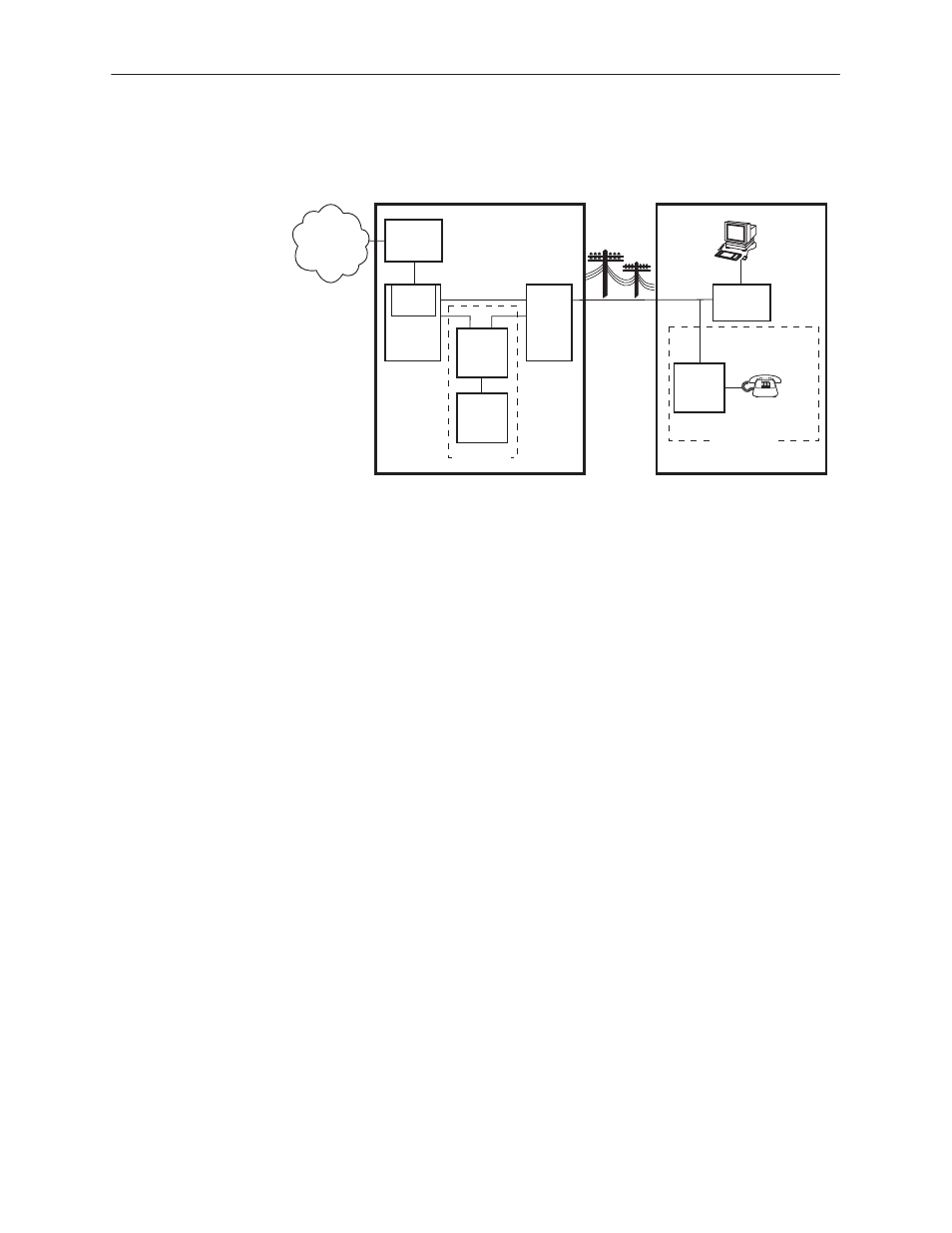

The following illustration shows a typical Hotwire configuration.
Legend: DSL - Digital Subscriber Line
SN - Service Node
MDF - Main Distribution Frame
POTS - Plain Old Telephone Service
IPC - Interworking Packet Concentrator
DSL
CARD
DSLAM
Central Office (CO)
98-15974
Customer Premises (CP)
Ethernet
SN
CP
POTS
Splitter
CO
POTS
Splitter
MDF
POTS/DSL
Hotwire
IPC
Voice
Interface
Data
Interface
POTS
Network
Service
Provider
Optional
Optional
CO
Switch
Hotwire DSLAM Components
The minimum hardware requirements for a Hotwire DSLAM system consists of
the following components:
H
One Hotwire 8600, 8800, or 8810 DSLAM chassis
H
One MCC card
H
One 8310 MVL or 8510 RADSL card
