Operation
48
Powerware
®
9150 User’s Guide
:
www.powerware.com
1
2
3
4
7
8
6
5
9
Male Connector
(LanSafe III/FailSafe III or Modem)
5
4
3
2
8
7
9
1
6
Female Connector
(OnliNet or ConnectUPS)

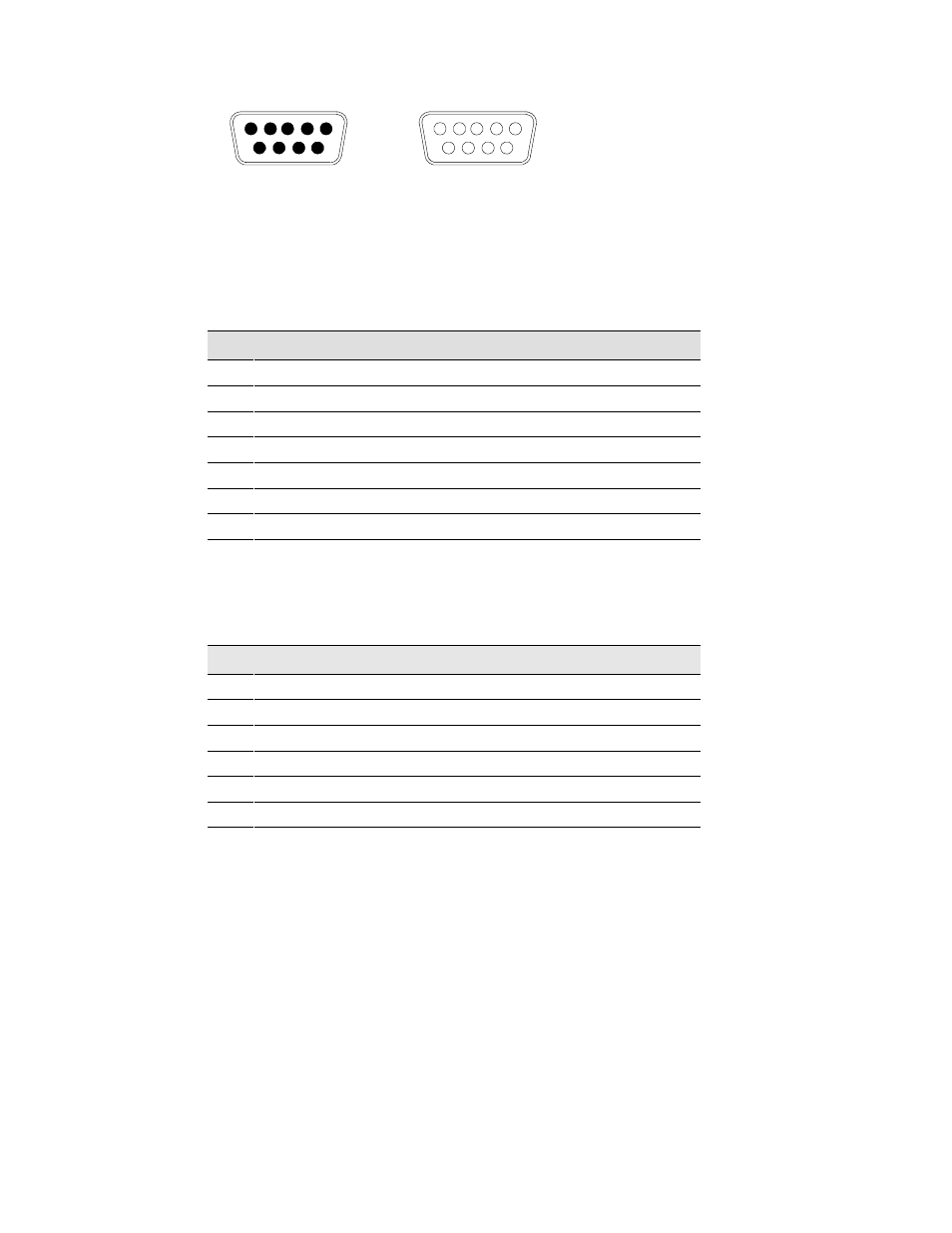

Figure 20. 9-Pin Serial Port
Use the female connector for a computer running OnliNet software or
for a ConnectUPS Adapter. The communication settings are 19200 baud,
1 start bit, 8 data bits, No parity, and 1 stop bit. See the following table
for pin assignments.
RS-232 Connection (Female)
Pin 1
Received data
Pin 2
Transmitted data
Pin 3
AC input failure, closing to Pin 4
Pin 4
Signal ground
Pin 5
Impending battery low, closing to Pin 4
Pin 8
+DC auxiliary power
Pin 9
Chassis ground
Use the male connector for a computer running LanSafe III/FailSafe III
software or for a modem connection. The communication settings are 1
start bit, 8 data bits, No parity, 1 stop bit, and XON/XOFF. The baud rate
is factory-set for 1200 baud and can be changed with a menu invoked by
sending
Control-C
to the UPS. See the following table for pin assignments.
RS-232 Connection (Male)
Pin 1
Data carrier detected
Pin 2
Received data
Pin 3
Transmitted data
Pin 4
Data terminal ready
Pin 5
Signal ground
Pin 7
Ready to send
