Installation
32 Powerware ® 9150 User’s Guide
:
www.powerware.com
Battery Cable
Cover Plate
Battery Connector
UPS
EBC
EBC
EBC Cover Plate (for
additional EBCs)
Battery Cable

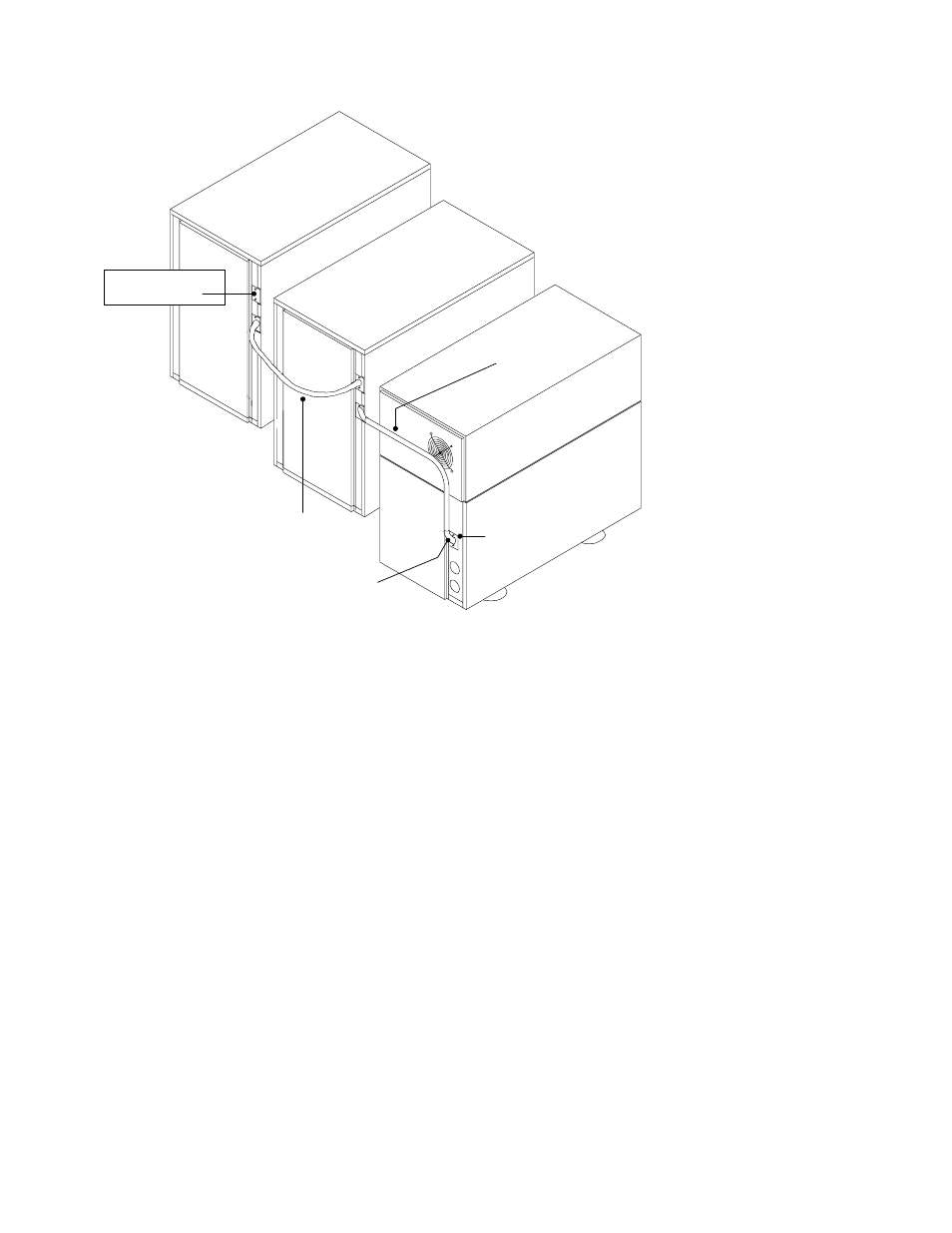

Figure 13. Connecting the EBC
7. If additional battery cabinets are used, remove the EBC cover
plate on the first battery cabinet. Pull the battery connector out
of the EBC, cut the tie-wrap, and discard the cover plate.
Plug the battery cable from the second EBC into the battery
connector of the first EBC and secure the cover plate. Follow
this procedure for each battery cabinet.
8. Disconnect the safety wire from the circuit breakers on each
battery cabinet and switch the breakers to the ON position (see
Figure 12).
9. Reinstall the EBC front panel(s).
