6

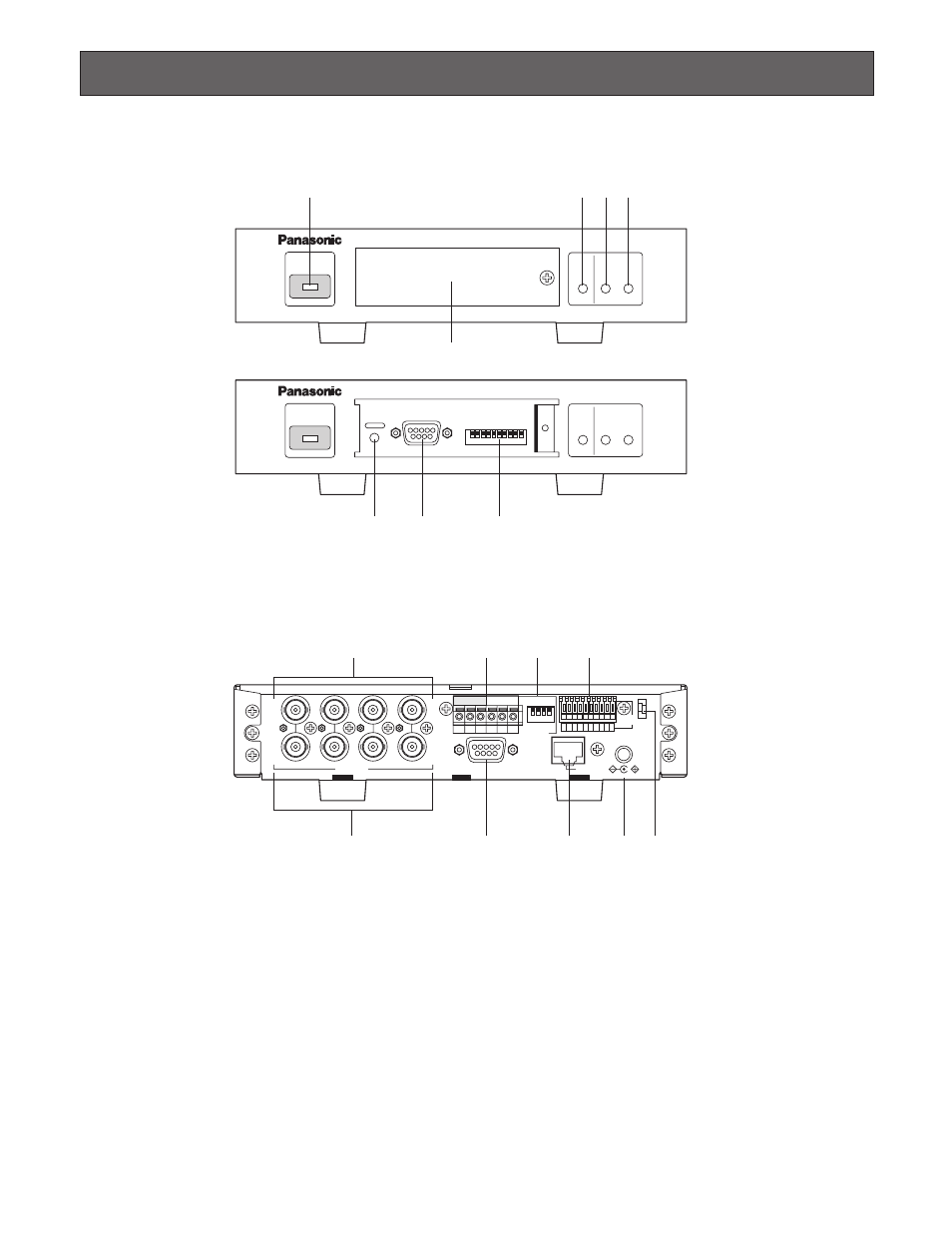

MAJOR OPERATING CONTROLS AND THEIR FUNCTIONS
■ Front View
■ Rear View
RS-232C
G 8 7 6 5 G 4 3 2 1 G B A G B A
XMT RCV SET UP
RS485
VIDEO
IN 4 3 2 1
4 3 2 1 OUT
ALARM
DC 12V
IN
10BASE-T
o !0 !1 !2
!3 !4 !5 !6 !7
LINK RCV XMT
OPERATE
Network Interface Unit WJ-NT104
LINK RCV XMT
OPERATE
Network Interface Unit WJ-NT104
RS232C MODE RESET
q w e r
t
y u i
q Operate indicator [OPERATE]
Is on while the power of the WJ-NT104 is turned on.
w Link indicator [LINK]
Lights when the unit is connected to a normally operat-
ing network.
e Receiving indicator [RCV]
Lights when data is received from the network.
r Transmitting indicator [XMT]
Lights when data is transmitted to the network.
t Front panel
y Reset button [RESET]
Used to set or change a mode, or to restart.
u RS-232C port [RS232]
Used as an alternative to the RS-232C port !4 on the
rear panel.
