■ Camera Menu Setup
This is software to control the camera menu of the WV-CS654 and CS854 (optional).
It allows a user to open the menu of a camera connected to the WJ-NT104 with a coaxial cable and select preset position
and other camera settings.
● Operation
q Connect the RS-232C port on the front of the WJ-NT104 and the RS-232C port of the PC with an RS-232C cable.
w Set bits #7 and #9 of the MODE selector to ON position (leave the others on OFF), and then press the RESET button on the
front of the WJ-NT104.

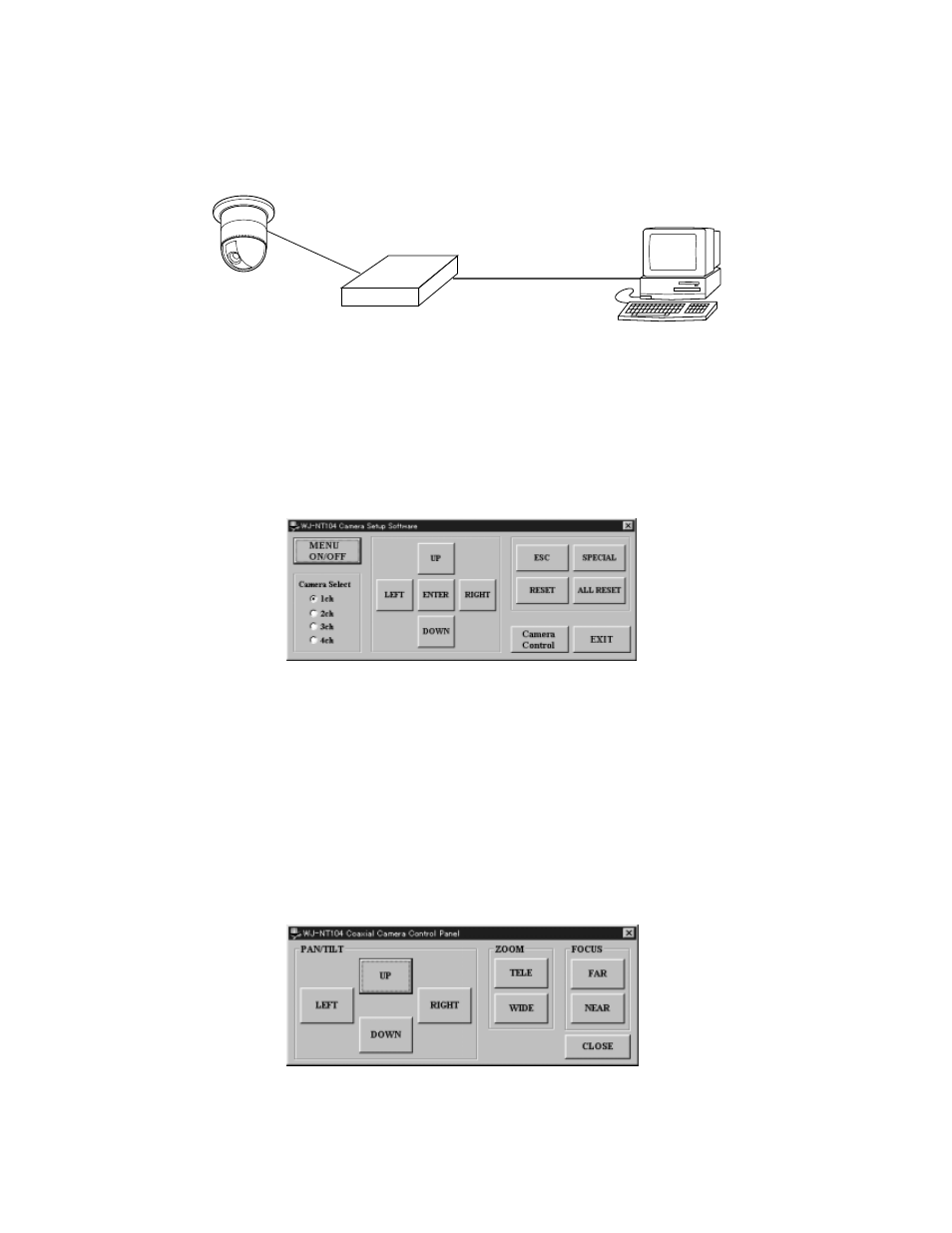

e Click the Start button, point to Programs and then WJ-NT104 Utilities . Click Camera Setup .
r Select a channel under Camera Select .
t Click the [MENU ON/OFF] button, to open the Menu.
Should it not appear, click the button repeatedly.
y Use [UP] , [DOWN] , [LEFT] , [RIGHT] , [ENTER] , and [ESC] buttons to select a menu and execute a selected menu item.
For menu operations and setup refer to the operation manual of the connected camera.
u The [SPECIAL] button is effective only when the cursor points to SPECIAL on the camera menu.
i When the [Camera Control] button is depressed, a panel for Coaxial Camera Control appears.
PAN/TILT, ZOOM, and FOCUS control are selectable only in the “position setting menu.”
o To exit from the setup, press the [EXIT] button.
!0 Return all switches on the MODE selector to OFF position and then press the RESET button on the front of the WJ-NT104.
This completes setup and return to the normal application mode.
