Panasonic WJ-NT104 User Manual

Page 20

background image

20

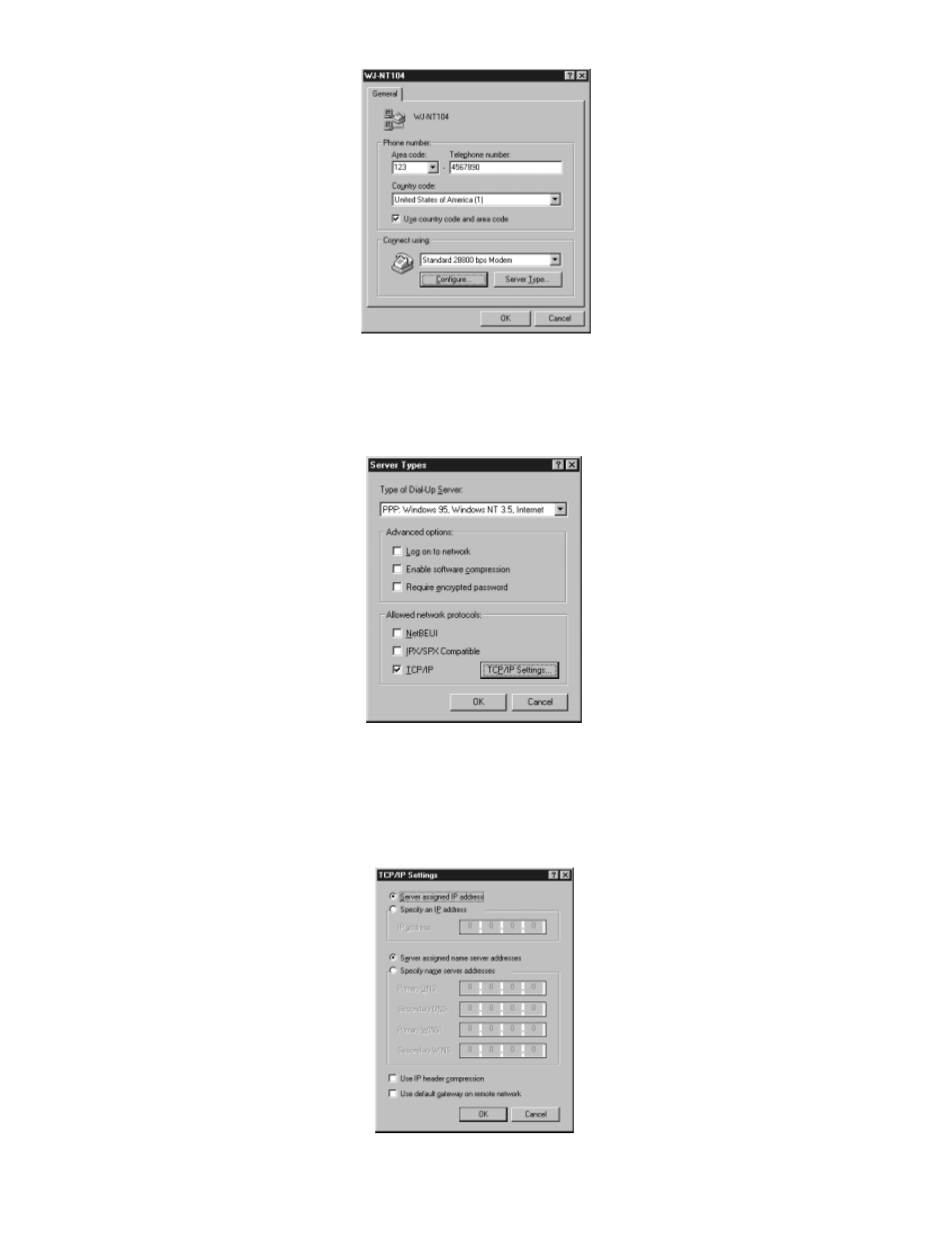

y Click the

[Server Type...]

button.

u For Type of Dial-up Server, select

PPP: Windows95, Windows NT 3.5, Internet

(for Windows95), or

PPP:

Windows95/98, Windows NT 4.0

,

Internet

(for Windows98).

i Remove all checks in the

Advanced options

field.

o Check

TCP/IP

in the

Allowed network protocols

field.

!0 Click the

[TCP/IP Settings....]

button to display the

TCP/IP Settings

dialog box.

!1 Check

Server assigned IP address

.

!2 Check

Server assigned name server addresses

.

!3 Remove checks from

User IP header compression

and

Use default gateway on remote network

.

!4 Click the

[OK]

button.

The screen returns to the

Server Types

dialog box. Click the

[OK]

button and click it again.
