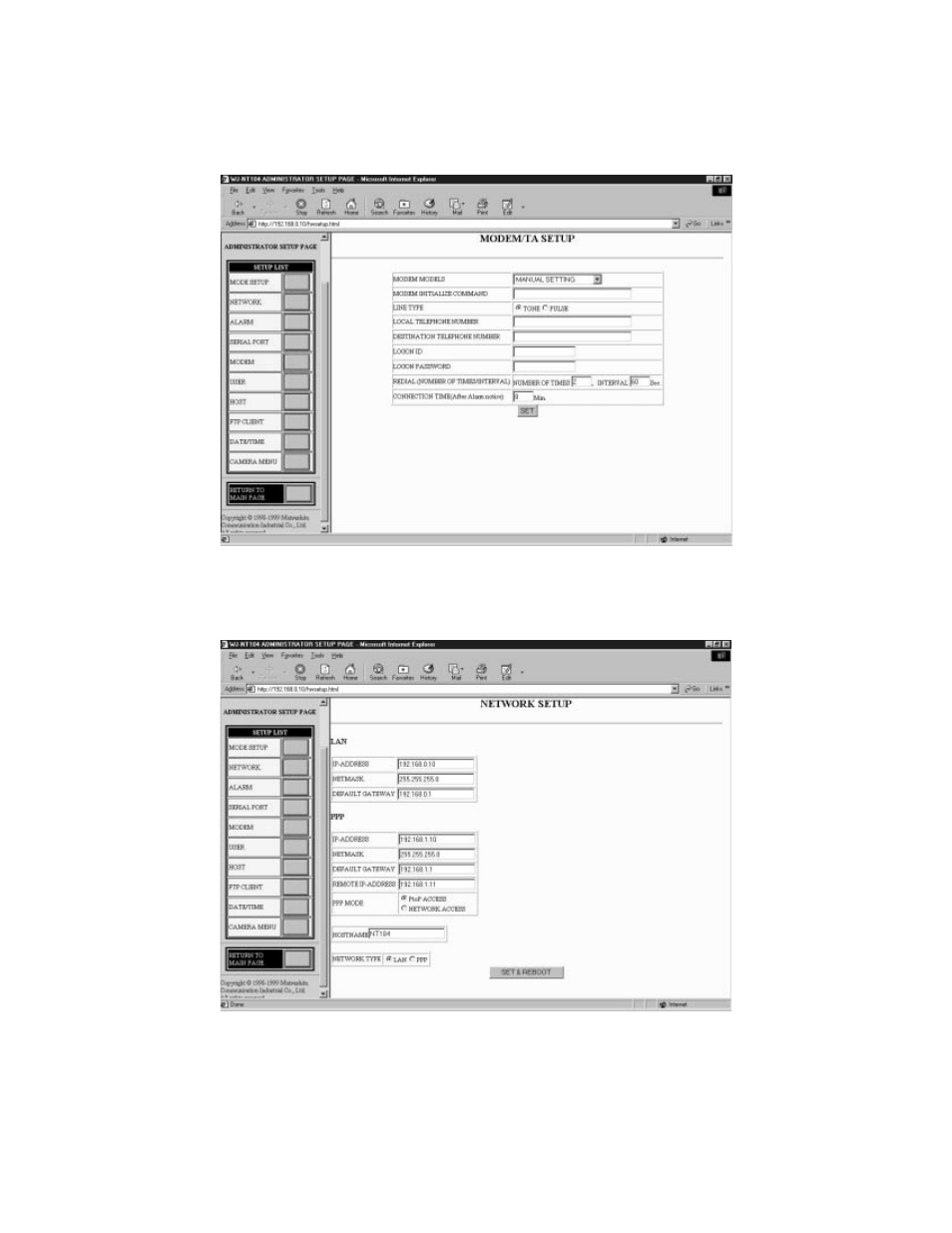

e On the

ADMINISTRATOR SETUP PAGE

, click the

[MODEM]

button to open the

MODEM/TA SETUP

dialog box.

Make the necessary entries for

MODEM MODELS, MODEM INITIALIZE COMMAND

(specify directly),

LINE TYPE,

LOCAL TELEPHONE NUMBER, DESTINATION TELEPHONE NUMBER, LOGON ID, LOGON PASSWORD

and

REDIAL

(NUMBER OF TIMES/INTERVAL)

r Click the

[SET]

button to save.

t On the

ADMINISTRATOR SETUP PAGE

, click the

[NETWORK]

button to open the

NETWORK SETUP

dialog box. For

NETWORK TYPE

, mark

PPP

y Click the

[SET & REBOOT]

button to save.

The WJ-NT104 is switched from LAN connection mode to PPP connection mode.

u Connect the RS-232C port on the rear panel of the WJ-NT104 to the RS-232C port on the modem/TA with a RS-232C

cable, and access the WJ-NT104 from a client PC via the modem/TA.
