59
EXTENSION FUNCTIONS

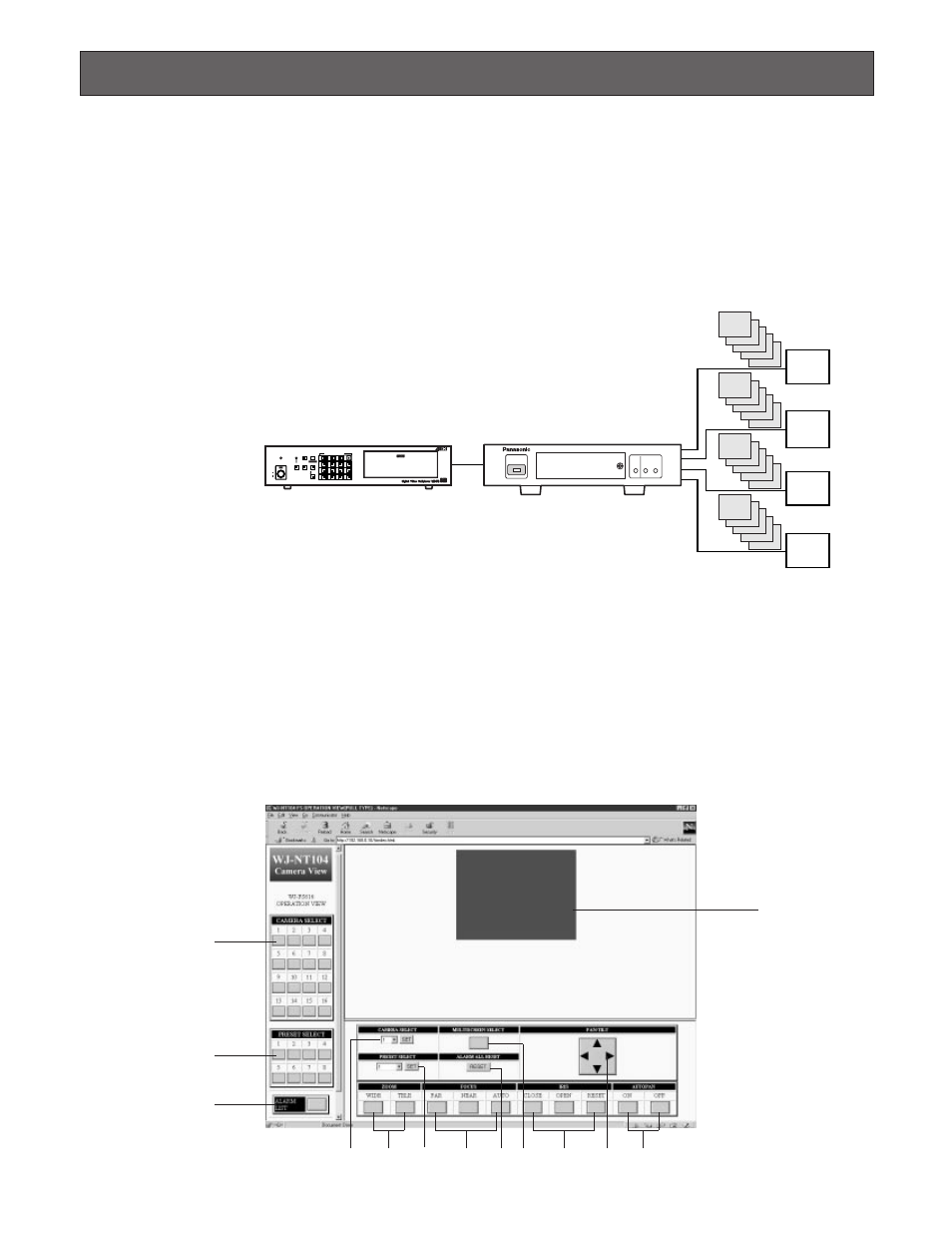

■ WJ-FS616 Video Multiplexer Control
● Connection
(1) Connect MULTISCREEN OUT on the rear of the WJ-FS616 to VIDEO IN 1 on the rear of the WJ-NT104.
(2) Connect the RS-232C ports of both units with a RS-232C cable.
• Fixed Input Selection Mode
In this mode, only images from the MULTISCREEN OUT connector of the Video Multiplexer are available.
LINK RCV XMT
OPERATE
Network Interface Unit WJ-NT104
1
1
1
1
PC
PC
PC
PC
WJ-NT104 (VIDEO IN1)
WJ-FS616
(MULTISCREEN OUT)
4
8
12
16
3
7
11
15
2
6
10
14
1
5
9
13
PUSH OPEN
16
POWER
LOCK
ON
OFF
ALARM MULTI SCREEN MULTISCREEN SELECT
RESET SPOT SEQUENCE
VCR
CAM
CAMERA/PRESET POSITION
● Setup
(1) On the ADMINISTRATOR SETUP PAGE, click the [SERIAL PORT] button to open the SERIAL PORT SETUP window.
For TYPE , select "WJ-FS616. Set the same communication parameters as for the WJ-FS616.
(2) On the ADMINISTRATOR SETUP PAGE, click the [MODE SETUP] button to open the MODE SETUP window.
(3) For VIDEO INPUT SELECTION MODE under OPERATION MODE SELECT , mark FIXED INPUT SELECTION MODE.
● Control Operation
On the Location bar, type http://192.168.0.10/fsindex.html to open the WJ-FS616 OPERATION VIEW window.
q
w
e
r o y !2
!3
!0 !1 i u t
RS-232C
DB25 DB9
2 ......................... 2
3 ......................... 3
6 ......................... 4
7 ......................... 5
20 ....................... 6
5 ......................... 7
4 ......................... 8
