Install The Brackets
23
Install The Brackets

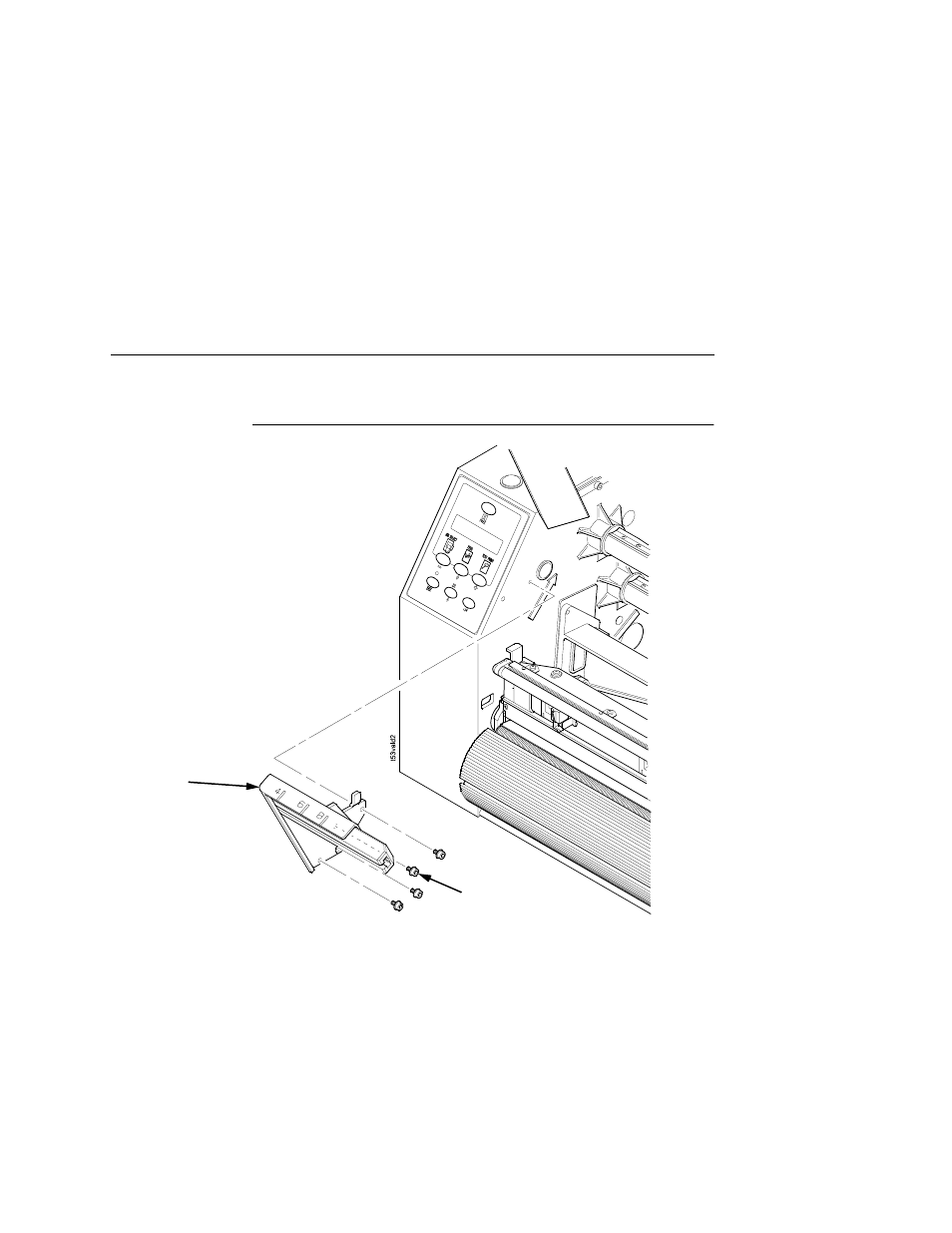

Figure 9. Installing the Lower Bracket
1.
Using the four M4x10mm screws, install the lower bracket as
shown in Figure 9.
Lower
Bracket
M4x10mm
Screw (4)
