Install the ferrite – Printronix T5000e Series User Manual
Page 16
Chapter 1
Installation
16
Install The Ferrite
IMPORTANT
If your printer has a factory installed validator, then the cable,
ferrite, wire saddle, and grommet have already been installed.
Go to “Install The Brackets” on page 23.
1.
Loosen the two captive screws securing the top of the frame
side cover. (Figure 2.)
2.
Tilt the frame side cover back from the top and lift it until the
tabs along the lower edge disengage from the slots in the
printer frame.

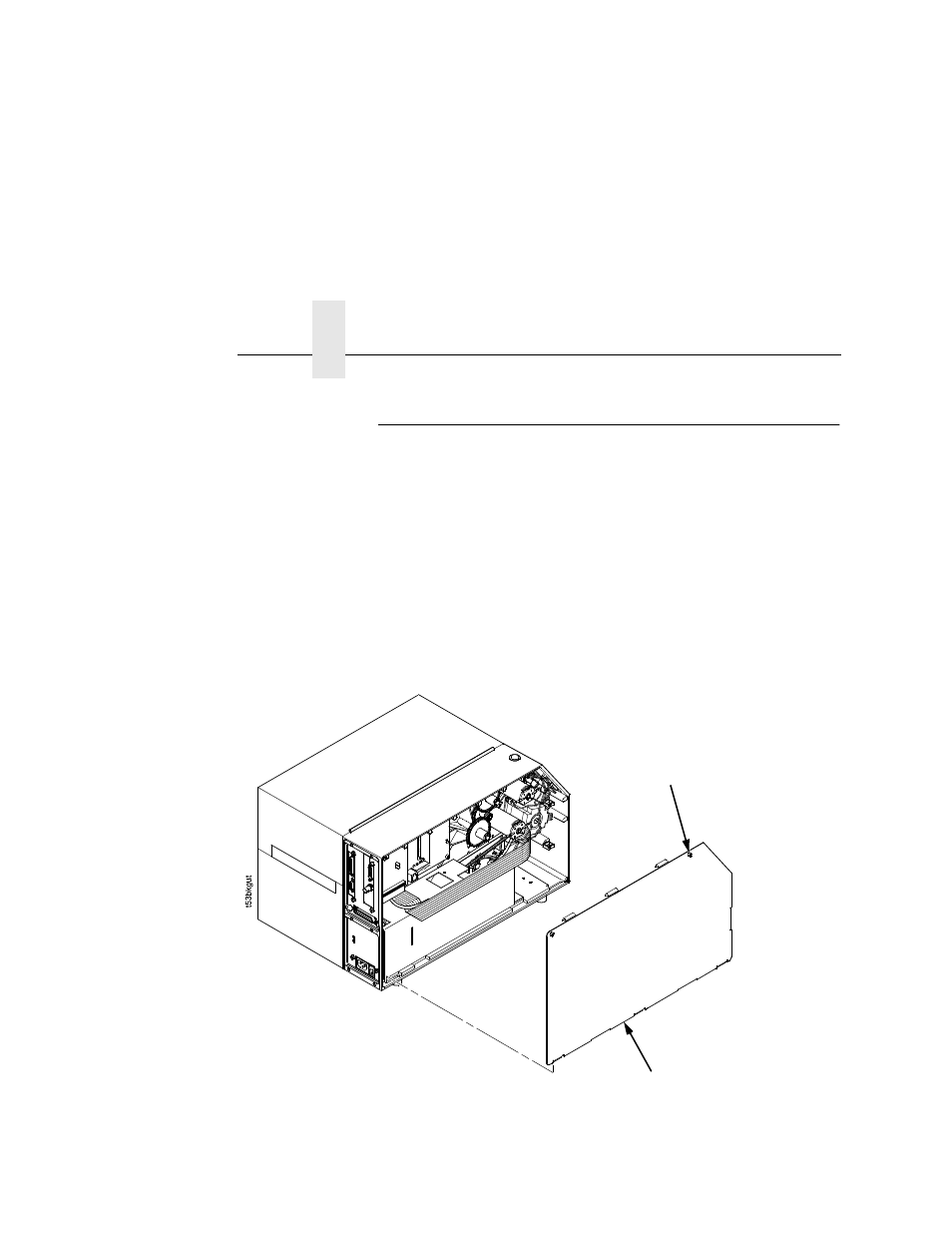

Figure 2. Removing the Frame Side Cover
Captive Screw (2)
Frame Side Cover
