Reinsert the media tray into the printer; use adhesive tape to
secure the tray to the printer.
If you have other media trays, repack them for shipping or
storage in their original shipping boxes.

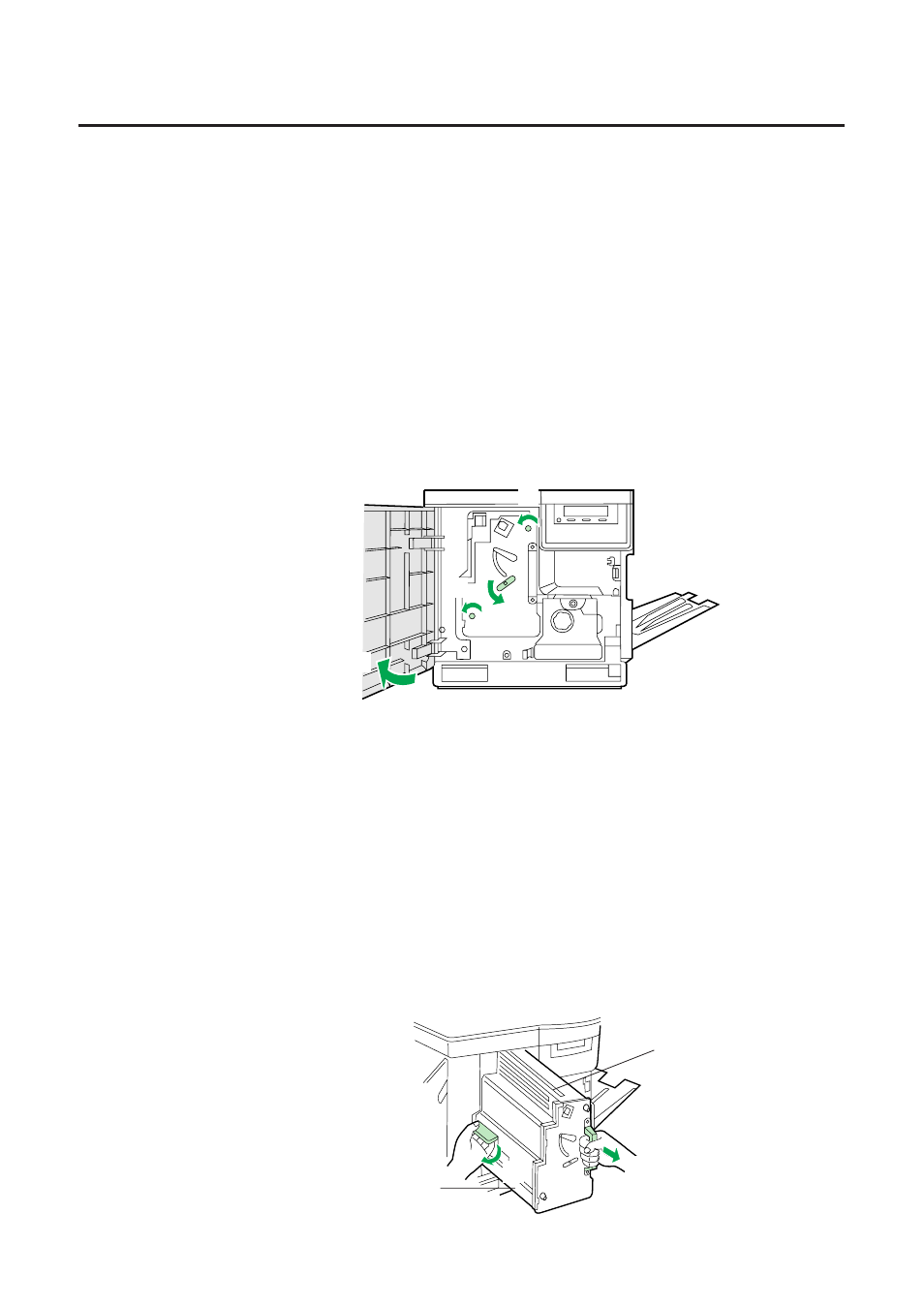

# Open the printer’s front door.
$ Loosen the two thumbscrews by turning them
counterclockwise.
% Turn the lower green lever 180° counterclockwise.
# Grasping the front green handle, slide the unit out until it
catches.
$ Lift up the green handle on the left. Pull the imaging unit out of
the printer.
Important:
B
Do not touch the green surface (the right side) or the black belt (the under side).
Finger prints may affect the print quality.
Safety Caution:
B The imaging unit weighs approximately 6.5 k g {14.3 lbs.}. Always use the
handles when lifting it.
4
6
7
5
Care and Maintenance
$
#
$
%
#
$
Green surface
Black belt
