Power input connector 16
Model 3088 Series User Manual 1 • General information
• Built-in testing and diagnostics
• RocketLink Plug ‘n’ Play for easy installations
• Interoperable with other Patton G.SHDSL modems
• Configurable as remote (CP) units
• Configurable as central (CO) units to operate back-to-back
• Front-panel status indicators
• CE marked
Power input connector
The RocketLink-G comes with an AC or DC power supply. (See section “Power and power supply specifica-
tions” on page 73.)
• The power connection to the NTU is a 2.5 mm barrel receptacle with the center conductor positive
(see
figure 2 ).
• Rated voltage: 5 VDC
Rated current: 1 A

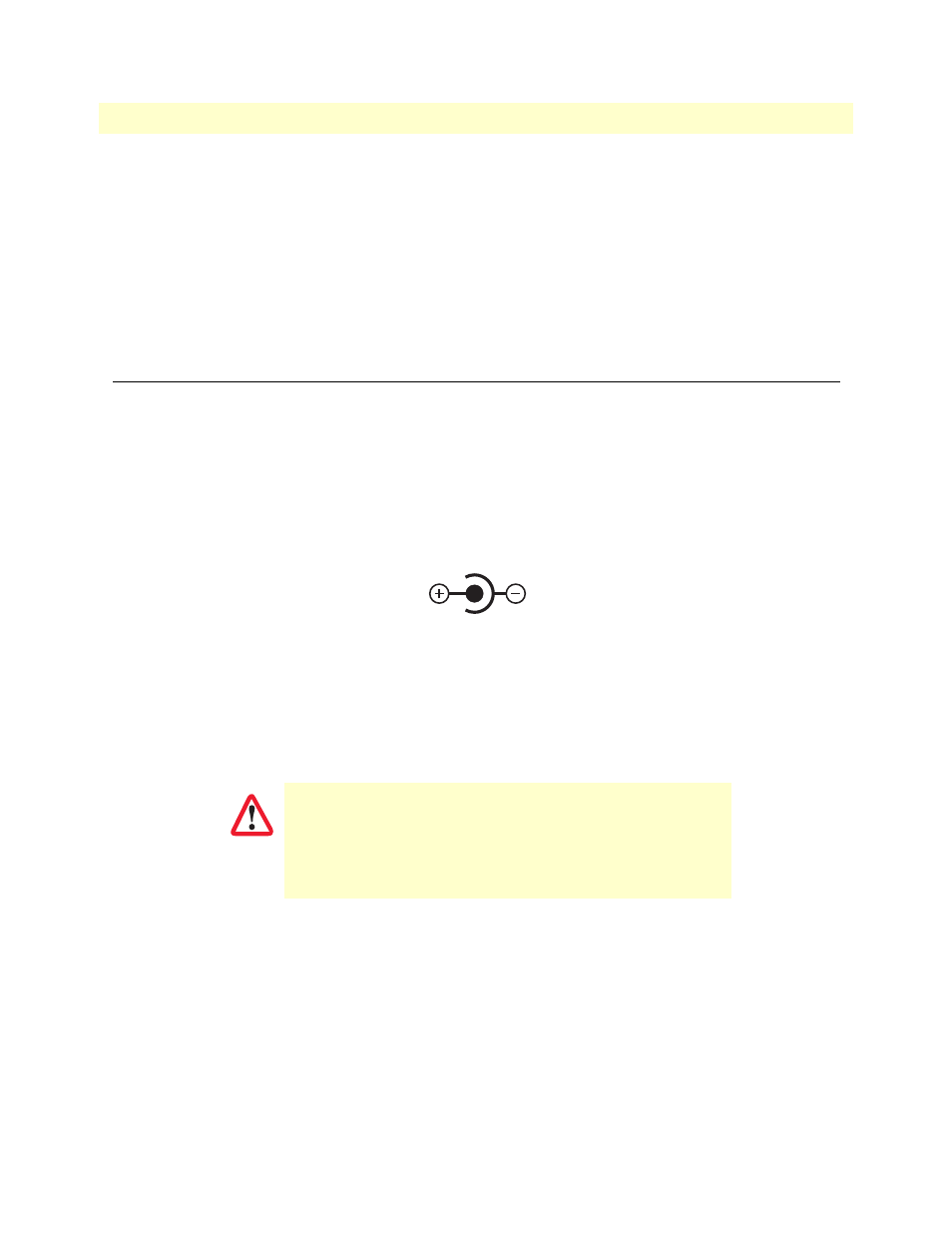

Figure 2. Power connection barrel receptacle 5 VDC diagram
External AC universal power supply
For additional specifications, see section “Power and power supply specifications” on page 73.
• Output from power supply: 5 VDC, 2 A
• Input to power supply: universal input 100–240 VAC 50/60 Hz 0.3A
The external AC adaptor shall be a listed limited power source
that incorporates a disconnect device and shall be positioned
within easy reach of the operator. Ensure that the AC power
cable meets all applicable standards for the country in which it is
to be installed, and that it is connected to a wall outlet which has
earth ground.
5 VDC
CAUTION
