EATON Powerware ® 9355 Parallel UPS (10/15 kVA) User’s Guide S 164201601 Rev A www.powerware.com 41
Chapter 8 Operation
This chapter contains information on how to use the Powerware 9355,
including front panel operation, UPS startup and shutdown, and
configuring the UPS for Extended Battery Modules (EBMs).
Control Panel Functions
The UPS has a four-button graphical LCD with backlight. It provides
useful information about the UPS itself, load status, events,
measurements, and settings (see Figure 33).
Power On Indicator (green)
On Battery Indicator (yellow)
Bypass Indicator (yellow)
Alarm Indicator (red)
Control Buttons
for the LCD Menu Options

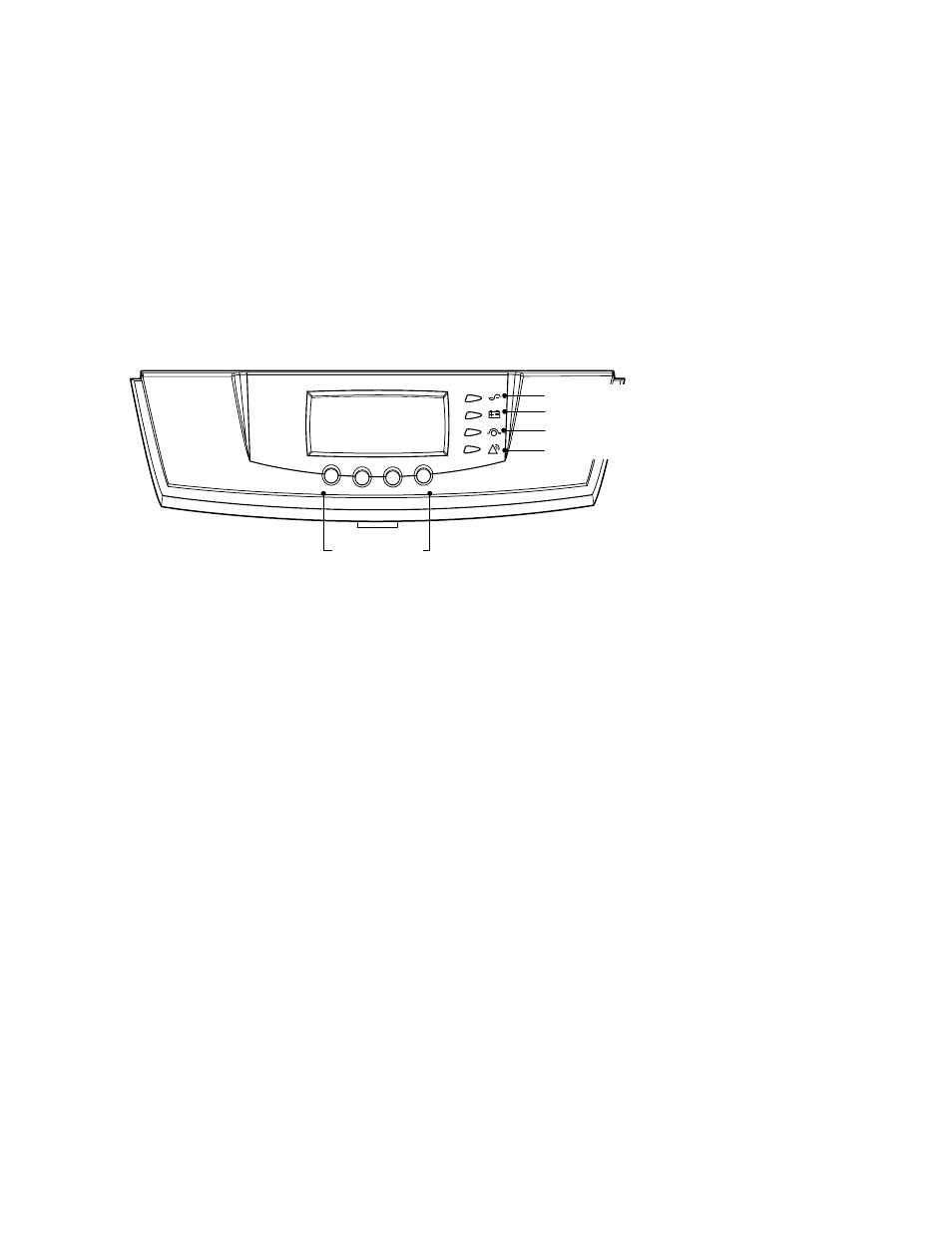

Figure 33. Powerware 9355 Control Panel
