TROUBLESHOOTING & REPAIR F-25 F-25
PIPELINER® 200
FLASHING THE FIELDS (continued)

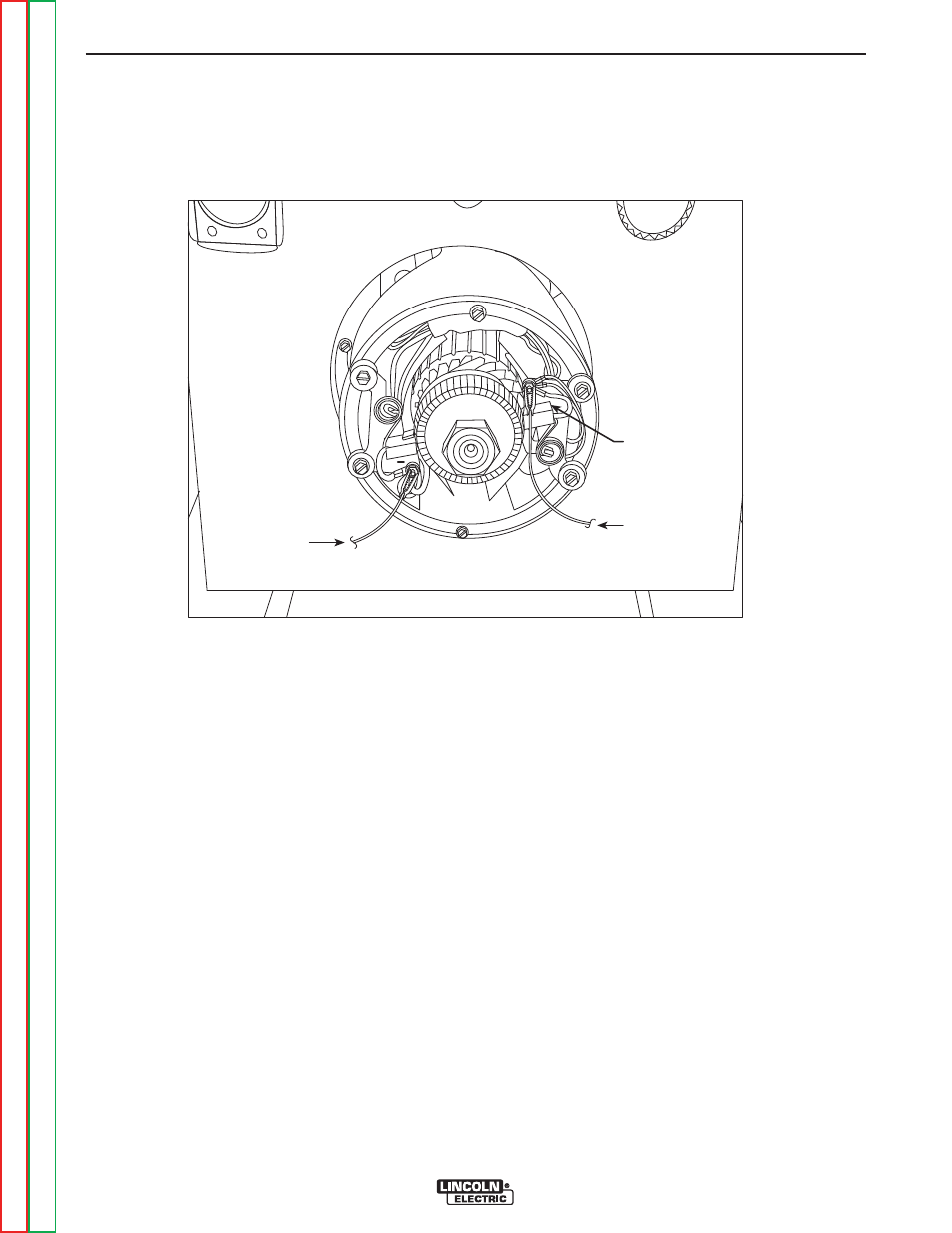

FIGURE F.8 - BRUSH HOLDER/BATTERY JUMPER CONNECTIONS
+
RAISE
EXCITER
BRUSH OFF
COMMUTATOR
TO POSITIVE
BATTERY
TERMINAL
TO NEGATIVE
BATTERY
TERMINAL
WARRANTY
3. Raise one exciter brush off the armature commuta-
tor.
4. Using the jumper leads and the 12VDC battery, first
attach the clip of one lead to the POSITIVE terminal
of the battery. Attach the other end of this same
lead to the right side brush holder. See Figure F.8.
5. Carefully attach one clip of the other lead to the
NEGATIVE terminal of the battery. Attach the other
end of the same lead to the left side brush holder for
approximately five seconds. Pull the lead away
quickly to minimize arcing. See Figure F.8.
6. Remove both leads from the brush holders and the
battery.
7. Install the brush removed in step 3.
8. Install the exciter cover using the 3/8” nut
driver.
9. Start the engine. The exciter should produce DC
output voltage.
