MAIN GENERATOR FRAME REMOVAL AND REPLACEMENT PROCEDURE
(CONTINUED)
TROUBLESHOOTING & REPAIR F-51 F-51
PIPELINER® 200

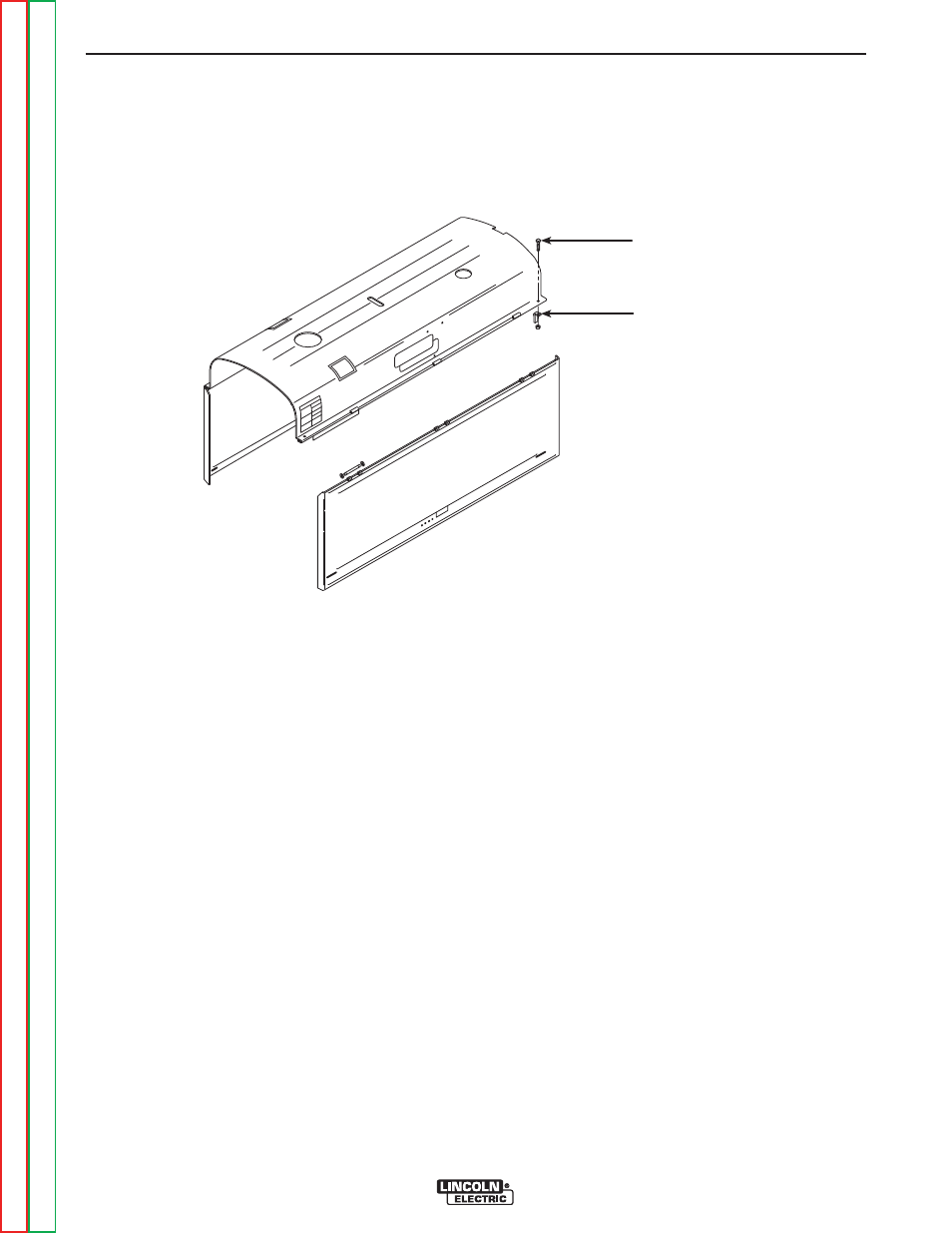

FIGURE F.17 – TOP AND DOORS ASSEMBLY DETAILS
BOLT / NUT (4)
'L' DOOR
HOOKS (4)
4. Using the 1/2” wrench, remove the four nuts
and bolts holding the case top and doors
assembly to the welder frame. Remove the
rubber gasket from the top. Carefully lift up
and remove the top and doors assembly.
Carefully remove the “L” shaped door hooks.
See Figure F.17.
